Productnummer: 3305230

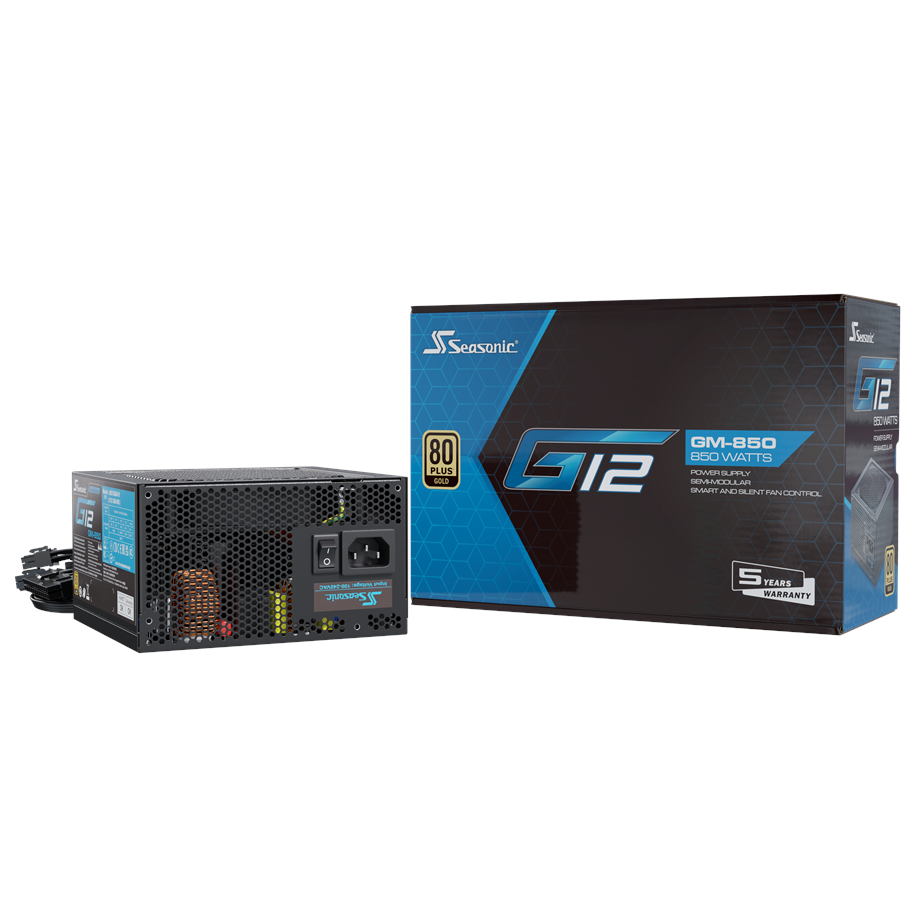

Seasonic G12 GM 850 Voeding - 850 Watt - 120 mm - ATX - 80 Plus 80 PLUS Gold

Voeding ( intern ), ATX standard: ATX12V 2.31, 80 plus Gold, 120mm koeling sleeve bearing lager, actieve PFC, kabels: 2 x 8 (6+2) pins voor grafische kaarten / 6 x 5 pins SATA / 3 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, semi modulair en dun kabels, kleur: zwart, 850 watt

101,54 € 83,92 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 7 - 8 werkdagen levertijd

The upgraded FOCUS GM series is the successor to the FOCUS Series, which became an instant the top seller in the power supply market. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.

Voedingskabel (intern)

Producent
Productnummer
3305230
Model
SSR-850FM
EAN
4711173878513
Naar de website van de producent
Productbeschrijving
Seasonic FOCUS GM 850 - voeding - 850 Watt
Type apparaat
Voeding - intern
Naleving van specificatie
ATX12V
80 PLUS-Certificatie
80 PLUS Gold
Input Voltage
100-240 Volt wisselstroom V
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
850 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 70 A
-12V - 0.3 A
+5VSB - 3 A
Uitgangsaansluitingen
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
6 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
8 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
1 x 4-PIN mini-stroomconnector
Modulair kabelbeheer
Ja
Koelingsysteem
Ventilator van 120 mm
Meegeleverde accessoires
Kabeltasje, kabelbinders
Afmetingen (BxDxH)
15 cm x 14 cm x 8.6 cm
Milieunormen
ENERGY STAR

Algemeen

Type apparaat
Voeding - intern
Naleving van specificatie
ATX12V
PSU-formaat
ATX

Voeding

Input Voltage
100-240 Volt wisselstroom V
Vereiste frequentie
50 - 60 Hz
Stroomuitgang Connector Details
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
6 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
8 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
1 x 4-PIN mini-stroomconnector
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
850 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 70 A
-12V - 0.3 A
+5VSB - 3 A
Efficiëntie
87% at 100% Load, 87% at 20% Load, 90% at 50% Load
Modulair kabelbeheer
Ja
80 PLUS-Certificatie
80 PLUS Gold

Diversen

Meegeleverde accessoires
Kabeltasje, kabelbinders
MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Koelingsysteem
Ventilator van 120 mm
Functies
Aan-/uitschakelaar, semi-modulair, Seasonic S2FC fan Control, gelijkstroom-gelijkstroomtechnologie, Multi-GPU Technologies Supported, vergulde aansluitpennen, vloeistofdynamische lager koelventilator, bescherming tegen te hoog voltage, voltagebeschermer, bescherming tegen te laag voltage, overbelastingsbescherming, bescherming tegen oververhitting, kortsluitingsbeveiliging
Conformiteitsnormen
cTUVus, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, Energy-Related Products (ErP) Lot 6, REACH

Informatie over Duurzaamheid

ENERGY STAR
Ja

Garantie van de fabrikant

Service & Support
Beperkte garantie - 7 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C

Afmetingen & gewicht

Breedte
15 cm
Diepte
14 cm
Hoogte
8.6 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
