Productnummer: 3305231

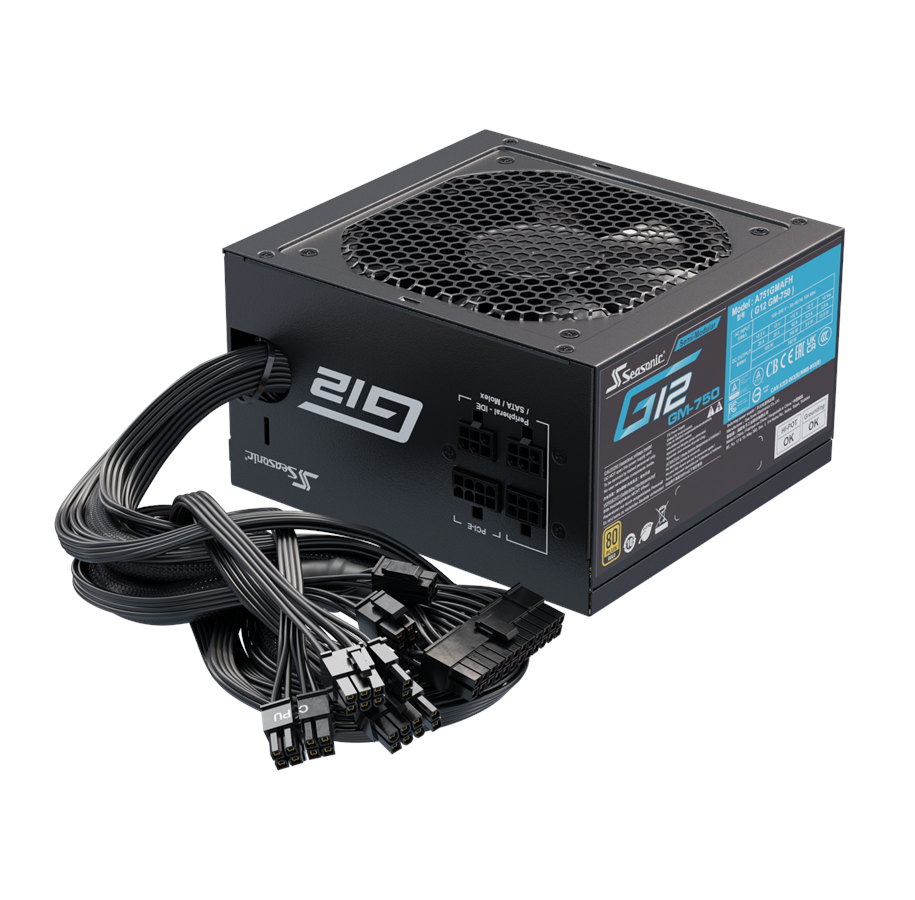

Seasonic G12 GM 750 Voeding - 750 Watt - 120 mm - ATX - 80 Plus 80 PLUS Gold

Voeding ( intern ), ATX standard: ATX12V 2.31, 80 plus Gold, 120mm koeling sleeve bearing lager, actieve PFC, kabels: 2 x 8 (6+2) pins voor grafische kaarten / 6 x 5 pins SATA / 3 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, semi modulair en dun kabels, kleur: zwart, 750 watt

79,21 € 65,46 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The FOCUS Gold power supplies are the ideal choice for people who do not want to break the bank, and yet seek the solid power supplies with great reliability and efficiency. The semi-modular cabling design provides the most basic connections while allowing flexibility on the peripherals. The high-quality 120 mm Fluid Dynamic Bearing (FDB) fans are very quiet and proven to be very stable over the long run. The 120 mm FDB fan inside is regulated by the Seasonic S2FC fan control, which optimizes the fan speed according to the needs of the system.

Voedingskabel (intern)

Producent
Productnummer
3305231
Model
SSR-750FM
EAN
4711173878506
Naar de website van de producent
Productbeschrijving
Seasonic FOCUS Gold SSR-750FM - voeding - 750 Watt
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V / EPS12V
80 PLUS-Certificatie
80 PLUS Gold
Input Voltage
100-240 Volt wisselstroom V
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
750 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 62 A
-12V - 0.3 A
+5VSB - 3 A
Uitgangsaansluitingen
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
4 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
8 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
1 x 4-PIN mini-stroomconnector
Modulair kabelbeheer
Ja
Koelingsysteem
Ventilator van 120 mm
Afmetingen (BxDxH)
15 cm x 14 cm x 8.6 cm
Milieunormen
ENERGY STAR

Algemeen

Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V / EPS12V
PSU-formaat
ATX

Voeding

Input Voltage
100-240 Volt wisselstroom V
Vereiste frequentie
50 - 60 Hz
Stroomuitgang Connector Details
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
4 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
8 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
1 x 4-PIN mini-stroomconnector
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
750 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 62 A
-12V - 0.3 A
+5VSB - 3 A
Efficiëntie
87% at 20% Load, 90% at 50% Load, 87% at 100% Load
Vermogensfactor (PF)
0.99
Modulair kabelbeheer
Ja
80 PLUS-Certificatie
80 PLUS Gold

Diversen

MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Koelingsysteem
Ventilator van 120 mm
Functies
Aan-/uitschakelaar, semi-modulair, vloeistofdynamische lager koelventilator, Smart & Silent Fan Control (S2FC), gelijkstroom-gelijkstroomtechnologie, vergulde aansluitpennen, bescherming tegen oververhitting, overbelastingsbescherming, voltagebeschermer, bescherming tegen te hoog voltage, bescherming tegen te laag voltage, kortsluitingsbeveiliging, solide condensators
Conformiteitsnormen
TUV, CB, cTUVus, BSMI, CCC, RoHS, WEEE, Energy-Related Products (ErP) Lot 6, REACH, EAC

Informatie over Duurzaamheid

ENERGY STAR
Ja

Garantie van de fabrikant

Service & Support
Beperkte garantie - 7 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C

Afmetingen & gewicht

Breedte
15 cm
Diepte
14 cm
Hoogte
8.6 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
