Productnummer: 3357637

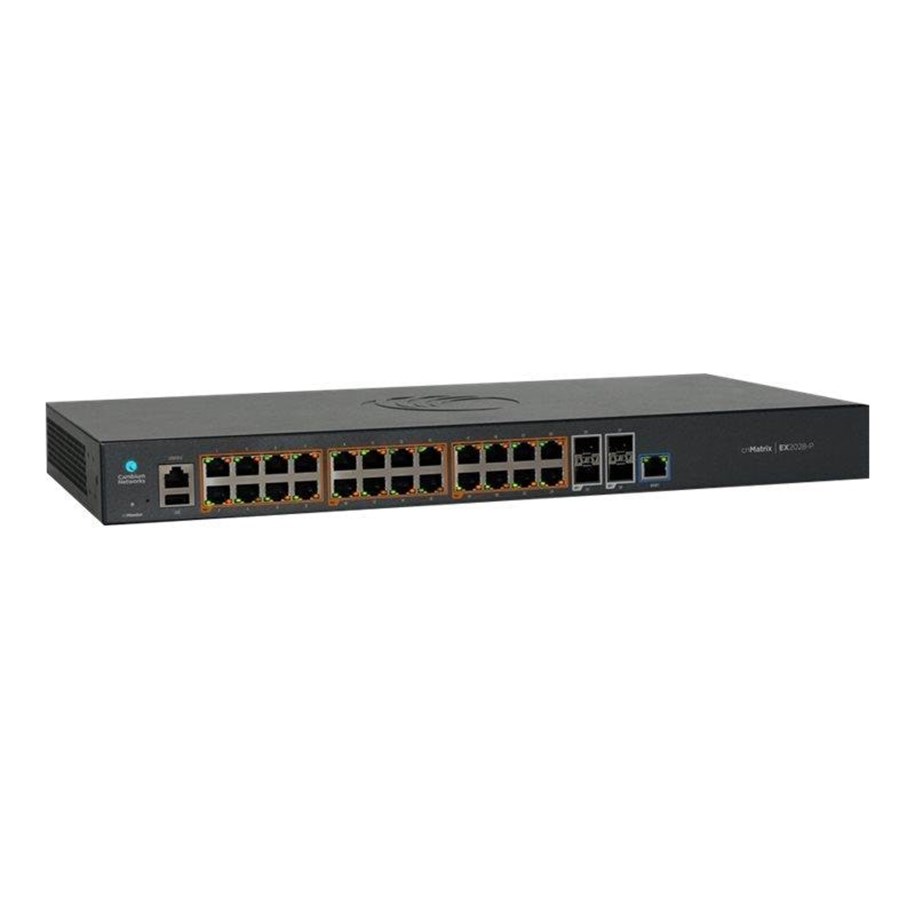

Cambium Networks cnMatrix EX2028
Switch, Beheerd, 24 x 10/100/1000 + 4 x SFP (mini-GBIC) (uplink), rack-uitvoering, 100, 240 V wisselstroom
1.324,74 €
1.094,83 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd
cnMatrix EX2028 switch simplifies network deployment and operation. When deployed with cnPilot WLAN access points and the cnMaestro management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2028.The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 series offers flexibility with SFP+ (10 Gbps) uplink ports.
Producent
Productnummer
3357637
Model
MX-EX2028XXA-E
Naar de website van de producent
Switch type
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Cloud-beheerd
Ja
Traffic-classificatie
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal moduleslots SPF+
4
Aantal USB 2.0-poorten
1
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Ja
Koperen ethernetbekabelingstechnologie
10GBASE-T
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, Private VLAN
Aantal VLANs
4000
MAC-adrestabel
16000 entries
Switchingcapaciteit
128 Gbit/s
Verzending snelheid
120 Mpps
Aantal wachtrijen
8
Statische route
Ja
Aantal statische routes
64
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
DHCP-functies
DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
IGMP-proxy
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SSH, SSH-2, SSL/TLS
MAC adres filtering
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Poortgebaseerde authenticatie
Wachtwoordbeveiliging
Ja
Authenticatie type
IEEE 802.1x
Algoritmen wachtrijplanning
SP, WRR+SP, Weighted Round Robin (WRR)
Multicast-ondersteuning
Ja
Beheerprotocollen
SNMP v1/v2/v3, Telnet
Rack-montage
Ja
Vormfactor
1U
Kleur van het product
Zwart
Reset button
Ja
LED-indicatoren
Ja
Type processor
Ja
Frequentie van processor
800 MHz
Intern geheugen
512 MB
Flash memory
128 MB
Fanloos
Ja
Mean time between failures (MTBF)
432283 uur
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
Stroomverbruik (typisch)
19,5 W
Power over Ethernet (PoE)
Nee
Breedte
440 mm
Diepte
209 mm
Hoogte
44 mm
Gewicht
2,77 kg
Code geharmoniseerd systeem (HS)
85176990
Beheerfuncties
Switch type
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Cloud-beheerd
Ja
Traffic-classificatie
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal moduleslots SPF+
4
Aantal USB 2.0-poorten
1
Netwerk
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Ja
Koperen ethernetbekabelingstechnologie
10GBASE-T
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, Private VLAN
Aantal VLANs
4000
Data-uitwisseling
MAC-adrestabel
16000 entries
Switchingcapaciteit
128 Gbit/s
Verzending snelheid
120 Mpps
Aantal wachtrijen
8
Statische route
Ja
Aantal statische routes
64
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Beveiliging
DHCP-functies
DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
IGMP-proxy
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SSH, SSH-2, SSL/TLS
MAC adres filtering
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Poortgebaseerde authenticatie
Wachtwoordbeveiliging
Ja
Authenticatie type
IEEE 802.1x
Algoritmen wachtrijplanning
SP, WRR+SP, Weighted Round Robin (WRR)
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Beheerprotocollen
SNMP v1/v2/v3, Telnet
Design
Rack-montage
Ja
Vormfactor
1U
Kleur van het product
Zwart
Reset button
Ja
LED-indicatoren
Ja
Prestatie
Type processor
Ja
Frequentie van processor
800 MHz
Intern geheugen
512 MB
Flash memory
128 MB
Fanloos
Ja
Mean time between failures (MTBF)
432283 uur
Energie
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
100 - 240 V
Stroomverbruik (typisch)
19,5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Gewicht en omvang
Breedte
440 mm
Diepte
209 mm
Hoogte
44 mm
Gewicht
2,77 kg
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
