Productnummer: 3362659

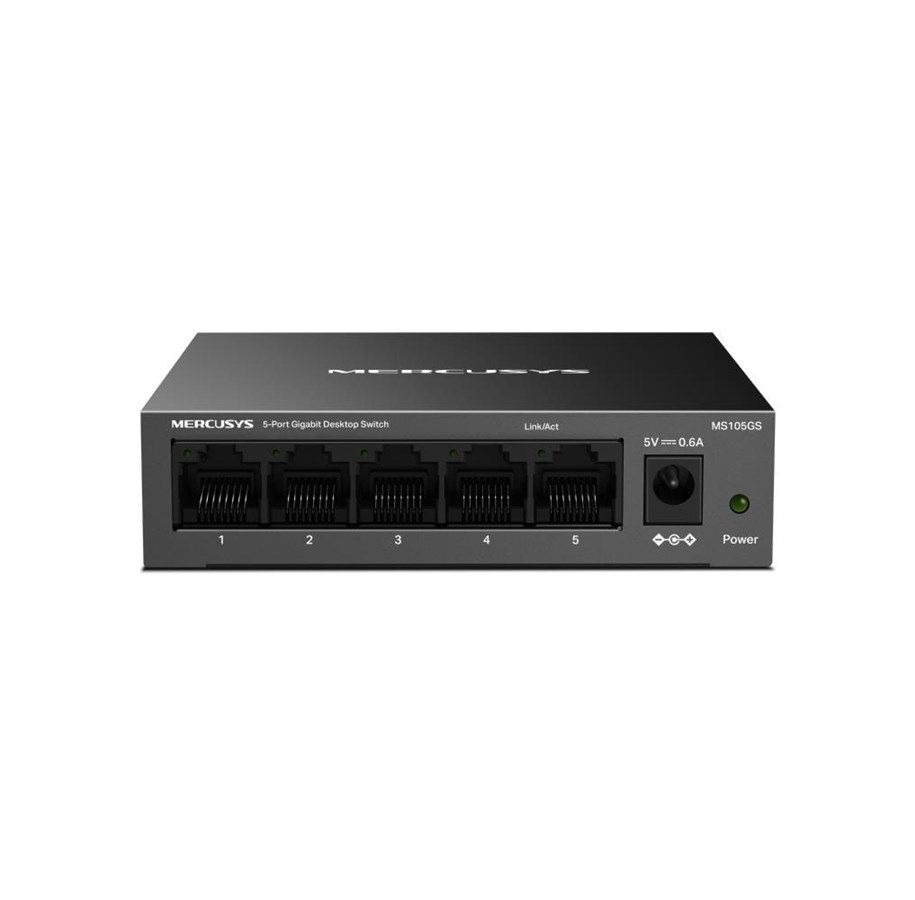

MERCUSYS MS105GS 5-Port Gigabit Desktop Switch
Mercusys MS105GS netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart
Op voorraad
10,79 €
8,92 € excl. BTW
Goedkoopste privé verzending 6,99 €
15+ stks
Op voorraad - 2-3 werkdagen levertijd
More Efficient Transmission
Longer Usage Life
5-Port Gigabit Desktop Switch
Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Durable, Silent, and Flexible
MS105GS‘s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or wall mount to meet your demand.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105GS provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105GS features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Longer Usage Life
5-Port Gigabit Desktop Switch
Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Durable, Silent, and Flexible
MS105GS‘s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or wall mount to meet your demand.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105GS provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105GS features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Producent
Productnummer
3362659
Model
MS105GS
EAN
6957939001315
Naar de website van de producent
Switch type
Unmanaged
Aantal basis-switching RJ-45 Ethernet-poorten
5
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Netstekker
DC-in ingang
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
Transmissie afstand (max)
0,1 km
MAC-adrestabel
2000 entries
Switchingcapaciteit
10 Gbit/s
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
0,125 MB
Rack-montage
Nee
Stapelbaar
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Ophangsysteem voor aan de muur
Ja
Fanloos
Ja
Stroombron
DC
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
220 V
AC-ingangsfrequentie
50/60 Hz
DC voltage input
5 V
Stroom
0.6 A
Vermogensverbruik (max)
3,614 W
Power over Ethernet (PoE)
Nee
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
12,331 BTU/h
Breedte
99,8 mm
Diepte
98 mm
Hoogte
25,1 mm
Meegeleverde kabels
AC
Snelstartgids
Ja
Certificering
CE, RoHS
Beheerfuncties
Switch type
Unmanaged
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
5
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Netstekker
DC-in ingang
Netwerk
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
Optische vezel
Transmissie afstand (max)
0,1 km
Data-uitwisseling
MAC-adrestabel
2000 entries
Switchingcapaciteit
10 Gbit/s
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
0,125 MB
Design
Rack-montage
Nee
Stapelbaar
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Ophangsysteem voor aan de muur
Ja
Prestatie
Fanloos
Ja
Energie
Stroombron
DC
Vermogenstoevoer inclusief
Ja
AC-ingangsspanning
220 V
AC-ingangsfrequentie
50/60 Hz
DC voltage input
5 V
Stroom
0.6 A
Vermogensverbruik (max)
3,614 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
12,331 BTU/h
Gewicht en omvang
Breedte
99,8 mm
Diepte
98 mm
Hoogte
25,1 mm
Inhoud van de verpakking
Meegeleverde kabels
AC
Snelstartgids
Ja
Certificaten
Certificering
CE, RoHS
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
