Productnummer: 3480943

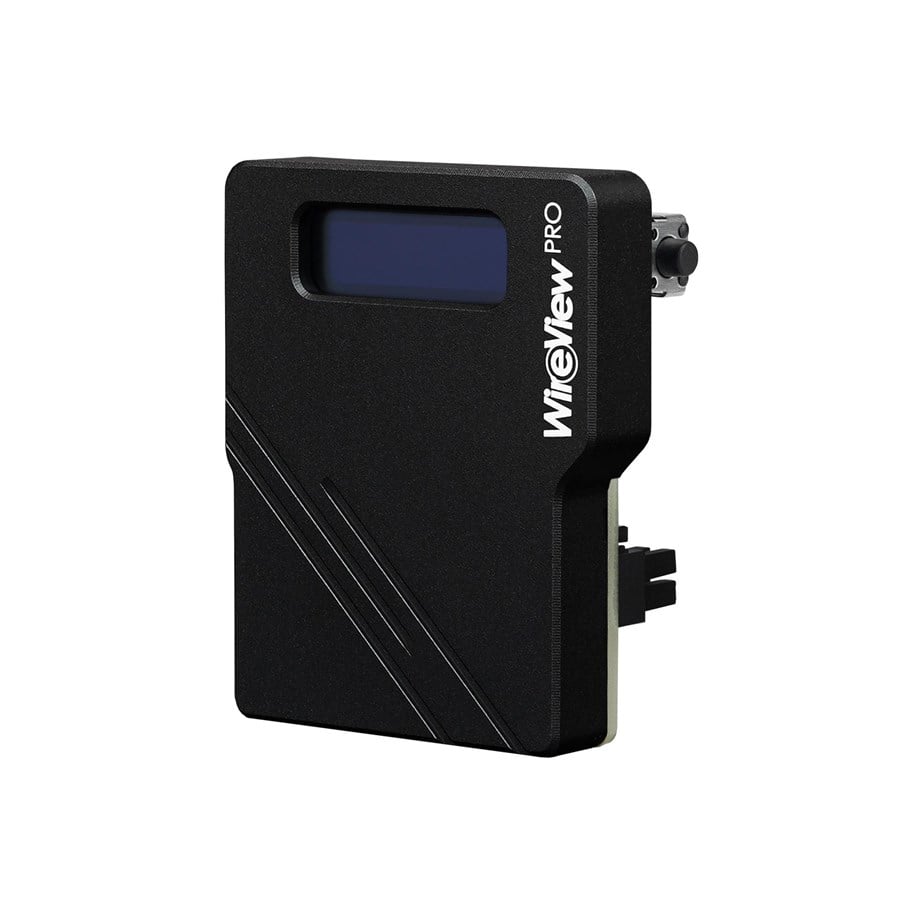

Thermal Grizzly WireView Pro GPU
GPU-stroomverbruiksmonitor die op de 12VHPWR-voedingsconnector wordt aangesloten, live metingen op een OLED-scherm toont en connector-detectie, temperatuursensoren en een hoorbare zoemerwaarschuwing toevoegt.
Thermal Grizzly WireView Pro GPU is een geavanceerd apparaat, ontwikkeld in samenwerking met Jon "elmor" Sandström, voor het meten en monitoren van het stroomverbruik van de grafische kaart via de voedingskabel, met een meetcyclus van 60 seconden voor snelle overzichten en de mogelijkheid om vermogenspiekken tijdens gebruik te volgen.
- Meet stroomverbruik via de 12VHPWR-connector (niet via de PCIe-slot van het moederbord)
- OLED-display met knop om tussen meerdere meetwaarden te schakelen
- Toont watt (W), volt (V), ampère (A), min/max-vermogen, 60-seconden gemiddelde (RAVG) en totale energie (Wh)
- Connector-detectie identificeert gespecificeerde kabels van 150W, 300W, 450W of 600W
- Twee ingebouwde temperatuursensoren bewaken connector-temperaturen
- Inclusief twee extra 10K NTC-temperatuursensoren met kabels van 5 cm en 20 cm
- Instelbare temperatuur- en stroomlimieten met hoorbaar alarm bij overschrijding van limieten of onjuiste/losse kabelverbinding
Duidelijke on-screen monitoring en sensor-gebaseerde waarschuwingen helpen je het GPU-vermogen en de connector-temperaturen bij te houden tijdens testen en dagelijks gebruik.
77,72 €
64,23 € excl. BTW
Goedkoopste privé verzending 4,99 €
Extern magazijn, 7 - 8 werkdagen levertijd
The WireView Pro GPU is an advanced version of the device for measuring and monitoring the power consumption of graphics cards. Developed in collaboration with Jon "elmor" Sandström, the WireView Pro GPU connects to the 12VHPWR power connector of the graphics card and is linked to the power supply through the power cable. Power consumption data is displayed on an OLED screen. The Pro version has been enhanced with connector detection and temperature sensors. An added buzzer provides an audible warning if the adjustable temperature or current limit is exceeded or if the cable is not correctly connected or if an incorrectly specified cable is used.
Power consumption measurement made easy
The WireView Pro GPU enables the measurement and monitoring of power consumption from graphics cards through the 12VHPWR power connector and records this data to determine power usage. This data can be used to calculate the power cost of a graphics card or to compare the power consumption with other graphics cards. A special 60-second measurement cycle provides a quick and convenient display of power consumption, making it especially useful for reviews. At the same time, it can be used to assess power consumption over a specific period or in certain applications. Additionally, it can detect power peaks that occur during the operation of current high-end graphics cards.
Greater safety with sensors and warning alerts
The Pro version has been upgraded with connector detection, temperature sensors, and an audible warning signal. The WireView Pro GPU’s connector detection identifies whether a 150-watt, 300-watt, 450-watt, or 600-watt specified cable is used. Please note that the WireView Pro GPU only measures power consumption through the power connector, not through the PCIe slot of the motherboard. If an incorrect cable is used or the cable is not properly connected, an audible warning will sound.
Precise temperature control
Two temperature sensors located on the board at the power connectors monitor the temperatures at the power connectors. Up to 600 watts of power can flow through the connectors, which can cause them and the board around them to heat up significantly. An audible alarm will sound if the temperature exceeds an adjustable limit. Two additional included temperature sensors (10K NTC) can be connected via cables. Two sensors with cable lengths of 5 cm and 20 cm are included. The alarm can also be triggered if the adjustable current limit (amps) is exceeded.
The WireView Pro GPU displays the measured values on the OLED screen. By pressing a button, you can toggle between displayed values. The following values can be shown:
- Current power consumption in watts (W)
- Current voltage in volts (V), current in amperes (A)
- Minimum and maximum power consumption in watts (W)
- Average power consumption over 60 seconds (RAVG in W) and total power consumption (E in Wh)
- Measured temperatures of individual temperature sensors (°C)
Power consumption measurement made easy
The WireView Pro GPU enables the measurement and monitoring of power consumption from graphics cards through the 12VHPWR power connector and records this data to determine power usage. This data can be used to calculate the power cost of a graphics card or to compare the power consumption with other graphics cards. A special 60-second measurement cycle provides a quick and convenient display of power consumption, making it especially useful for reviews. At the same time, it can be used to assess power consumption over a specific period or in certain applications. Additionally, it can detect power peaks that occur during the operation of current high-end graphics cards.
Greater safety with sensors and warning alerts
The Pro version has been upgraded with connector detection, temperature sensors, and an audible warning signal. The WireView Pro GPU’s connector detection identifies whether a 150-watt, 300-watt, 450-watt, or 600-watt specified cable is used. Please note that the WireView Pro GPU only measures power consumption through the power connector, not through the PCIe slot of the motherboard. If an incorrect cable is used or the cable is not properly connected, an audible warning will sound.
Precise temperature control
Two temperature sensors located on the board at the power connectors monitor the temperatures at the power connectors. Up to 600 watts of power can flow through the connectors, which can cause them and the board around them to heat up significantly. An audible alarm will sound if the temperature exceeds an adjustable limit. Two additional included temperature sensors (10K NTC) can be connected via cables. Two sensors with cable lengths of 5 cm and 20 cm are included. The alarm can also be triggered if the adjustable current limit (amps) is exceeded.
The WireView Pro GPU displays the measured values on the OLED screen. By pressing a button, you can toggle between displayed values. The following values can be shown:
- Current power consumption in watts (W)
- Current voltage in volts (V), current in amperes (A)
- Minimum and maximum power consumption in watts (W)
- Average power consumption over 60 seconds (RAVG in W) and total power consumption (E in Wh)
- Measured temperatures of individual temperature sensors (°C)
Producent
Productnummer
3480943
Model
TG-WV-90-P-H1N
EAN
4260711991349
