Productnummer: 3484692

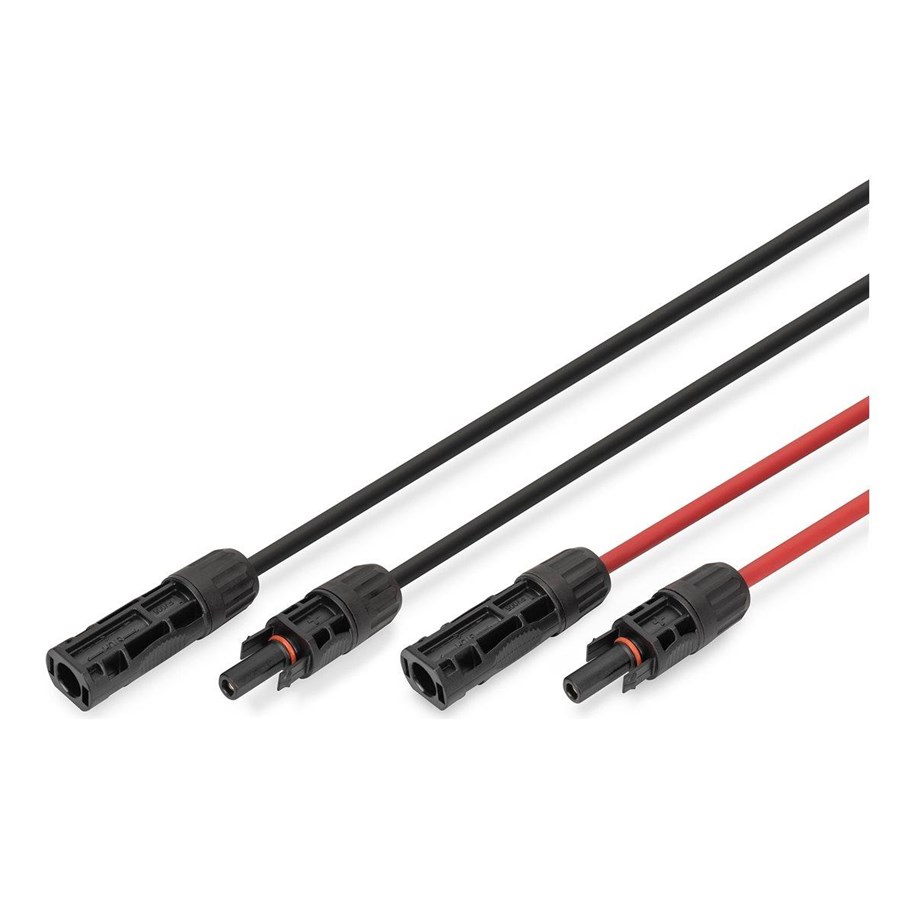

DIGITUS - solar cable extension - MC4 to MC4 - 3 m

Solar cable extension, MC4 (P) naar MC4 (R), IP65/IP68/IP67, 1500 V, 30 A, 3 m, halogeenvrij, binnen/buiten, zwart, rood (pak van 2)

24,03 € 19,86 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The DIGITUS solar cable extension is designed for outdoor use, ensuring reliable performance in various weather conditions. This cable features high durability with compliance to IP65/IP68/IP67 standards, allowing it to withstand moisture and dust. The MC4 connectors deliver a secure connection while creating a connection with ease, suitable for both indoor and outdoor applications. With resistance to UV radiation and a broad operational temperature range of -40°C to 85°C, this cable effectively caters to diverse environmental requirements.Constructed from flame-retardant and flexible materials, the cable ensures safety and endurance. Its toolless design simplifies installation and maintenance, ensuring efficiency for the user. The copper-plated connectors and corrosion protection contribute to a long-lasting connection for solar energy applications. With a rated voltage of 1500 V and a rated current of 30 A, this cable serves as a reliable component for installation in various solar systems.

Producent
Productnummer
3484692
Model
DK-SCEC66-0030
EAN
4016032501800
Naar de website van de producent
Productbeschrijving
DIGITUS - solar cable extension - MC4 naar MC4 - 3 m
Type
Solar cable extension
Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Functies
Halogeenvrij, binnen/buiten, vlamvertragend, flexibel, weerbestendig, gereedschapsloos type, uv-bestendig, -40°C to 85°C operating temperature, 6 mm² cable cross section, corrosion protection, 0.5 Ohm contact resistance, PPE/PA 66 plug, 4.4 mm insulation diameter, 3 mm conductor diameter, 500 MOhm insulation resistance, 7 kV spark test
Kabellengte
3 m
Connector
MC4 - stekker
Aansluiting (tweede uiteinde)
MC4 - stopcontact
Nominale spanning
1500 V
Nominale stroom
30 A
Conformiteitsnormen
IP65/IP68/IP67
Kleur
Zwart, rood

Algemeen

Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Type
Solar cable extension
Beschermingsmateriaal
Dwarsgekoppeld polyolefine
Materiaal van omhulsel
Cross-linked polyolefin (XLPO)
Nominale spanning
1500 V
Nominale stroom
30 A
Vlakke aansluiting
Koper
Functies
Halogeenvrij, binnen/buiten, vlamvertragend, flexibel, weerbestendig, gereedschapsloos type, uv-bestendig, -40°C to 85°C operating temperature, 6 mm² cable cross section, corrosion protection, 0.5 Ohm contact resistance, PPE/PA 66 plug, 4.4 mm insulation diameter, 3 mm conductor diameter, 500 MOhm insulation resistance, 7 kV spark test
Kabellengte
3 m
Diameter buitenkant
6.1 mm
Kleur
Zwart, rood
Gewicht
520 g

Connectiviteit

Connector
MC4 - stekker
Aansluiting (tweede uiteinde)
MC4 - stopcontact

Diversen

Conformiteitsnormen
IP65/IP68/IP67, UL 94 V-0, IP67, IP68, IP65, EN 60332-1-2, EN 50618, EN 62852:2015

Afmetingen & gewicht (transport)

Verzendbreedte
19 cm
Verzenddiepte
19 cm
Verzendhoogte
4.5 cm
Verzendgewicht
550 g

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
