Productnummer: 3484689

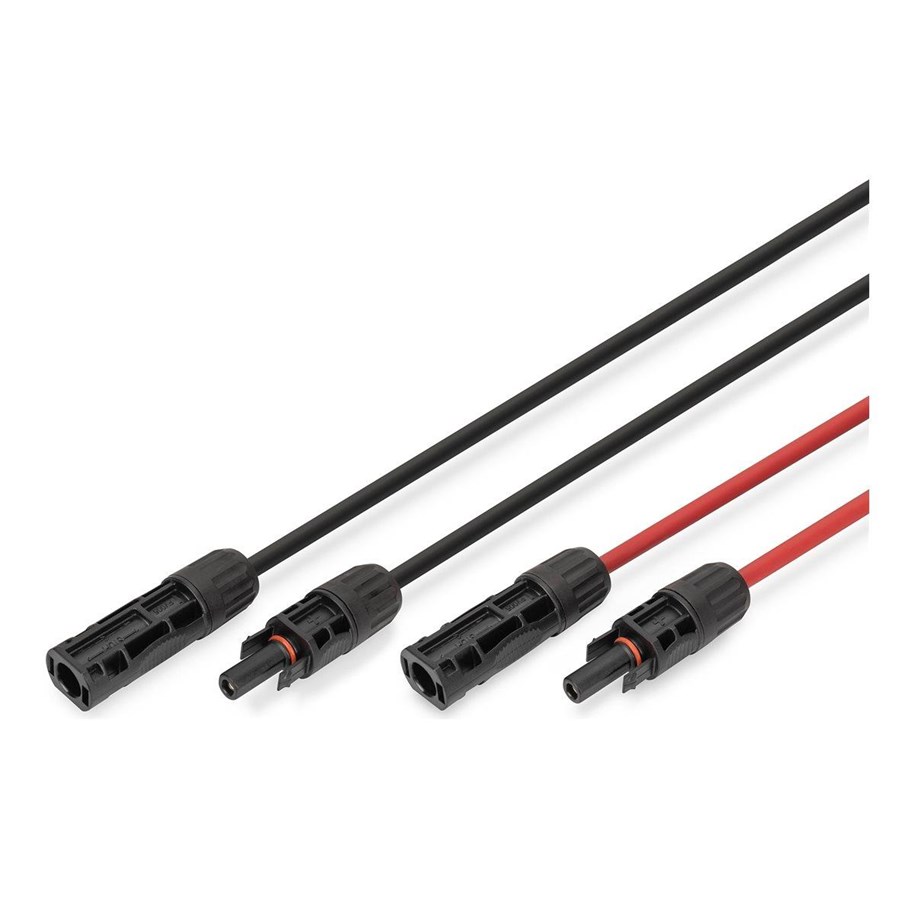

DIGITUS - solar cable extension - MC4 to MC4 - 3 m
Solar cable extension, MC4 (P) naar MC4 (R), IP65/IP68/IP67, 1500 V, 30 A, 3 m, halogeenvrij, binnen/buiten, zwart, rood (pak van 2)
20,58 €
17,01 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The DIGITUS solar cable extension is engineered for performance and durability. With compliance to IP65, IP67, and IP68 standards, this cable withstands harsh weather conditions, making it suitable for both indoor and outdoor use. The flexible design, coupled with flame-retardant and UV-resistant properties, ensures reliability in various applications.Featuring MC4 connectors, the cable is designed for easy, toolless connections. It operates under a temperature range from -40°C to 85°C, with an insulation resistance of 580 Mohm. The cross-linked polyolefin jacket provides corrosion protection while maintaining optimal functionality in solar energy systems.
Producent
Productnummer
3484689
Model
DK-SCEC64-0030
EAN
4016032501831
Naar de website van de producent
Productbeschrijving
DIGITUS - solar cable extension - MC4 naar MC4 - 3 m
Type
Solar cable extension
Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Functies
Halogeenvrij, binnen/buiten, vlamvertragend, flexibel, weerbestendig, gereedschapsloos type, uv-bestendig, 4 mm² cable cross section, -40°C to 85°C operating temperature, 580 MOhm insulation resistance, 0.509 Ohm contact resistance, 3.8 mm insulation diameter, 2.4 mm conductor diameter, corrosion protection, PPE/PA 66 plug, 7 kV spark test
Kabellengte
3 m
Connector
MC4 - stekker
Aansluiting (tweede uiteinde)
MC4 - stopcontact
Nominale spanning
1500 V
Nominale stroom
30 A
Conformiteitsnormen
IP65/IP68/IP67
Kleur
Zwart, rood
Algemeen
Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Type
Solar cable extension
Beschermingsmateriaal
Dwarsgekoppeld polyolefine
Materiaal van omhulsel
Cross-linked polyolefin (XLPO)
Nominale spanning
1500 V
Nominale stroom
30 A
Vlakke aansluiting
Koper
Functies
Halogeenvrij, binnen/buiten, vlamvertragend, flexibel, weerbestendig, gereedschapsloos type, uv-bestendig, 4 mm² cable cross section, -40°C to 85°C operating temperature, 580 MOhm insulation resistance, 0.509 Ohm contact resistance, 3.8 mm insulation diameter, 2.4 mm conductor diameter, corrosion protection, PPE/PA 66 plug, 7 kV spark test
Kabellengte
3 m
Diameter buitenkant
5.5 mm
Kleur
Zwart, rood
Gewicht
390 g
Connectiviteit
Connector
MC4 - stekker
Aansluiting (tweede uiteinde)
MC4 - stopcontact
Diversen
Conformiteitsnormen
IP65/IP68/IP67, UL 94 V-0, IP67, IP68, IP65, EN 60332-1-2, EN 50618, EN 62852:2015
Afmetingen & gewicht (transport)
Verzendbreedte
18.5 cm
Verzenddiepte
28.5 cm
Verzendhoogte
4.5 cm
Verzendgewicht
410 g
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
