Productnummer: 3484695

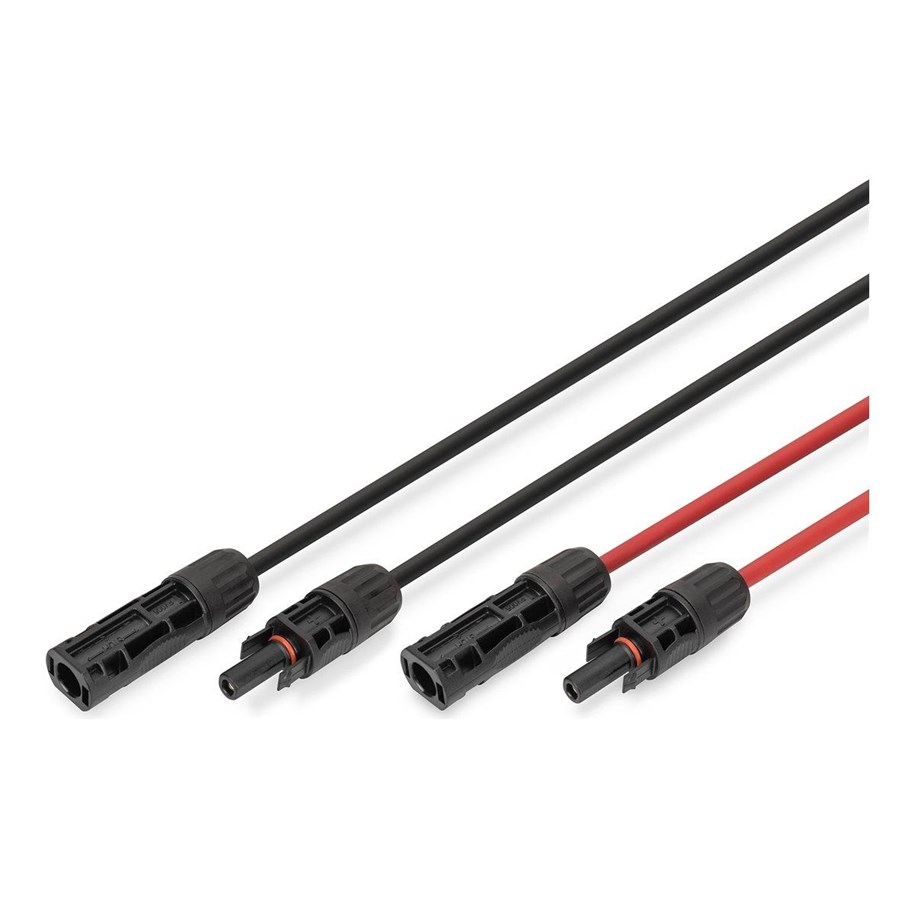

DIGITUS - solar cable extension - MC4 to MC4 - 15 m
Solar cable extension, MC4 (P) naar MC4 (R), IP65/IP68/IP67, 1500 V, 30 A, 15 m, halogeenvrij, binnen/buiten, zwart, rood (pak van 2)
87,79 €
72,55 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The DIGITUS DK-SCEC66-0150 solar cable extension is designed for indoor and outdoor applications. With its robust IP65/IP68/IP67 compliance, this cable provides protection against dust and water, making it suitable for various environments. The left and right MC4 connectors allow for easy connections, with a toolless feature that simplifies installation without additional tools.Constructed from cross-linked polyolefin, the cable is flame retardant, flexible, and UV-resistant. Operating effectively between -40°C to 85°C, it is suitable for a wide temperature range. With a 6 mm2 cable cross-section and a 0.5 ohm contact resistance, it maintains efficient power transfer, while its halogen-free composition ensures safety and environmental compliance. This is a choice for those seeking reliability and efficiency in solar power solutions.
Producent
Productnummer
3484695
Model
DK-SCEC66-0150
EAN
4016032501848
Naar de website van de producent
Productbeschrijving
DIGITUS - solar cable extension - MC4 naar MC4 - 15 m
Type
Solar cable extension
Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Functies
Halogeenvrij, binnen/buiten, vlamvertragend, flexibel, weerbestendig, gereedschapsloos type, uv-bestendig, -40°C to 85°C operating temperature, 6 mm² cable cross section, corrosion protection, 0.5 Ohm contact resistance, PPE/PA 66 plug, 4.4 mm insulation diameter, 3 mm conductor diameter, 500 MOhm insulation resistance, 7 kV spark test
Kabellengte
15 m
Connector
MC4 - stekker
Aansluiting (tweede uiteinde)
MC4 - stopcontact
Nominale spanning
1500 V
Nominale stroom
30 A
Conformiteitsnormen
IP65/IP68/IP67
Kleur
Zwart, rood
Algemeen
Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Type
Solar cable extension
Beschermingsmateriaal
Dwarsgekoppeld polyolefine
Materiaal van omhulsel
Cross-linked polyolefin (XLPO)
Nominale spanning
1500 V
Nominale stroom
30 A
Vlakke aansluiting
Koper
Functies
Halogeenvrij, binnen/buiten, vlamvertragend, flexibel, weerbestendig, gereedschapsloos type, uv-bestendig, -40°C to 85°C operating temperature, 6 mm² cable cross section, corrosion protection, 0.5 Ohm contact resistance, PPE/PA 66 plug, 4.4 mm insulation diameter, 3 mm conductor diameter, 500 MOhm insulation resistance, 7 kV spark test
Kabellengte
15 m
Diameter buitenkant
6.1 mm
Kleur
Zwart, rood
Gewicht
2.34 g
Connectiviteit
Connector
MC4 - stekker
Aansluiting (tweede uiteinde)
MC4 - stopcontact
Diversen
Conformiteitsnormen
IP65/IP68/IP67, UL 94 V-0, IP67, IP68, IP65, EN 60332-1-2, EN 50618, EN 62852:2015
Afmetingen & gewicht (transport)
Verzendbreedte
20 cm
Verzenddiepte
20 cm
Verzendhoogte
9.5 cm
Verzendgewicht
2.42 kg
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
