Productnummer: 3484691

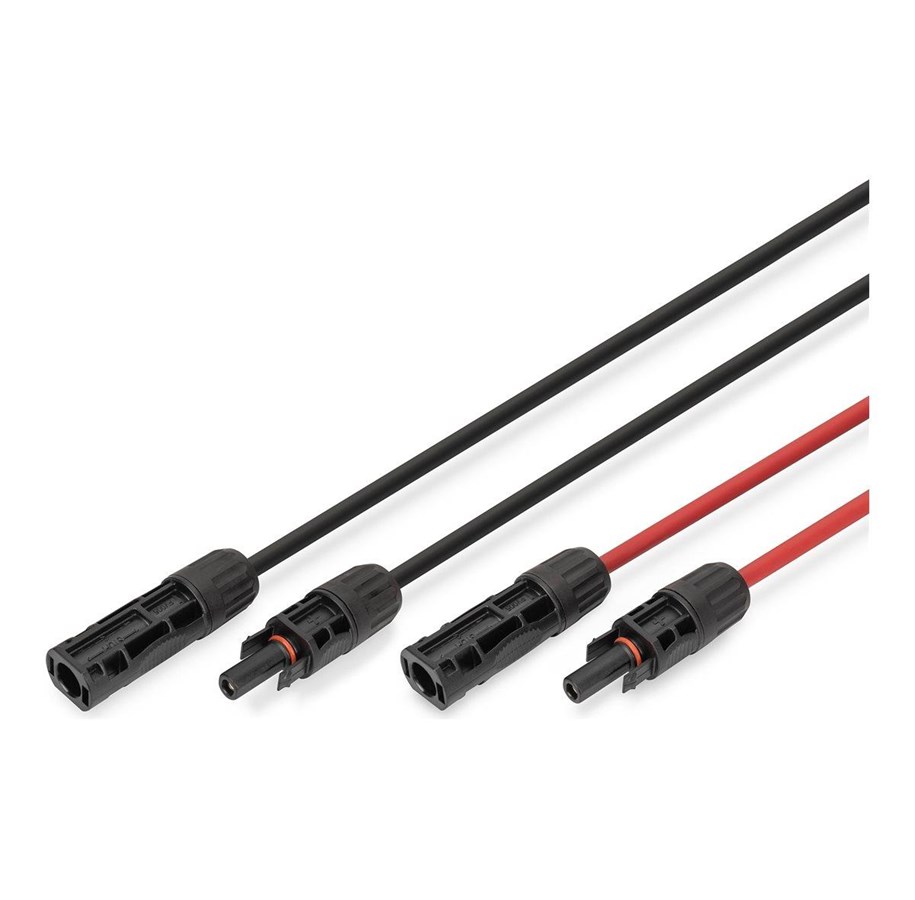

DIGITUS - solar cable extension - 1 m

Solar cable extension, MC4 (P) naar MC4 (R), IP65/IP68/IP67, 1500 V, 30 A, 1 m, halogeenvrij, binnen/buiten, zwart, rood (pak van 2)

13,92 € 11,50 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The DIGITUS solar cable extension provides reliable connectivity for solar energy systems, ensuring optimal performance in various environmental conditions. This cable is designed with durable MC4 connectors that offer secure electrical connections while maintaining flexibility and weatherproof capabilities. Made from cross-linked polyolefin, the cable is resistant to flames, UV radiation, and a broad range of temperatures from -40°C to 85°C, making it suitable for both indoor and outdoor applications.With its robust design, this solar cable extension meets multiple compliance standards, including IP65, IP67, and IP68, ensuring protection against various environmental factors. The halogen-free construction and corrosion protection features enhance its suitability for long-term use in solar installations. The cable is also equipped with a low contact resistance of 0.5 ohm, allowing for efficient energy transfer and minimizing power loss.

Producent
Productnummer
3484691
Model
DK-SCEC66-0010
EAN
4016032501794
Naar de website van de producent
Productbeschrijving
DIGITUS - solar cable extension - 1 m
Type
Solar cable extension
Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Functies
Halogeenvrij, binnen/buiten, vlamvertragend, flexibel, weerbestendig, gereedschapsloos type, uv-bestendig, -40°C to 85°C operating temperature, 6 mm² cable cross section, corrosion protection, 0.5 Ohm contact resistance, PPE/PA 66 plug, 4.4 mm insulation diameter, 3 mm conductor diameter, 500 MOhm insulation resistance, 7 kV spark test
Kabellengte
1 m
Aansluitingen
MC4 - stekker
Aansluitingen (tweede uiteinde)
MC4 - stopcontact
Nominale spanning
1500 V
Nominale stroom
30 A
Conformiteitsnormen
IP65/IP68/IP67
Kleur
Zwart, rood

Algemeen

Aantal in verpakking
2 (weergegeven specificaties zijn voor één artikel)
Type
Solar cable extension
Beschermingsmateriaal
Dwarsgekoppeld polyolefine
Materiaal van omhulsel
Cross-linked polyolefin (XLPO)
Nominale spanning
1500 V
Nominale stroom
30 A
Vlakke aansluiting
Koper
Functies
Halogeenvrij, binnen/buiten, vlamvertragend, flexibel, weerbestendig, gereedschapsloos type, uv-bestendig, -40°C to 85°C operating temperature, 6 mm² cable cross section, corrosion protection, 0.5 Ohm contact resistance, PPE/PA 66 plug, 4.4 mm insulation diameter, 3 mm conductor diameter, 500 MOhm insulation resistance, 7 kV spark test
Kabellengte
1 m
Diameter buitenkant
6.1 mm
Kleur
Zwart, rood
Gewicht
220 g

Connectiviteit

Aansluitingen
MC4 - stekker
Aansluitingen (tweede uiteinde)
MC4 - stopcontact

Diversen

Conformiteitsnormen
IP65/IP68/IP67, UL 94 V-0, IP67, IP68, IP65, EN 60332-1-2, EN 50618, EN 62852:2015

Afmetingen & gewicht (transport)

Verzendbreedte
21.5 cm
Verzenddiepte
18 cm
Verzendhoogte
3 cm
Verzendgewicht
230 g
