Productnummer: 3351283

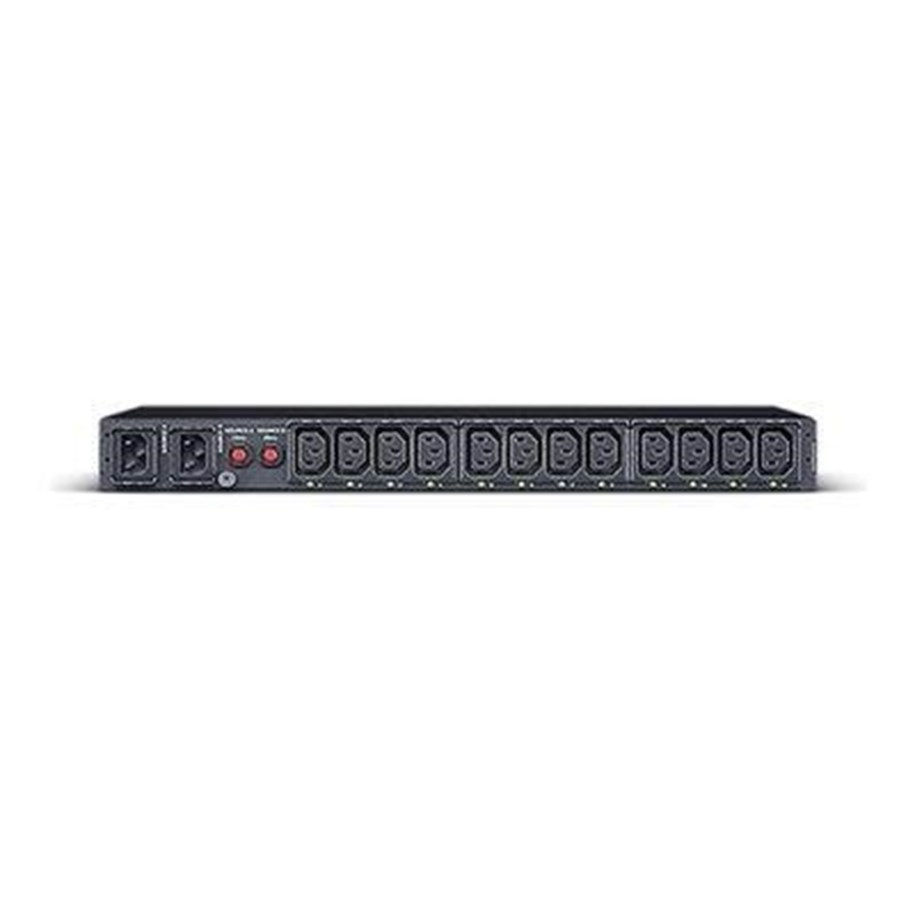

CyberPower Switched ATS PDU44004 - power distribution unit

Voedingsverdeeleenheid (rack-uitvoering), 200-240 V wisselstroom V, 1-fase, serial, Ethernet, input: 2 x IEC 60320 C14, uitgangen: 12 (12x IEC 60320 C13), 1U, 3.05 m kabel, zwart

744,31 € 615,13 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd

CyberPower PDU44004 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Producent
Productnummer
3351283
Model
PDU44004
EAN
4711027799803
Naar de website van de producent
Productbeschrijving
CyberPower Switched ATS PDU44004 - voedingsverdeeleenheid
Type apparaat
Voedingsverdeeleenheid - rack-uitvoering
Snoerlengte
3.05 m
Grootte rack
1U
Gewicht
3.7 kg
Bedradingsingang
1-fase
Input Voltage
200-240 V wisselstroom V
Invoerconnectors
2 x 2 x stroom IEC 60320 C14
Uitgangsaansluitingen
12 x power IEC 60320 C13
Netwerkgebruik
Serial, Ethernet
Protocol voor beheer op afstand
IPv4, IPv6, SNMP 1, SNMP 3, HTTP, HTTPS, DHCP, NTP, SMTP, SSH, Telnet, TFTP, RADIUS, LDAP
Meegeleverde accessoires
Kabelbehoudschaal, montagebeugels voor rek, schroeven, kabelbinders
Kleur
Zwart
Afmetingen (BxDxH)
43.3 cm x 21.5 cm x 4.4 cm

Algemeen

Type apparaat
Voedingsverdeeleenheid - rack-uitvoering
Hoogte (rekeenheden)
1U
Snoerlengte
3.05 m
Kleur
Zwart

Voeding

Input Voltage
200-240 V wisselstroom V
Bedradingsingang
1-fase
Vereiste frequentie
50/60 Hz
Invoerconnectors
2 x 2 x stroom IEC 60320 C14
Stroomuitgang Connector Details
12 x power IEC 60320 C13
Maximum elektrische stroom
12 A
Circuitbeveiliging
Stroomonderbreker

Netwerkgebruik

Remote Management Interface
Serial, Ethernet
Protocol voor beheer op afstand
IPv4, IPv6, SNMP 1, SNMP 3, HTTP, HTTPS, DHCP, NTP, SMTP, SSH, Telnet, TFTP, RADIUS, LDAP

Uitbreiding / Aansluiting

Interfaces
1 x serieel - RJ-45
1 x USB - 4 pin USB Type A
1 x cascading - RJ-45
1 x sensor - RJ-45
1 x beheer (Ethernet) - RJ-45

Diversen

Meegeleverde accessoires
Kabelbehoudschaal, montagebeugels voor rek, schroeven, kabelbinders
Kabels meegeleverd
2 x voedingskabel - extern - 3.05 m
Seriële kabel - extern
Rackmontagekit
Inclusief
Functies
LCD-scherm, Automatic Transfer Switch (ATS), firmware die kan worden opgewaardeerd, LED-indicators
Conformiteitsnormen
FCC klasse A-gecertificeerd, UL 62368, EN 55032 Class A, IEC 62368, RoHS

Software / Systeemvereisten

Software meegeleverd
PowerPanel Business, PowerPanel Enterprise

Garantie van de fabrikant

Service & Support
Beperkte garantie - 2 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
45 °C
Luchtvochtigheidsgraad bij gebruik
0 - 95% (niet condenserend)

Afmetingen & gewicht

Breedte
43.3 cm
Diepte
21.5 cm
Hoogte
4.4 cm
Gewicht
3.7 kg

Afmetingen & gewicht (transport)

Verzendbreedte
55 cm
Verzenddiepte
39.8 cm
Verzendhoogte
12.5 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
