Productnummer: 3176268

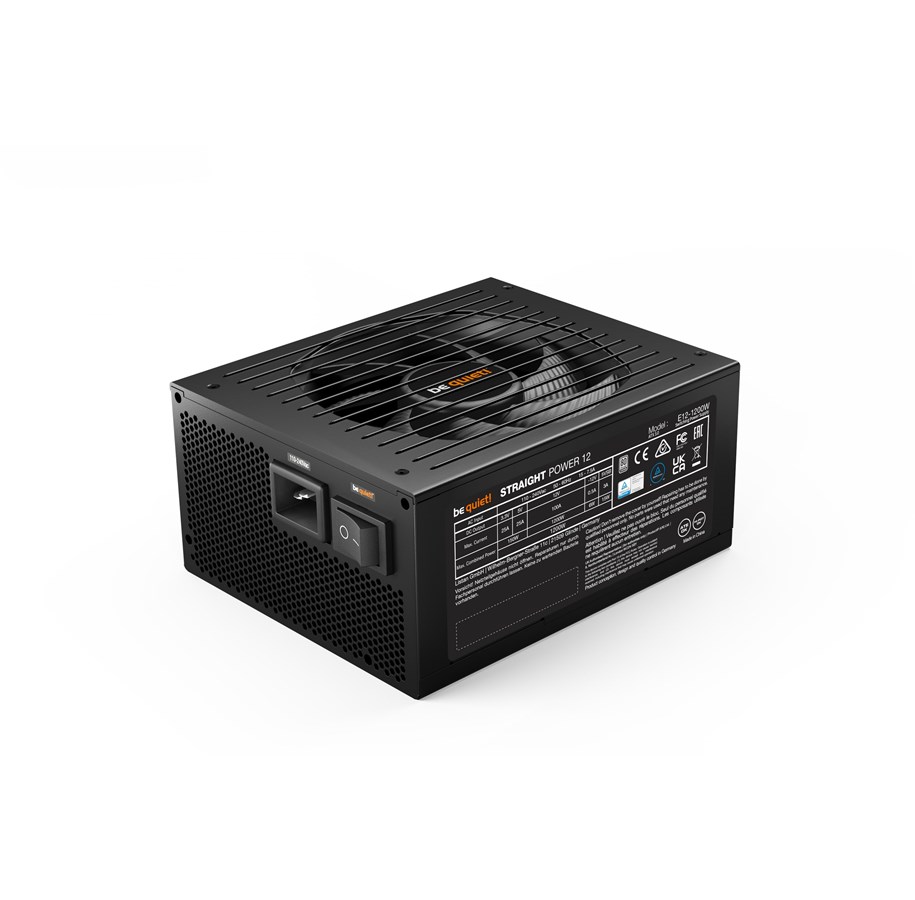

be quiet! Straight Power 12 Platinum 1200W Voeding - 1200 Watt - 135 mm - ATX 3.1 - 80 Plus 80 PLUS Platinum
Voeding ( intern ), ATX standard: ATX12V 3.0, 80 plus Platinum, 135mm koeling , actieve PFC, kabels: 4 x 8 (6+2) pins voor grafische kaarten / 2 x 12VHPWR pins voor grafische kaarten (PCI Express 5.0 ready) / 6 x 5 pins SATA / 1 x 24 (20+4) pins ATX, volledig modulair en sleeved kabels, kabels, kleur: zwart, 1200 watt
256,14 €
211,69 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
80 PLUS® PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1200W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.7%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Straight Power 12 1200W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1200W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1200W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.
FLAWLESS COOLING CONCEPT
For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1200W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1200W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1200W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
CONVENIENCE AND CONNECTIVITY
Maximum utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
80 PLUS® PLATINUM CERTIFIED
Highly efficient operation
Straight Power 12 1200W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.7%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.0 specifications
Straight Power 12 1200W is an ATX 3.0 PSU and comes with both native integration of 2 12VHPWR connectors for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1200W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1200W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.
FLAWLESS COOLING CONCEPT
For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1200W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1200W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1200W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
CONVENIENCE AND CONNECTIVITY
Maximum utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
Voedingskabel (intern)
-
DUTZO Sleeved voeding verlengkabel kit (v2) - Wit
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart / Oranje
Op voorraad - 2-3 werkdagen levertijd27,99 €
-
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart / Grijs
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Blauw
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Oranje
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart / Rood
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Rood
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Groen
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart / wit
Op voorraad - 2-3 werkdagen levertijd27,99 €
Producent
Productnummer
3176268
Model
BN339
EAN
4260052189443
Naar de website van de producent
Productbeschrijving
be quiet! Straight Power 12 - voeding - 1200 watt
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.0/ EPS12V 2.92
80 PLUS-Certificatie
80 PLUS Platinum
Gewicht
2.04 kg
Lokalisatie
Europa
Input Voltage
110-240 V wisselstroom V
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
1200 watt
Stroomafgifte
+3.3V - 25 A
+5V - 25 A
+12V - 100 A
-12V - 0.5 A
+5VSB - 3 A
+5V - 25 A
+12V - 100 A
-12V - 0.5 A
+5VSB - 3 A
Uitgangsaansluitingen
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins +12V met afneembaar 4 pinsdeel
1 x voeding 8 pins-EPS12V
2 x 12VHPWR
4 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
9 x 15 pins Serial ATA-voeding
2 x Parallel ATA
1 x voeding 8 pins +12V met afneembaar 4 pinsdeel
1 x voeding 8 pins-EPS12V
2 x 12VHPWR
4 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
9 x 15 pins Serial ATA-voeding
2 x Parallel ATA
Modulair kabelbeheer
Ja
Koelingsysteem
135 mm-ventilator
Meegeleverde accessoires
Kabelbinders, schroeven
Kleur
Zwart
Afmetingen (BxDxH)
15 cm x 18 cm x 8.6 cm
Milieunormen
ENERGY STAR
Algemeen
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.0/ EPS12V 2.92
PSU-formaat
ATX
Kleur
Zwart
Lokalisatie
Europa
Voeding
Input Voltage
110-240 V wisselstroom V
Vereiste frequentie
50 - 60 Hz
Stroomuitgang Connector Details
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins +12V met afneembaar 4 pinsdeel
1 x voeding 8 pins-EPS12V
2 x 12VHPWR
4 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
9 x 15 pins Serial ATA-voeding
2 x Parallel ATA
1 x voeding 8 pins +12V met afneembaar 4 pinsdeel
1 x voeding 8 pins-EPS12V
2 x 12VHPWR
4 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
9 x 15 pins Serial ATA-voeding
2 x Parallel ATA
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
1200 watt
Stroomafgifte
+3.3V - 25 A
+5V - 25 A
+12V - 100 A
-12V - 0.5 A
+5VSB - 3 A
+5V - 25 A
+12V - 100 A
-12V - 0.5 A
+5VSB - 3 A
Efficiëntie
65% at 2% Load (230 VAC), 89% at 10% Load (230 VAC), 93.1% at 20% Load (230 VAC), 93.7% at 50% Load (230 VAC), 92.4% at 100% Load (230 VAC)
Vermogensfactor (PF)
0.99
Modulair kabelbeheer
Ja
80 PLUS-Certificatie
80 PLUS Platinum
Diversen
Meegeleverde accessoires
Kabelbinders, schroeven
MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Koelingsysteem
135 mm-ventilator
Functies
Vloeistofdynamische lager koelventilator, condensator van hoge kwaliteit
Conformiteitsnormen
Triman, RoHS, WEEE, BSMI, CB, cTUVus, FCC, RCM, TUV, UKCA
Informatie over Duurzaamheid
ENERGY STAR
Ja
Garantie van de fabrikant
Service & Support
Beperkte garantie - 10 jaar
Omgevingsparameters
Max. gebruikstemperatuur
40 °C
Afmetingen & gewicht
Breedte
15 cm
Diepte
18 cm
Hoogte
8.6 cm
Gewicht
2.04 kg
Afmetingen & gewicht (transport)
Verzendbreedte
24.8 cm
Verzenddiepte
32.8 cm
Verzendhoogte
10.2 cm
Verzendgewicht
3.89 kg
