Productnummer: 3328039

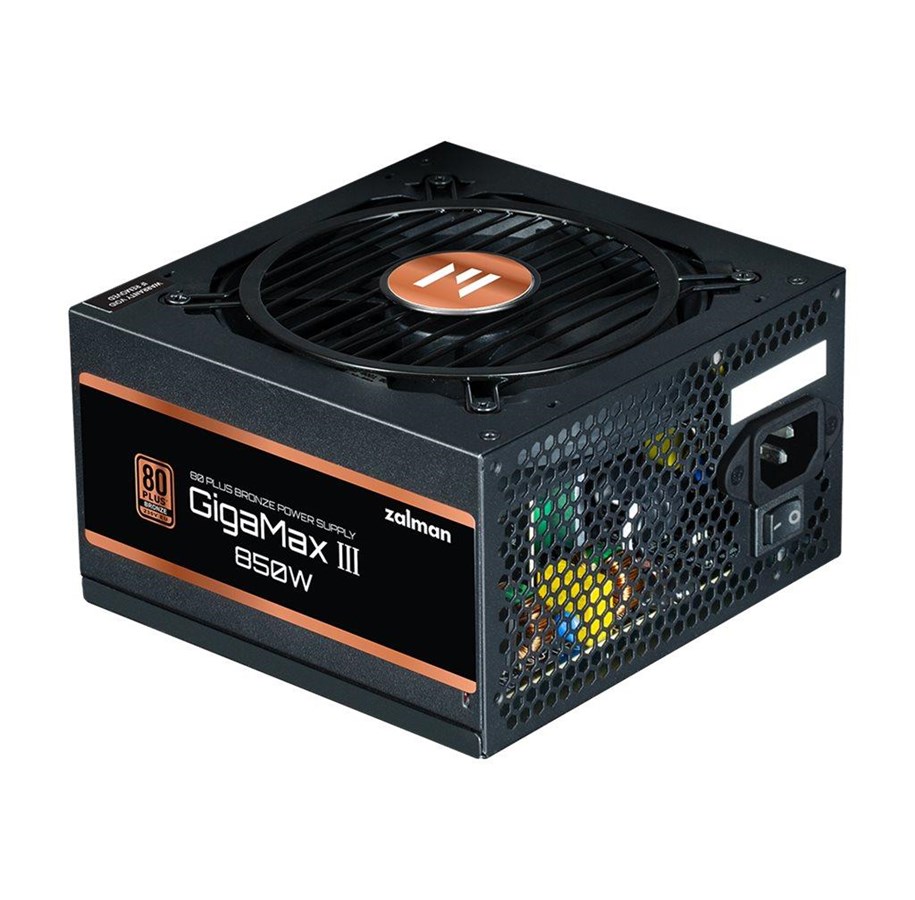

Zalman GigaMax III ZM850-GV3 Voeding - 850 Watt - 120 mm - ATX - 80 Plus 80 PLUS Bronze

Voeding (intern), ATX12V 3.0, 80 PLUS Bronze, 200-240 V wisselstroom V, 850 Watt, actieve PFC

74,37 € 61,46 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd

The ZALMAN GigaMax III ZM850-GV3 power supply is designed to meet the needs of demanding PC/Server configurations, offering 850 watts of power with an 80 PLUS Bronze certification for efficient energy use. It features a 120 mm cooling fan with fluid dynamic bearing technology, ensuring quiet operation and effective cooling. With active Power Factor Correction (PFC) and DC-DC technology, it provides stable and reliable power delivery. The power supply is equipped with comprehensive protection features, including overcurrent, overpower, overvoltage, short-circuit, thermal, and undervoltage protection, safeguarding your system under various conditions. Its compatibility with CrossFire and SLI configurations makes it a suitable choice for multi-GPU setups, while a variety of power output connectors ensure wide compatibility with different PC/Server configurations. Whether you're building a new system or upgrading an existing one, the ZALMAN GigaMax III ZM850-GV3 offers the performance and reliability you need.

Voedingskabel (intern)

Producent
Productnummer
3328039
Model
ZM850-GV3
EAN
8809213765704
Naar de website van de producent
Productbeschrijving
ZALMAN GigaMax III ZM850-GV3 - voeding - 850 Watt
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.0
80 PLUS-Certificatie
80 PLUS Bronze
Gewicht
1.8 kg
Input Voltage
200-240 V wisselstroom V
Output Voltage
+3.3, +5, ±12 V, -12V, +5Vsb V
Stroomcapaciteit
850 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 70.83 A
-12V - 0.3 A
+5VSB - 3 A
Uitgangsaansluitingen
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins +12V met afneembaar 4 pinsdeel
2 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
5 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
1 x 4-PIN mini-stroomconnector
Koelingsysteem
Ventilator van 120 mm
Afmetingen (BxDxH)
15 cm x 14 cm x 8.6 cm

Algemeen

Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.0
PSU-formaat
ATX

Voeding

Input Voltage
200-240 V wisselstroom V
Vereiste frequentie
50 - 60 Hz
Stroomuitgang Connector Details
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins +12V met afneembaar 4 pinsdeel
2 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
5 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
1 x 4-PIN mini-stroomconnector
Output Voltage
+3.3, +5, ±12 V, -12V, +5Vsb V
Stroomcapaciteit
850 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 70.83 A
-12V - 0.3 A
+5VSB - 3 A
Efficiëntie
88% (230VAC)
80 PLUS-Certificatie
80 PLUS Bronze

Diversen

MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Koelingsysteem
Ventilator van 120 mm
Functies
Overbelastingsbescherming, voltagebeschermer, bescherming tegen te hoog voltage, gereed voor SLI, CrossFire gereed, bescherming tegen te laag voltage, kortsluitingsbeveiliging, thermische bescherming, gelijkstroom-gelijkstroomtechnologie, vloeistofdynamische lager koelventilator, niet-modulair
Conformiteitsnormen
CB, RoHS, KC, EAC, RCM

Garantie van de fabrikant

Service & Support
Beperkte garantie - 5 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C

Afmetingen & gewicht

Breedte
15 cm
Diepte
14 cm
Hoogte
8.6 cm
Gewicht
1.8 kg
