Productnummer: 3510884

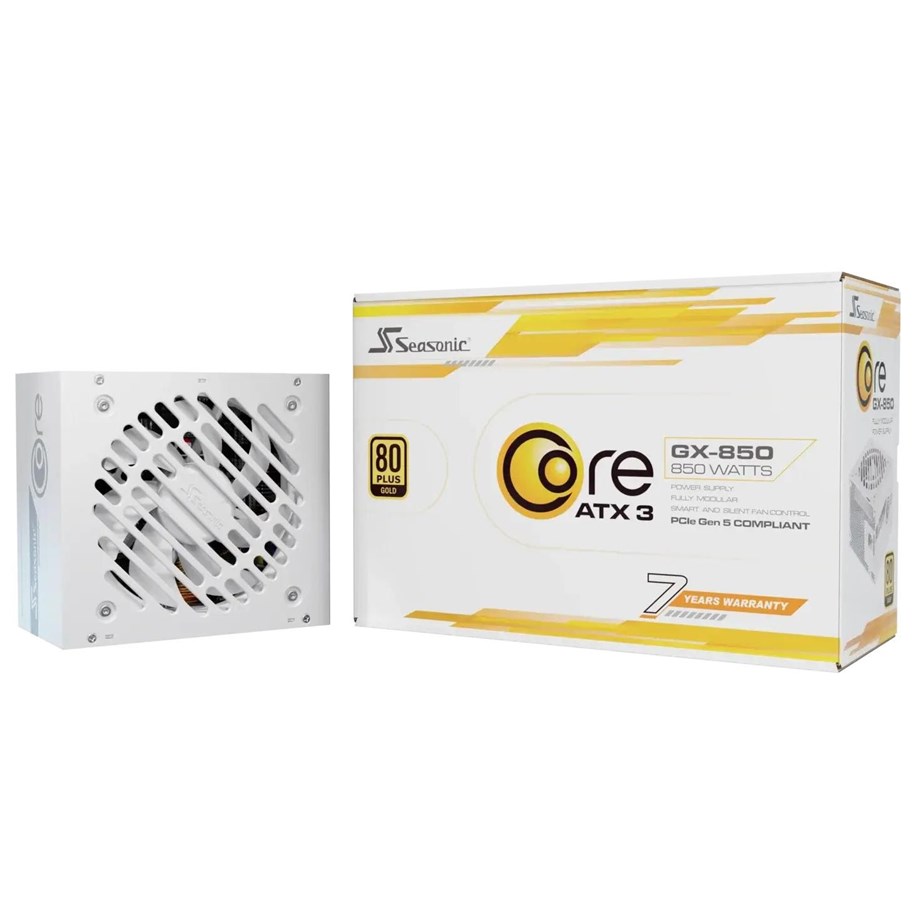

Seasonic CORE GX-850 Voeding - 850 Watt - ATX 3.1 - 80 Plus 80 PLUS Gold

Voeding ( intern ), ATX standard: ATX12V 3.1, 80 plus Gold, Cybenetics: Platinum efficiëntie / A- geluidsniveau, 120mm koeling Hydro Bearing lager, kabels: 3 x 8 (6+2) pins voor grafische kaarten / 1 x 12V-2x6 600 Watt pins voor grafische kaarten (PCI Express 5.1 ready) / 3 x 5 pins SATA / 3 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, volledig modulairkleur: wit, 850 watt

Lees meer
111,27 € 91,96 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

CORE GX White ATX 3.1
The updated Seasonic CORE GX White ATX 3.1 Series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX White line is a fully modular design equipped with white cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.

New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GX White ATX 3.1 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.

By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.

The eightfold increase in heat dissipation keeps the internals of the power supply cooler, eventually leading to improved product quality, long-term reliability, and more efficient operation.

The redesigned layout of the power supply components and its improved thermal performance creates versatility and allows the power supply to be safely installed in any orientation.

The OptiSink design is an eco-friendly solution that not only lowers the costs of material usage and production but also leads to energy savings in the long run.

Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.

S2FC - Smart And Silent Fan Control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

Voedingskabel (intern)

Producent
Productnummer
3510884
Model
SRP-CGX851-A5A32SF-W
EAN
4711173878728
Naar de website van de producent
Totaal vermogen
850 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Stroom
11 - 5.5 A
Gecombineerd vermogen (+3.3V)
100 W
Gecombineerd vermogen (+12V)
840 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
70 A
Max huidige output (+5V)
20 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Stroomspanning bescherming
Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
3
Lengte stroomkabel moederbord
61 cm
Aantal SATA power connectors
3
Lengte SATA-stroomkabel
750 mm
Lengte stroomkabel randapparaat (Molex)
690 mm
PCI Express power connectors (6+2 pin)
3
PCI Express-voedingsconnectoren (12+4-pins)
1
Lengte van de PCI Express-voedingsconnectoren (12+4 pins)
700 mm
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
75 cm
Bekabelingstype
Volledig modulair
Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Gold
ATX version
3.1
Bearing technologie
Hypro Bearing
Mean time between failures (MTBF)
100000 uur
Kleur van het product
Wit
Type koeling
Actief
Ventilator diameter
12 cm
Aan/uitschakelaar
Ja
Bedrijfstemperatuur (T-T)
0 - 50 °C
Breedte
140 mm
Diepte
150 mm
Hoogte
86 mm

Energie

Totaal vermogen
850 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Stroom
11 - 5.5 A
Gecombineerd vermogen (+3.3V)
100 W
Gecombineerd vermogen (+12V)
840 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
70 A
Max huidige output (+5V)
20 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Stroomspanning bescherming
Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning

Poorten & interfaces

Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
3
Lengte stroomkabel moederbord
61 cm
Aantal SATA power connectors
3
Lengte SATA-stroomkabel
750 mm
Lengte stroomkabel randapparaat (Molex)
690 mm
PCI Express power connectors (6+2 pin)
3
PCI Express-voedingsconnectoren (12+4-pins)
1
Lengte van de PCI Express-voedingsconnectoren (12+4 pins)
700 mm
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
75 cm
Bekabelingstype
Volledig modulair

Prestatie

Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Gold
ATX version
3.1
Bearing technologie
Hypro Bearing
Mean time between failures (MTBF)
100000 uur

Design

Kleur van het product
Wit
Type koeling
Actief
Ventilator diameter
12 cm
Aan/uitschakelaar
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C

Gewicht en omvang

Breedte
140 mm
Diepte
150 mm
Hoogte
86 mm
