Productnummer: 3266935

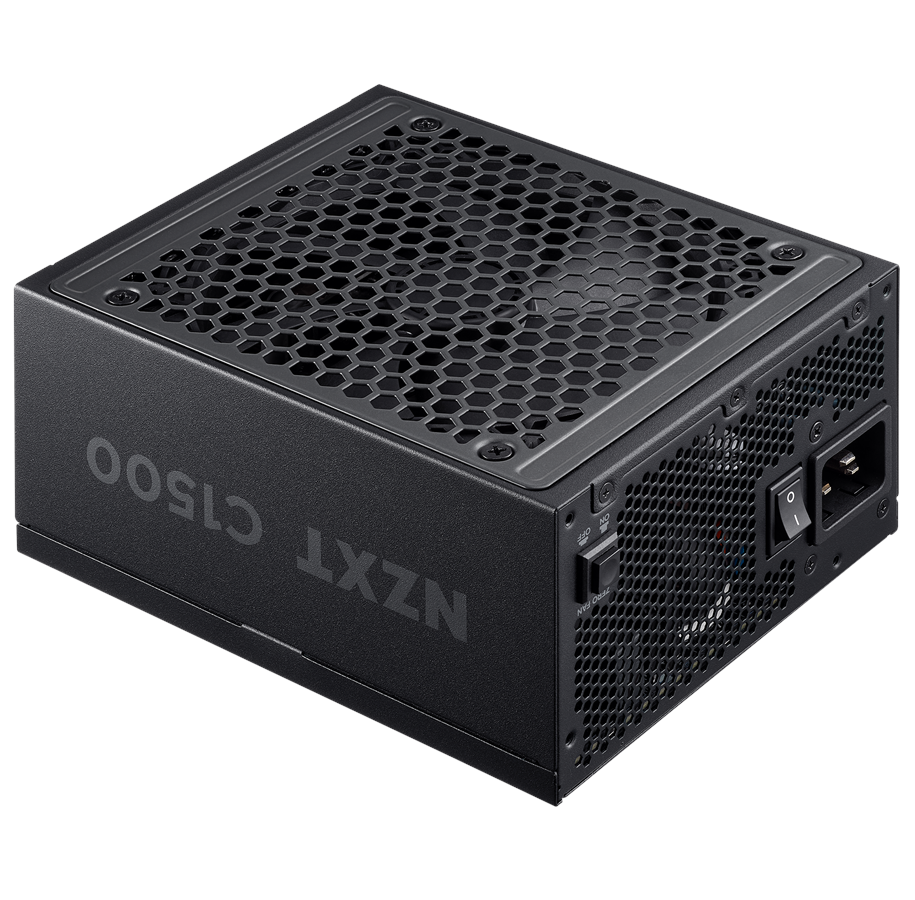

NZXT C1500 PLATINUM Voeding - 1500 Watt - 140 mm - ATX 3.1 - 80 Plus 80 PLUS Platinum

Voeding ( intern ), ATX standard: ATX12V 3.1, 80 plus Platinum, Cybenetics: Titanium efficiëntie / A- geluidsniveau, 140mm koeling levitation lager, actieve PFC, kabels: 6 x 8 (6+2) pins voor grafische kaarten / 1 x 12V-2x6 600 Watt pins voor grafische kaarten (PCI Express 5.1 ready) / 12 x 5 pins SATA / 4 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, volledig modulair en dun kabels, kleur: zwart, 1500 watt

Op voorraad
260,63 € 215,40 € excl. BTW
Goedkoopste privé verzending 6,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

The NZXT C-Series C1500 power supply is engineered to meet the needs of demanding PC builds and servers, offering high efficiency, reliability, and versatility. With its 80 PLUS Platinum certification, it delivers up to 94% efficiency at 20% load, significantly reducing energy consumption and operating costs. The inclusion of a 140 mm fan with magnetic levitation bearing ensures quiet operation and effective cooling, extending the lifespan of the power supply. Its fully modular design allows for a clean and organized build, enhancing airflow and aesthetics. Additionally, the C1500 is equipped with comprehensive protection features, including overcurrent, overpower, overvoltage, short-circuit, and undervoltage protection, ensuring the safety of your components. With a wide range of power output connectors, it offers compatibility with various PC and server configurations, making it a versatile choice for builders and professionals alike.

Voedingskabel (intern)

Producent
Productnummer
3266935
Model
PA-5P1BB-EU
EAN
5056547203652
Naar de website van de producent
Productbeschrijving
NZXT C-Series C1500 - voeding - 1500 Watt
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.1/ EPS12V 2.92
80 PLUS-Certificatie
80 PLUS Platinum
Lokalisatie
Europa
Input Voltage
115/240 V wisselstroom V
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
1500 Watt
Stroomafgifte
+3.3V - 22 A
+5V - 22 A
+12V - 125 A
+5VSB - 3 A
Uitgangsaansluitingen
1 x voeding 24-pins ATX
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
1 x voeding 8 pins-CPU
6 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
2 x 16 pins-PCI Express-voeding
12 x 15 pins Serial ATA-voeding
4 x 4-PIN interne voeding
Modulair kabelbeheer
Ja
Koelingsysteem
140 mm-ventilator
Meegeleverde accessoires
4 schroeven
Kleur
Matzwart
Afmetingen (BxDxH)
15 cm x 18 cm x 8.6 cm

Algemeen

Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.1/ EPS12V 2.92
PSU-formaat
ATX
Kleur
Matzwart
Lokalisatie
Europa

Voeding

Input Voltage
115/240 V wisselstroom V
Vereiste frequentie
50 - 60 Hz
Stroomuitgang Connector Details
1 x voeding 24-pins ATX
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
1 x voeding 8 pins-CPU
6 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
2 x 16 pins-PCI Express-voeding
12 x 15 pins Serial ATA-voeding
4 x 4-PIN interne voeding
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
1500 Watt
Stroomafgifte
+3.3V - 22 A
+5V - 22 A
+12V - 125 A
+5VSB - 3 A
Efficiëntie
93.8% at 50% Load, 92% at 10% Load, 94% at 20% Load, 90.8% at 100% Load
Vermogensfactor (PF)
0.99
Modulair kabelbeheer
Ja
80 PLUS-Certificatie
80 PLUS Platinum

Diversen

Meegeleverde accessoires
4 schroeven
Kabels meegeleverd
Netvoedingskabel - extern
Voeding 24 pins-ATX met afneembaar 4 pins-gedeelte modulaire kabel 60 cm
Voeding 8 pins +12 V met afneembare 4 pins-sectie-modulaire kabel 70 cm
8-pins modulaire EPS12V-stroomkabel 70 cm
2 x 16 pins-12VHPWR voedingskabel 65 cm
6 x 8 pins PCI Express-voeding met afneembare 2 pins sectie-modulaire kabel 65 cm
3 x 2x seriële ATA-modulaire kabel 65 cm
4 pins interne stroomkabel 65 cm
MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Koelingsysteem
140 mm-ventilator
Functies
Kabels met hoes, overbelastingsbescherming, voltagebeschermer, bescherming tegen te hoog voltage, bescherming tegen te laag voltage, kortsluitingsbeveiliging, geheel modulair, magnetische koelventilator met zwevende kogellager
Conformiteitsnormen
TUV, BSMI, CB, CCC, FCC, cTUVus, KC, RCM, CP65, BIS, IEC 62368-1, UAE, UKCA

Garantie van de fabrikant

Service & Support
Beperkte garantie - 10 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C

Afmetingen & gewicht

Breedte
15 cm
Diepte
18 cm
Hoogte
8.6 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
