Productnummer: 3419044

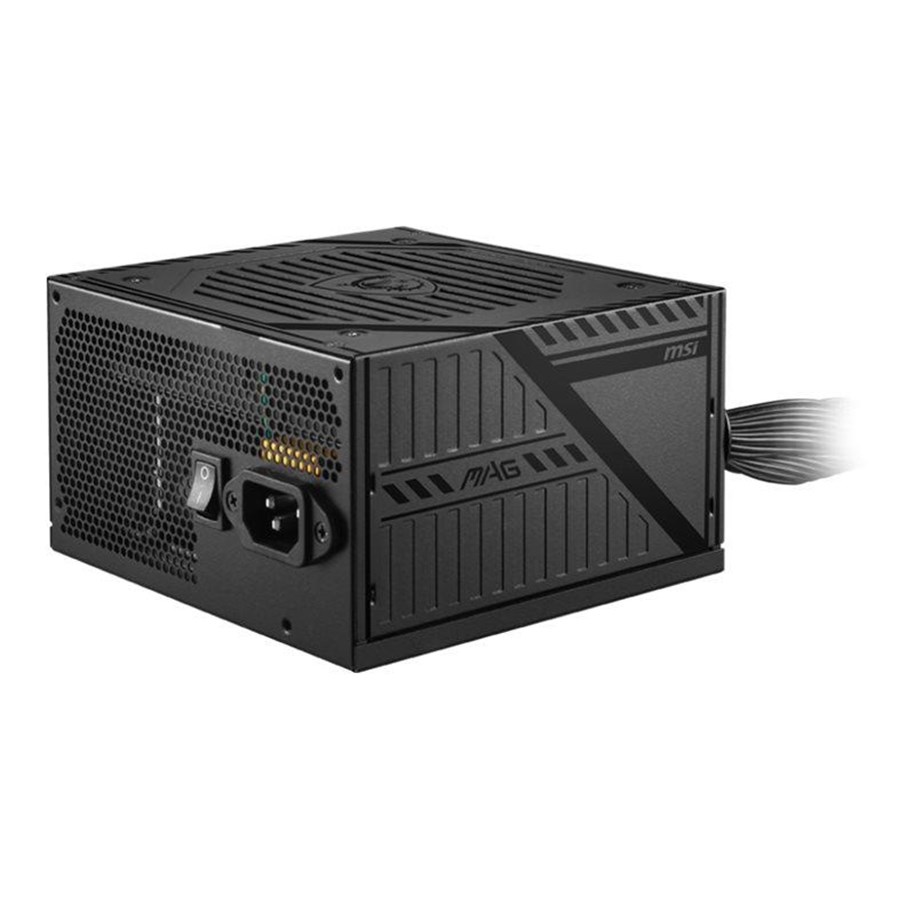

MSI MAG A550BNL - power supply - 550 Watt Voeding - 550 Watt - 120 mm - ATX - 80 Plus 80 PLUS Bronze

Voeding (intern), ATX12V 3.1/ EPS12V, 80 PLUS Bronze, 100-240 Volt wisselstroom V, 550 Watt, actieve PFC

77,29 € 63,88 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The MSI MAG A550BNL power supply is designed for reliability and efficiency in various computing environments. With a power output of 550 W, this internal power supply meets the demands of modern systems by supplying stable voltage across multiple channels, including +3.3V, +5V, and +12V. The unit incorporates active Power Factor Correction (PFC) to enhance efficiency, offering an 85% efficiency rating and 80 PLUS Bronze certification which ensures optimal performance with minimal power waste. Engineered with safety in mind, this power supply features multiple protection mechanisms such as overcurrent, overvoltage, overpower, and short-circuit protection. The hydrodynamic bearing cooling fan ensures effective heat dissipation while maintaining quiet operation. The MSI MAG A550BNL includes an array of connectors including power 24 pin ATX, 8 pin PCI Express, and 15 pin Serial ATA power connectors, making it a versatile choice for a wide range of builds and expansions.

Voedingskabel (intern)

Producent
Productnummer
3419044
Model
306-7ZPAY11-809
EAN
4711377126632
Naar de website van de producent
Productbeschrijving
MSI MAG A550BNL - voeding - 550 Watt
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.1/ EPS12V
80 PLUS-Certificatie
80 PLUS Bronze
Input Voltage
100-240 Volt wisselstroom V
Output Voltage
+3.3, +5, ±12 V, +5Vsb V
Stroomcapaciteit
550 Watt
Stroomafgifte
+3.3V - 14 A
+5V - 14 A
+12V - 45 A
-12V - 0.3 A
+5VSB - 2.5 A
Uitgangsaansluitingen
1 x voeding 24-pins ATX
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
2 x 2 x 8 pins-PCI Express-voeding met afneembare 2 pins-sectie
5 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
Modulair kabelbeheer
Ja
Koelingsysteem
Ventilator van 120 mm
Afmetingen (BxDxH)
15 cm x 14 cm x 8.6 cm

Algemeen

Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.1/ EPS12V
PSU-formaat
ATX

Voeding

Input Voltage
100-240 Volt wisselstroom V
Vereiste frequentie
50 - 60 Hz
Stroomuitgang Connector Details
1 x voeding 24-pins ATX
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
2 x 2 x 8 pins-PCI Express-voeding met afneembare 2 pins-sectie
5 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
Output Voltage
+3.3, +5, ±12 V, +5Vsb V
Stroomcapaciteit
550 Watt
Stroomafgifte
+3.3V - 14 A
+5V - 14 A
+12V - 45 A
-12V - 0.3 A
+5VSB - 2.5 A
Efficiëntie
85%
Modulair kabelbeheer
Ja
80 PLUS-Certificatie
80 PLUS Bronze

Diversen

Kabels meegeleverd
Wisselstroomkabel
Kracht 24-pin ATX met afneembare 4-pin sectie kabel 60 cm
Power 8 pin EPS12V / power 8 pin EPS12V with detachable 4 pin ATX12V section cable 60 cm
2x 8 pin PCI Express stroom met detachabele 2 pin sectiekabel 60 cm
Stroom 15 pins-SATA-kabel 85 cm
Stroom 15 pin SATA-kabel / 4 pin interne voedingskabel 85 cm
Koelingsysteem
Ventilator van 120 mm
Functies
Hydraulische lager koelventilator, overbelastingsbescherming, voltagebeschermer, gelijkstroom-gelijkstroomtechnologie, bescherming tegen te hoog voltage, kortsluitingsbeveiliging

Afmetingen & gewicht

Breedte
15 cm
Diepte
14 cm
Hoogte
8.6 cm
