Productnummer: 3427519

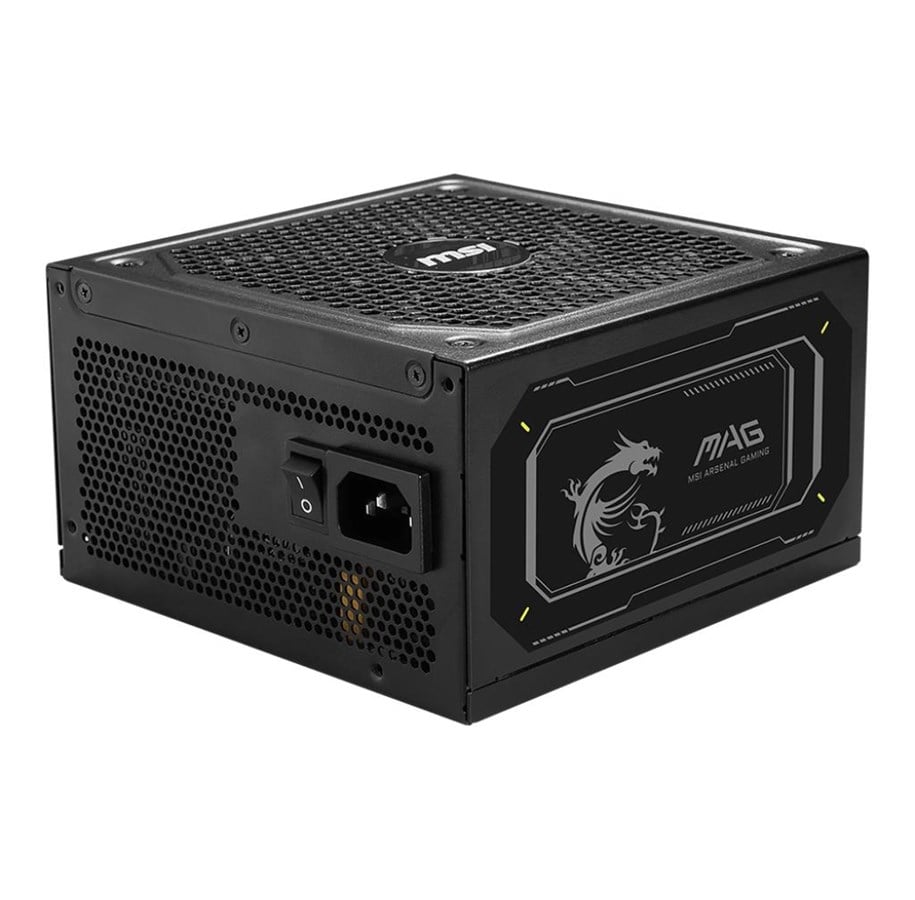

MSI MAG A1000GL PCIE5 II Voeding - 1000 Watt - 135 mm - ATX 3.1 - 80 Plus 80 PLUS Gold

Voeding ( intern ), ATX standard: ATX12V 3.1, 80 plus Gold, 135mm koeling fluid dynamic lager, kabels: 4 x 8 (6+2) pins voor grafische kaarten / 1 x 12V-2x6 600 Watt pins voor grafische kaarten (PCI Express 5.1 ready) / 12 x 5 pins SATA / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU2 x 8 pins CPU, volledig modulairkleur: zwart, 1000 watt

172,67 € 142,70 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

ATX 3.1 Ready
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.

ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING
The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.

Half bridge LLC + SR + DC/DC
A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.



Voedingskabel (intern)

Producent
Productnummer
3427519
Model
MAG A1000GL PCIE5 II
EAN
4711377246729
Naar de website van de producent
Totaal vermogen
1000 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Power Factor Correctie (PFC) type
Actief
Aantal +12V rail(s)
1
Gecombineerd vermogen (+3.3V)
120 W
Gecombineerd vermogen (+12V)
999,6 W
Gecombineerd vermogen (+5V)
120 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
22 A
Max huidige output(+12V)
83,3 A
Max huidige output (+5V)
22 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Efficientie
90 procent
Stroomspanning bescherming
Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning
Motherboard power connector
24-pin ATX
Peripheral (Molex) power connectors (4-pin)
1
Lengte stroomkabel moederbord
60 cm
Aantal SATA power connectors
12
Lengte SATA-stroomkabel
150,500 mm
Lengte stroomkabel randapparaat (Molex)
450,500 mm
EPS power connector (8-pin)
Nee
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
4
PCI Express-voedingsconnectoren (16-pins)
1
Bekabelingstype
Volledig modulair
Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Gold
ATX version
3.1
Bearing technologie
FDB
Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
13,5 cm
Aantal ventilatoren
1 ventilator(en)
Ventilator snelheid
500 - 1800 RPM
Belichting
Nee
Aan/uitschakelaar
Ja
Breedte
150 mm
Diepte
150 mm
Hoogte
86 mm
Gewicht
169 g

Energie

Totaal vermogen
1000 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Power Factor Correctie (PFC) type
Actief
Aantal +12V rail(s)
1
Gecombineerd vermogen (+3.3V)
120 W
Gecombineerd vermogen (+12V)
999,6 W
Gecombineerd vermogen (+5V)
120 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
22 A
Max huidige output(+12V)
83,3 A
Max huidige output (+5V)
22 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Efficientie
90 procent
Stroomspanning bescherming
Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning

Poorten & interfaces

Motherboard power connector
24-pin ATX
Peripheral (Molex) power connectors (4-pin)
1
Lengte stroomkabel moederbord
60 cm
Aantal SATA power connectors
12
Lengte SATA-stroomkabel
150,500 mm
Lengte stroomkabel randapparaat (Molex)
450,500 mm
EPS power connector (8-pin)
Nee
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
4
PCI Express-voedingsconnectoren (16-pins)
1
Bekabelingstype
Volledig modulair

Prestatie

Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Gold
ATX version
3.1
Bearing technologie
FDB

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
13,5 cm
Aantal ventilatoren
1 ventilator(en)
Ventilator snelheid
500 - 1800 RPM
Belichting
Nee
Aan/uitschakelaar
Ja

Gewicht en omvang

Breedte
150 mm
Diepte
150 mm
Hoogte
86 mm
Gewicht
169 g
