Productnummer: 3252577

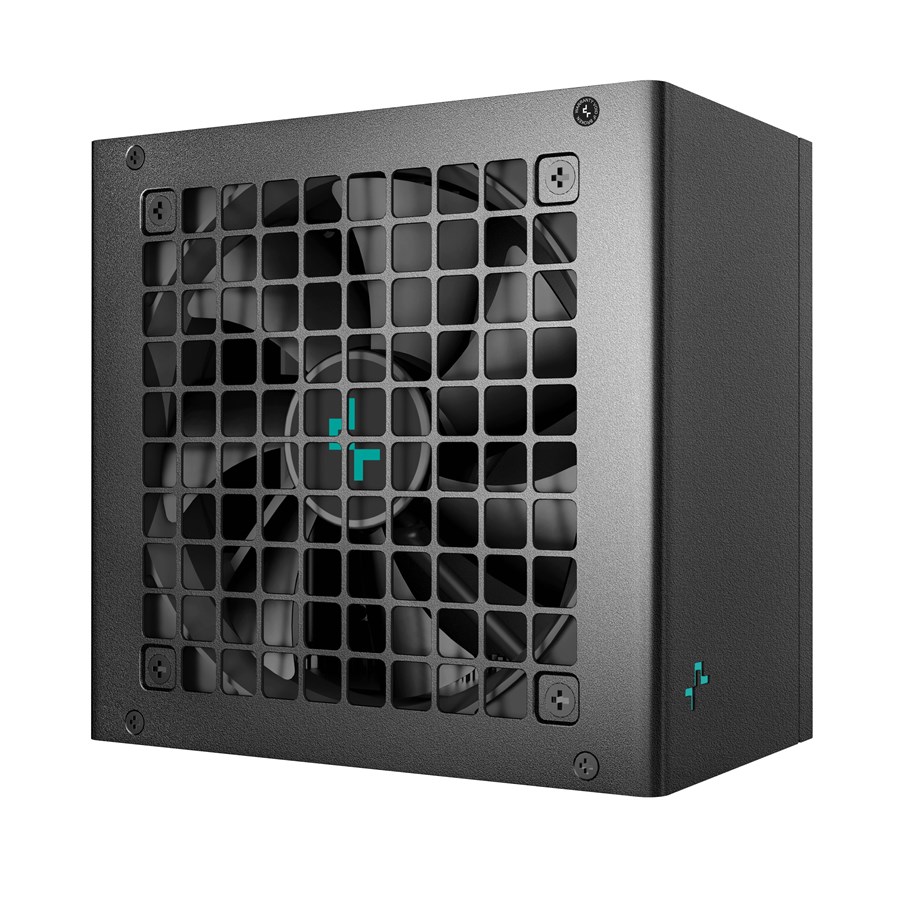

DeepCool PN850-M Voeding - 850 Watt - 120 mm - ATX 3.0 - 80 Plus 80 PLUS Gold

Voeding ( intern ), ATX standard: ATX12V 3.1, 80 plus Gold, 120mm koeling fluid dynamic lager, actieve PFC, kabels: 3 x 8 (6+2) pins voor grafische kaarten / 1 x 12V-2x6 600 Watt pins voor grafische kaarten (PCI Express 5.1 ready) / 8 x 5 pins SATA / 2 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, volledig modulair en dun/sleeved kabels, kabels, kleur: zwart, 850 watt

Op voorraad
123,58 € 102,13 € excl. BTW
Goedkoopste privé verzending 6,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

The Deepcool PN850M power supply is designed to meet the needs of demanding PC builds, offering both reliability and performance. With an 80 PLUS Gold certification, it delivers high energy efficiency, reducing electricity usage and operating costs. The fully modular cable management system allows for a clean and organized build, while the 120 mm fluid dynamic bearing cooling fan ensures quiet operation. The PN850M supports a wide range of PC components with its versatile connectors, including 24-pin ATX, 8-pin EPS12V, and multiple PCI Express power connectors. It also features comprehensive protection mechanisms, including overcurrent, overheat, overpower, overvoltage, short-circuit, surge & inrush, and undervoltage protection, ensuring the safety and longevity of your components. Whether you're building a new PC or upgrading an existing one, the Deepcool PN850M power supply is a reliable choice that combines performance, efficiency, and safety.

Voedingskabel (intern)

Producent
Productnummer
3252577
Model
R-PN850M-FC0B-EU
EAN
6933412719564
Naar de website van de producent
Productbeschrijving
Deepcool PN850M - voeding - 750 Watt
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.1/ EPS12V
80 PLUS-Certificatie
80 PLUS Gold
Lokalisatie
Europa
Input Voltage
100-240 Volt wisselstroom V
Stroomcapaciteit
750 Watt
Uitgangsaansluitingen
1 x voeding 24-pins ATX
2 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
3 x 15 pins Serial ATA-voeding
2 x 4-PIN interne voeding
3 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 12VHPWR
Modulair kabelbeheer
Ja
Koelingsysteem
Ventilator van 120 mm
Meegeleverde accessoires
Schroeven, kabelbinders
Kleur
Zwart
Afmetingen (BxDxH)
15 cm x 14 cm x 8.6 cm

Algemeen

Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 3.1/ EPS12V
PSU-formaat
ATX
Kleur
Zwart
Lokalisatie
Europa

Voeding

Input Voltage
100-240 Volt wisselstroom V
Vereiste frequentie
50 - 60 Hz
Stroomuitgang Connector Details
1 x voeding 24-pins ATX
2 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
3 x 15 pins Serial ATA-voeding
2 x 4-PIN interne voeding
3 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 12VHPWR
Stroomcapaciteit
750 Watt
Efficiëntie
90% at 50% Load
Modulair kabelbeheer
Ja
80 PLUS-Certificatie
80 PLUS Gold

Diversen

Meegeleverde accessoires
Schroeven, kabelbinders
Kabels meegeleverd
Wisselstroomkabel
Voeding 24 pins-ATX met afneembaar 4 pins-gedeelte modulaire kabel 55 cm
2 x voeding 8 pins EPS 12 V met afneembare 4 pins-sectie-modulaire kabel 70 cm
3 x 8 pins PCI Express-voeding met afneembare 2 pins sectie-modulaire kabel 55 cm
16-pins 12VHPWR voeding modulaire kabel 60 cm
2 x power 15 pin SATA cable / 4 pin internal power cable modular cable 93 cm
MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Koelingsysteem
Ventilator van 120 mm
Functies
Vloeistofdynamische lager koelventilator, gelijkstroom-gelijkstroomtechnologie, LLC Full Bridge Topology, voltagebeschermer, kortsluitingsbeveiliging, bescherming tegen te hoog voltage, overbelastingsbescherming, bescherming tegen te laag voltage, stroompiek- & inschakelbescherming, bescherming tegen onbelaste werking, bescherming tegen oververhitting, geheel modulair
Conformiteitsnormen
RoHS, WEEE, Triman, ErP 2014, FCC, CCC, TUV, cTUVus, RCM, EAC

Garantie van de fabrikant

Service & Support
Beperkte garantie - 10 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C

Afmetingen & gewicht

Breedte
15 cm
Diepte
14 cm
Hoogte
8.6 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
