Productnummer: 3369522

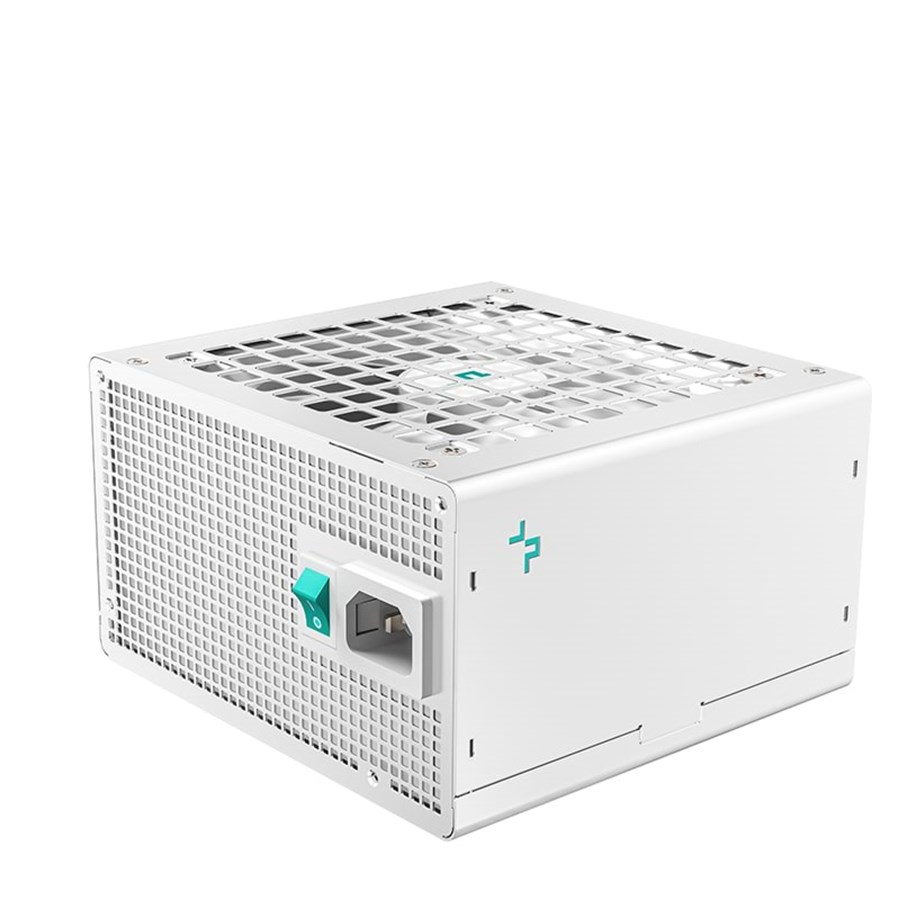

DeepCool PL650-D White Voeding - 650 Watt - 120 mm - ATX 3.1 - 80 Plus 80 PLUS Bronze
Voeding ( intern ), ATX standard: ATX12V 3.1, 80 plus Bronze, 120mm koeling fluid dynamic lager, kabels: 1 x 8 (6+2) pins voor grafische kaarten / 1 x 12V-2x6 pins voor grafische kaarten (PCI Express 5.1 ready) / 1 x 5 pins SATA / 1 x 24 (20+4) pins ATX / 1 x 4+4 pins CPU, kleur: wit, 650 watt
Op voorraad
64,06 €
52,94 € excl. BTW
Goedkoopste privé verzending 6,99 €
2 stks
Op voorraad - 2-3 werkdagen levertijd
The PL650D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
PL650D
Native ATX3.0 Power Supply
NATIVE ATX3.0
Based on INTEL's latest ATX3.0 standard, the PL650D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.
PL650D
Native ATX3.0 Power Supply
NATIVE ATX3.0
Based on INTEL's latest ATX3.0 standard, the PL650D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.0 power connector is included and has been rated up to 300 watts.
PREMIUM ELECTROLYTIC CAPACITORS
High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.
ROCK SOLID RELIABILITY
Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.
PAST, PRESENT, AND FUTURE
Equipped with three PCIe, two EPS, and a 16AWG 12VHPWR cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
BOLD BRONZE
Certified 80 PLUS Bronze, ensuring at least 85% efficiency under typical loads (50%).
PEACE OF MIND
Includes a slew of well-rounded safeguards, including: OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO.
EXCEPTIONAL WARRANTY
Standing behind the high standards DeepCool has set for our products, a 5-year limited warranty is included to ensure worry-free service.
Voedingskabel (intern)
-
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart / Rood
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart / wit
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart / Grijs
Op voorraad - 2-3 werkdagen levertijd27,99 €
-
DUTZO Sleeved voeding verlengkabel kit (v2) - Groen
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Wit
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Oranje
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Rood
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Blauw
Op voorraad - 2-3 werkdagen levertijd27,99 € -
DUTZO Sleeved voeding verlengkabel kit (v2) - Zwart / Oranje
Op voorraad - 2-3 werkdagen levertijd27,99 €
Producent
Productnummer
3369522
Model
R-PL650D-FC0W-EU-V2
EAN
6933412721246
Naar de website van de producent
Totaal vermogen
650 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Stroom
9 - 4.5 A
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
100 W
Gecombineerd vermogen (+12V)
648 W
Gecombineerd vermogen (+5V)
100 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
54 A
Max huidige output (+5V)
20 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Houd-tijd
16 ms
Efficientie
85 procent
Vertragingsbereik Power Good-signaal
100 - 150 ms
Stroomspanning bescherming
No load operation, Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Surge & inrush protection (SIP), Overspanningsbeveiliging, Onder spanning
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
2
Lengte stroomkabel moederbord
55 cm
Aantal SATA power connectors
6
Lengte SATA-stroomkabel
550,450,650 mm
PCI Express power connectors (6+2 pin)
3
PCI Express-voedingsconnectoren (16-pins)
1
CPU power connector (4+4 pin)
Ja
ATX power connector (20+4 pin)
Ja
Bekabelingstype
Niet-modulair
Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Bronze
ATX version
3.0
Bearing technologie
HYB
Mean time between failures (MTBF)
100000 uur
Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
12 cm
Aantal ventilatoren
1 ventilator(en)
Ventilator locatie
Boven
Aan/uitschakelaar
Ja
Bedrijfstemperatuur (T-T)
0 - 40 °C
Certificaten van naleving
RoHS, WEEE
Certificering
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Breedte
150 mm
Diepte
140 mm
Hoogte
86 mm
Type verpakking
Doos
Duurzaamheidscertificaten
ErP, Triman
Naleving van duurzaamheid
Ja
Land van herkomst
China
Energie
Totaal vermogen
650 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Stroom
9 - 4.5 A
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
100 W
Gecombineerd vermogen (+12V)
648 W
Gecombineerd vermogen (+5V)
100 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
54 A
Max huidige output (+5V)
20 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A
Houd-tijd
16 ms
Efficientie
85 procent
Vertragingsbereik Power Good-signaal
100 - 150 ms
Stroomspanning bescherming
No load operation, Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Surge & inrush protection (SIP), Overspanningsbeveiliging, Onder spanning
Poorten & interfaces
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
2
Lengte stroomkabel moederbord
55 cm
Aantal SATA power connectors
6
Lengte SATA-stroomkabel
550,450,650 mm
PCI Express power connectors (6+2 pin)
3
PCI Express-voedingsconnectoren (16-pins)
1
CPU power connector (4+4 pin)
Ja
ATX power connector (20+4 pin)
Ja
Bekabelingstype
Niet-modulair
Prestatie
Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Bronze
ATX version
3.0
Bearing technologie
HYB
Mean time between failures (MTBF)
100000 uur
Design
Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
12 cm
Aantal ventilatoren
1 ventilator(en)
Ventilator locatie
Boven
Aan/uitschakelaar
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Certificaten
Certificaten van naleving
RoHS, WEEE
Certificering
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Gewicht en omvang
Breedte
150 mm
Diepte
140 mm
Hoogte
86 mm
Verpakking
Type verpakking
Doos
Technische details
Duurzaamheidscertificaten
ErP, Triman
Naleving van duurzaamheid
Ja
Logistieke gegevens
Land van herkomst
China
