Productnummer: 3519658

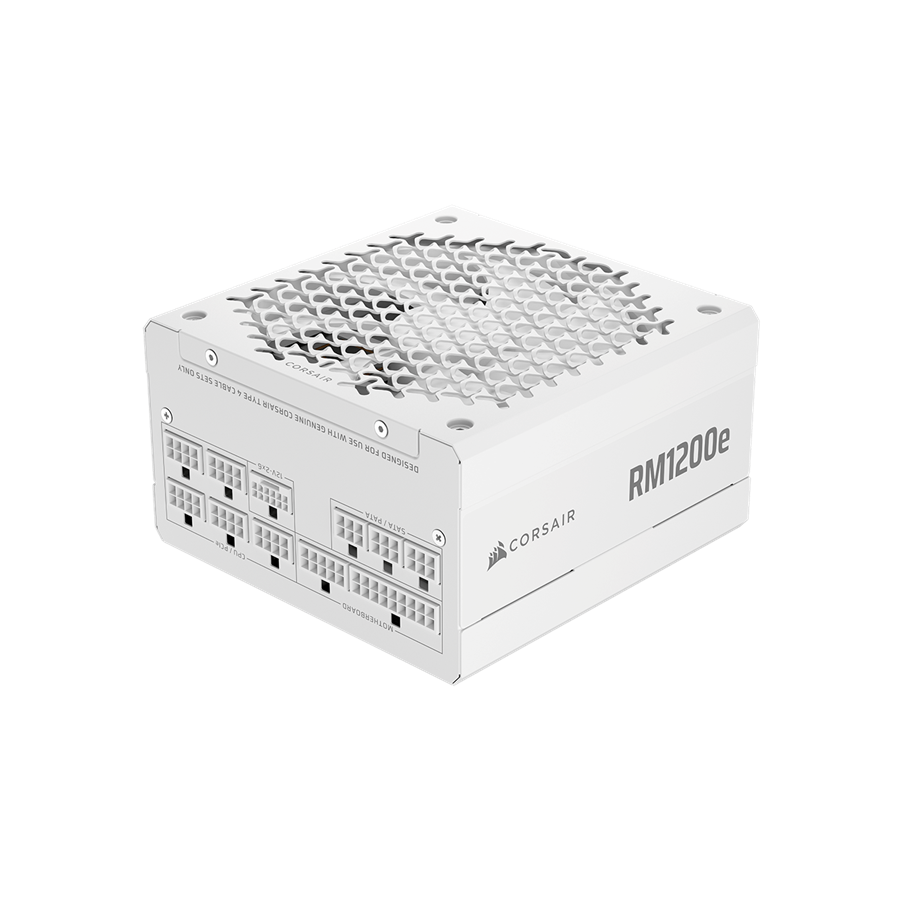

Corsair RM1200e Voeding - 1200 Watt - 120 mm - ATX 3.1 - 80 Plus 80 PLUS Platinum

Voeding ( intern ), ATX standard: ATX12V 3.1, Cybenetics: Platinum efficiëntie, 140mm koeling met zero RPM mode technologie, kabels: 3 + 12v-2x6 to 2x 8-pin x 8 (6+2) pins voor grafische kaarten / 1 x 12V-2x6 600 Watt pins voor grafische kaarten (PCI Express 5.1 ready) / 8 x 5 pins SATA / 4 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, volledig modulair en dun kabels, kleur: wit, 1200 watt

• The CORSAIR RM1200e offers 1200W for high-end builds, PinProtect GPU over current protection (OCP) and a 3D-Y fan grill for excellent cooling and low-noise operation.

204,20 € 168,76 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd

Voedingskabel (intern)

Producent
Productnummer
3519658
Model
CP-9020317-EU
EAN
0840440408550
Naar de website van de producent
Neem contact op met de fabrikant
Totaal vermogen
1200 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
47 - 63 Hz
Stroom
15 A
Gecombineerd vermogen (+3.3V)
150 W
Gecombineerd vermogen (+12V)
1200 W
Gecombineerd vermogen (+5V)
150 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
100 A
Max huidige output (+5V)
20 A
Max huidige output (+5Vsb)
3 A
Motherboard power connector
24-pin ATX
Peripheral (Molex) power connectors (4-pin)
4
Lengte stroomkabel moederbord
61 cm
Aantal SATA power connectors
3
Lengte SATA-stroomkabel
115,455,800 mm
Lengte stroomkabel randapparaat (Molex)
100,450 mm
PCI Express power connectors (6+2 pin)
2
Lengte PCI Express-stroomkabel
60 cm
Aantal EPS-aansluitingen
2
Bekabelingstype
Volledig modulair
Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Platinum
ATX version
3.1
Kleur van het product
Wit
Type koeling
Actief
Ventilator diameter
14 cm
Aantal ventilatoren
1 ventilator(en)
Aan/uitschakelaar
Ja
Breedte
150 mm
Diepte
150 mm
Hoogte
86,5 mm
Gewicht
1,69 kg

Energie

Totaal vermogen
1200 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
47 - 63 Hz
Stroom
15 A
Gecombineerd vermogen (+3.3V)
150 W
Gecombineerd vermogen (+12V)
1200 W
Gecombineerd vermogen (+5V)
150 W
Gecombineerd vermogen(+5Vsb)
15 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
100 A
Max huidige output (+5V)
20 A
Max huidige output (+5Vsb)
3 A

Poorten & interfaces

Motherboard power connector
24-pin ATX
Peripheral (Molex) power connectors (4-pin)
4
Lengte stroomkabel moederbord
61 cm
Aantal SATA power connectors
3
Lengte SATA-stroomkabel
115,455,800 mm
Lengte stroomkabel randapparaat (Molex)
100,450 mm
PCI Express power connectors (6+2 pin)
2
Lengte PCI Express-stroomkabel
60 cm
Aantal EPS-aansluitingen
2
Bekabelingstype
Volledig modulair

Prestatie

Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Platinum
ATX version
3.1

Design

Kleur van het product
Wit
Type koeling
Actief
Ventilator diameter
14 cm
Aantal ventilatoren
1 ventilator(en)
Aan/uitschakelaar
Ja

Gewicht en omvang

Breedte
150 mm
Diepte
150 mm
Hoogte
86,5 mm
Gewicht
1,69 kg

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
