Productnummer: 3170360

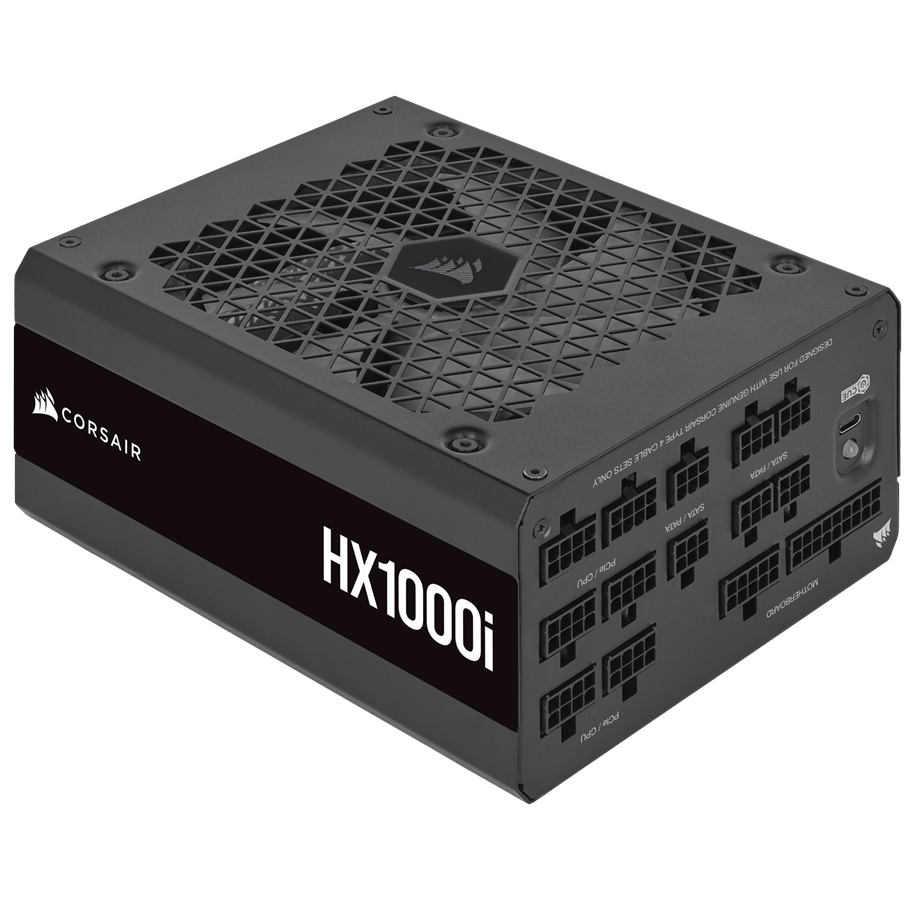

Corsair HX1000i (2023) Voeding - 1000 Watt - 140 mm - ATX 3.1 - 80 Plus 80 PLUS Platinum

Voeding ( intern ), ATX standard: ATX12V 3.1 / EPS12V 2.92, 80 plus Platinum, Cybenetics: Platinum efficiëntie / A+ geluidsniveau, 140mm koeling met zero RPM mode technologie en fluid dynamic lager, actieve PFC, kabels: 4 x 8 (6+2) pins voor grafische kaarten / 1 x 12V-2x6 pins voor grafische kaarten (PCI Express 5.1 ready) / 8 x 5 pins SATA / 8 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, 1 x USB-C om softwarecontrole mogelijk te maken, volledig modulair en dun/sleeved kabels, kabels, software Corsair iCUE, kleur: zwart, 1000 watt

Op voorraad
237,08 € 195,93 € excl. BTW
Goedkoopste privé verzending 6,99 €
15+ stks Op voorraad - 2-3 werkdagen levertijd

HXi Series power supplies give you extremely tight voltage control, virtually silent operation, and a fully modular cable set. With all Japanese 105 °C capacitors, they're a great choice for high performance PCs where reliability is essential. 80 PLUS Platinum efficiency reduces operating cost and excess heat, and together with Zero RPM Fan Mode technology, gives you virtually silent operation.

With Corsair Link Digital support, you can monitor power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop. And, the fully modular, low profile cable set makes builds and upgrades easy, with clean, great-looking results.

Voedingskabel (intern)

Producent
Productnummer
3170360
Model
CP-9020259-EU
EAN
0840006697305
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
CORSAIR HXi Series HX1000i - voeding - ultralaag geluid - 1000 watt
Type apparaat
Voeding - intern
Naleving van specificatie
ATX12V 3.0/ EPS12V
80 PLUS-Certificatie
80 PLUS Platinum
Gewicht
3.71 kg
Lokalisatie
Europa
Input Voltage
100-240 Volt wisselstroom V
Output Voltage
+3.3, +5, +12 V
Stroomcapaciteit
1000 watt
Stroomafgifte
+3.3V - 25 A
+5V - 25 A
+12V - 83.3 A
+5VSB - 3 A
Uitgangsaansluitingen
1 x voeding 24-pins ATX
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
1 x voeding 8 pins-EPS12V
4 x 4-PIN interne voeding
8 x 15 pins Serial ATA-voeding
3 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 12VHPWR
1 x 10 pins-USB-C
Modulair kabelbeheer
Ja
Koelingsysteem
140 mm-ventilator
Meegeleverde accessoires
Kabelbinders, schroeven

Algemeen

Type apparaat
Voeding - intern
Naleving van specificatie
ATX12V 3.0/ EPS12V
PSU-formaat
ATX
Lokalisatie
Europa

Voeding

Input Voltage
100-240 Volt wisselstroom V
Vereiste frequentie
47 - 63 Hz
Stroomuitgang Connector Details
1 x voeding 24-pins ATX
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
1 x voeding 8 pins-EPS12V
4 x 4-PIN interne voeding
8 x 15 pins Serial ATA-voeding
3 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 12VHPWR
1 x 10 pins-USB-C
Output Voltage
+3.3, +5, +12 V
Stroomcapaciteit
1000 watt
Stroomafgifte
+3.3V - 25 A
+5V - 25 A
+12V - 83.3 A
+5VSB - 3 A
Efficiëntie
92%
Modulair kabelbeheer
Ja
80 PLUS-Certificatie
80 PLUS Platinum

Diversen

Meegeleverde accessoires
Kabelbinders, schroeven
Kabels meegeleverd
24-pins modulaire ATX-stroomkabel - extern - 61 cm
2 x 8-pins modulaire EPS12V-stroomkabel - extern - 65 cm
16 pins-12VHPWR naar 2x8 pins-PCI Express voedingsadapter - extern - 65 cm
Modulaire kabel 2x 8 pins PCI Express-voeding met afneembaar 2 pinsgedeelte - extern - 77.5 cm
8 x Seriële ATA-kabel - extern - 80 cm
8 x parallelle kabel - extern - 75 cm
Kabel USB-C naar 10-1-pins - extern - 52.5 cm
MTBF (gemiddelde tijd tussen twee storingen)
100,000 uur
Koelingsysteem
140 mm-ventilator
Functies
Controle snelheid ventilator, vloeistofdynamische lager koelventilator, magnetische koelventilator met zwevende kogellager, geheel modulair, Nul RPM ventilatormodus, Cybenetics Platinum, condensator van hoge kwaliteit, Cybenetics A, Multi-GPU Technologies Supported

Software / Systeemvereisten

Software meegeleverd
CORSAIR iCUE

Garantie van de fabrikant

Service & Support
Beperkte garantie - 10 jaar

Afmetingen & gewicht

Gewicht
3.71 kg
