Productnummer: 3395007

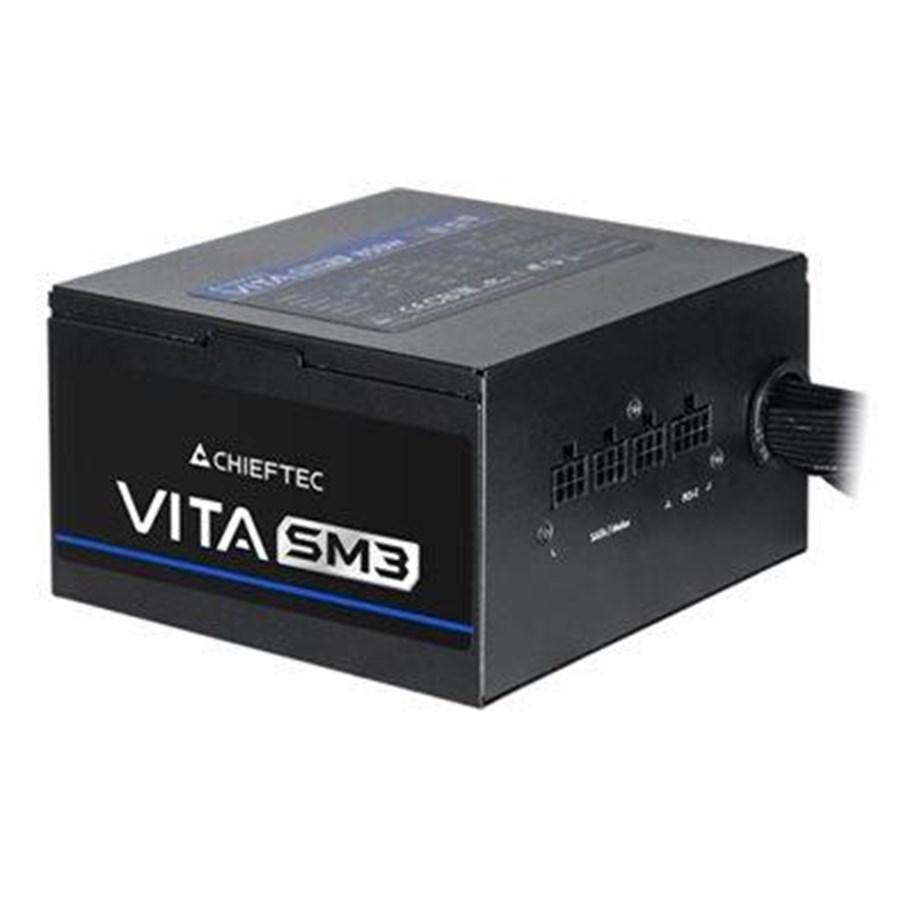

Chieftec VITA SM3 BPX-750-C - power supply - 750 Watt Voeding - 750 Watt - 120 mm - ATX - 80 Plus 80 PLUS Bronze

Power supply with 750 W output, ATX12V 3.1 / EPS12V compliance, 80 PLUS Bronze certification and a 120 mm fan for cooling.


Chieftec VITA SM3 BPX-750-C is a semi-modular internal PSU with AC 100–240 V input, Automatic Fanspeed Control and built-in protections including overcurrent, overvoltage and short-circuit protection.



  • Connectivity: 24‑pin ATX, 2× 8‑pin EPS (detachable 4‑pin sections), PCIe 8‑pin with detachable 2‑pin sections, 6× SATA and 12VHPWR

  • 80 PLUS Bronze certified for energy-efficient operation

  • Safety features: overcurrent, overvoltage, short-circuit, over-temperature and under-voltage correction


Provides efficient, protected power delivery tailored for modern ATX builds.
Lees meer
72,91 € 60,26 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd

The Chieftec VITA SM3 BPX-750-C is a power supply designed for performance and efficiency. With a total power output of 750 W, it meets a range of power needs while ensuring compliance with current standards such as ATX12V 3.1 and EPS12V. This power supply includes multiple connectors, including a 24-pin ATX, various modular cables for flexibility, and an efficient cooling system featuring a 120 mm fan, providing effective air circulation even during high-performance tasks.Safety is prioritized with several protective features, including overcurrent protection, overvoltage protection, and short-circuit protection. Moreover, the semi-modular cable management allows users to arrange their setup neatly, reducing clutter and enhancing airflow within the case. With its 80 PLUS Bronze certification, the Chieftec VITA SM3 ensures powerful performance and energy efficiency, helping to minimize energy consumption without compromising reliability.

Voedingskabel (intern)

Producent
Productnummer
3395007
Model
BPX-750-C
EAN
0753263078971
Naar de website van de producent
Totaal vermogen
750 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max output current (+12V1)
62,5 A
Max huidige output (-12V)
0,3 A
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
3
Lengte stroomkabel moederbord
65 cm
Aantal SATA power connectors
6
Lengte SATA-stroomkabel
120,450 mm
Lengte stroomkabel randapparaat (Molex)
120,450 mm
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
4
Lengte PCI Express-stroomkabel
60 cm
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
70 cm
Bekabelingstype
Semi-modulair
Bedoeld voor
Pc/server
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Bronze
ATX version
3.1
Kleur van het product
Zwart
Type koeling
Actief
Breedte
140 mm
Diepte
150 mm
Hoogte
86 mm
Gewicht
1,9 kg
Gewicht verpakking
2,7 kg
Type verpakking
Doos

Energie

Totaal vermogen
750 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
15 W
Max output current (+12V1)
62,5 A
Max huidige output (-12V)
0,3 A

Poorten & interfaces

Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
3
Lengte stroomkabel moederbord
65 cm
Aantal SATA power connectors
6
Lengte SATA-stroomkabel
120,450 mm
Lengte stroomkabel randapparaat (Molex)
120,450 mm
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
4
Lengte PCI Express-stroomkabel
60 cm
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
70 cm
Bekabelingstype
Semi-modulair

Prestatie

Bedoeld voor
Pc/server
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Bronze
ATX version
3.1

Design

Kleur van het product
Zwart
Type koeling
Actief

Gewicht en omvang

Breedte
140 mm
Diepte
150 mm
Hoogte
86 mm
Gewicht
1,9 kg

Verpakking

Gewicht verpakking
2,7 kg
Type verpakking
Doos
