Productnummer: 3394841

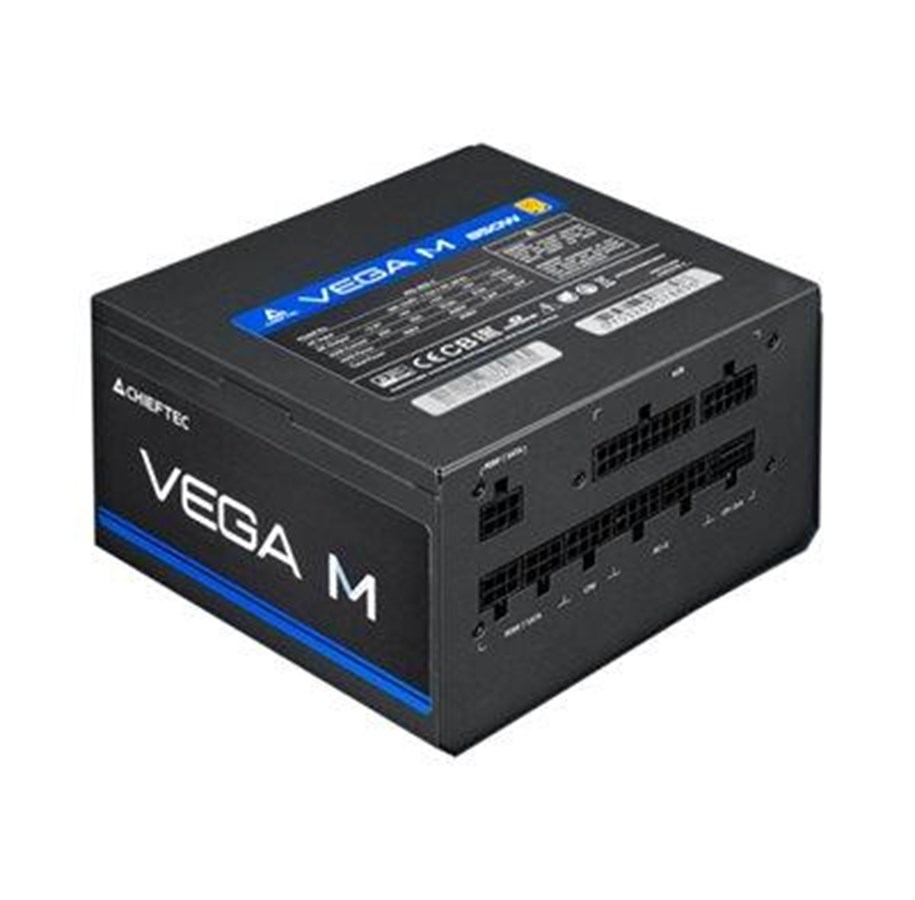

Chieftec VEGA M PPG-750-C Voeding - 750 Watt - 135 mm - ATX - 80 Plus 80 PLUS Gold

The CHIEFTEC Vega M Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality. The Vega M Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability.

The full-modular design with extra- long black cables make it suitable for mainstream gamers to build their system, even in larger PC cases. Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels.

  • Compliant with ATX 12V 3.1
  • Support PCIe GEN5
  • 80PLUS Gold certified efficiency
  • LLC Half-Bridge converter with DC to DC technology
  • Fully modular cable management





Lees meer
82,50 € 68,18 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The Chieftec VEGA M PPG-750-C power supply is designed for efficiency and reliability. With a total output of 750 W, this power supply meets the demands of modern computing systems. Its fully modular cable management system allows users to customize their setup, reducing clutter and enhancing airflow. Equipped with a robust cooling system featuring a 135 mm fan, this unit operates quietly while maintaining optimal thermal performance.

Safety and compliance are important, with the Chieftec VEGA M meeting multiple standards such as RoHS and TUV Rheinland certification. Overcurrent, overvoltage, overload, and short-circuit protections ensure secure operation, safeguarding connected components. With features like active Power Factor Correction and DC-DC technology, this power supply delivers stable and efficient performance across a range of applications, making it an ideal choice for both gaming rigs and professional builds.

Voedingskabel (intern)

Producent
Productnummer
3394841
Model
PPG-750-C
EAN
0753263078896
Naar de website van de producent
Totaal vermogen
750 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
100 W
Gecombineerd vermogen (+5V)
100 W
Max huidige output (+3.3V)
20 A
Max output current (+12V1)
62,5 A
Max huidige output (+5V)
20 A
Max huidige output (-12V)
0,3 A
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
3
Lengte stroomkabel moederbord
60 cm
Aantal SATA power connectors
6
Lengte SATA-stroomkabel
400 mm
Lengte stroomkabel randapparaat (Molex)
400 mm
EPS power connector (8-pin)
Ja
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
4
PCI Express-voedingsconnectoren (12+4-pins)
1
Lengte van de PCI Express-voedingsconnectoren (12+4 pins)
600 mm
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
65 cm
ATX Power connector (24-pin)
Ja
ATX power connector (20+4 pin)
Ja
Bekabelingstype
Volledig modulair
Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Gold
ATX version
3.1
Bearing technologie
FDB
Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
13,5 cm
Belichting
Nee
Certificering
80PLUS Gold
Breedte
150 mm
Diepte
150 mm
Hoogte
85 mm
Gewicht
1,96 kg
Gewicht verpakking
2,43 kg

Energie

Totaal vermogen
750 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
100 W
Gecombineerd vermogen (+5V)
100 W
Max huidige output (+3.3V)
20 A
Max output current (+12V1)
62,5 A
Max huidige output (+5V)
20 A
Max huidige output (-12V)
0,3 A

Poorten & interfaces

Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
3
Lengte stroomkabel moederbord
60 cm
Aantal SATA power connectors
6
Lengte SATA-stroomkabel
400 mm
Lengte stroomkabel randapparaat (Molex)
400 mm
EPS power connector (8-pin)
Ja
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
4
PCI Express-voedingsconnectoren (12+4-pins)
1
Lengte van de PCI Express-voedingsconnectoren (12+4 pins)
600 mm
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
65 cm
ATX Power connector (24-pin)
Ja
ATX power connector (20+4 pin)
Ja
Bekabelingstype
Volledig modulair

Prestatie

Bedoeld voor
PC
Vormfactor van de voeding (PSU)
ATX
80 PLUS certificatie
80 PLUS Gold
ATX version
3.1
Bearing technologie
FDB

Design

Kleur van het product
Zwart
Type koeling
Actief
Ventilator diameter
13,5 cm
Belichting
Nee

Certificaten

Certificering
80PLUS Gold

Gewicht en omvang

Breedte
150 mm
Diepte
150 mm
Hoogte
85 mm
Gewicht
1,96 kg

Verpakking

Gewicht verpakking
2,43 kg

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
