Productnummer: 3235835

Chieftec VALUE SERIES APB-700B8 - power supply - 700 Watt Voeding - 700 Watt - 120 mm - ATX 2.3 - 80 Plus 80 PLUS

Voeding (intern), ATX12V 2.3, 80 PLUS, AC 200, 240 V, 700 Watt, actieve PFC

47,59 € 39,33 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd

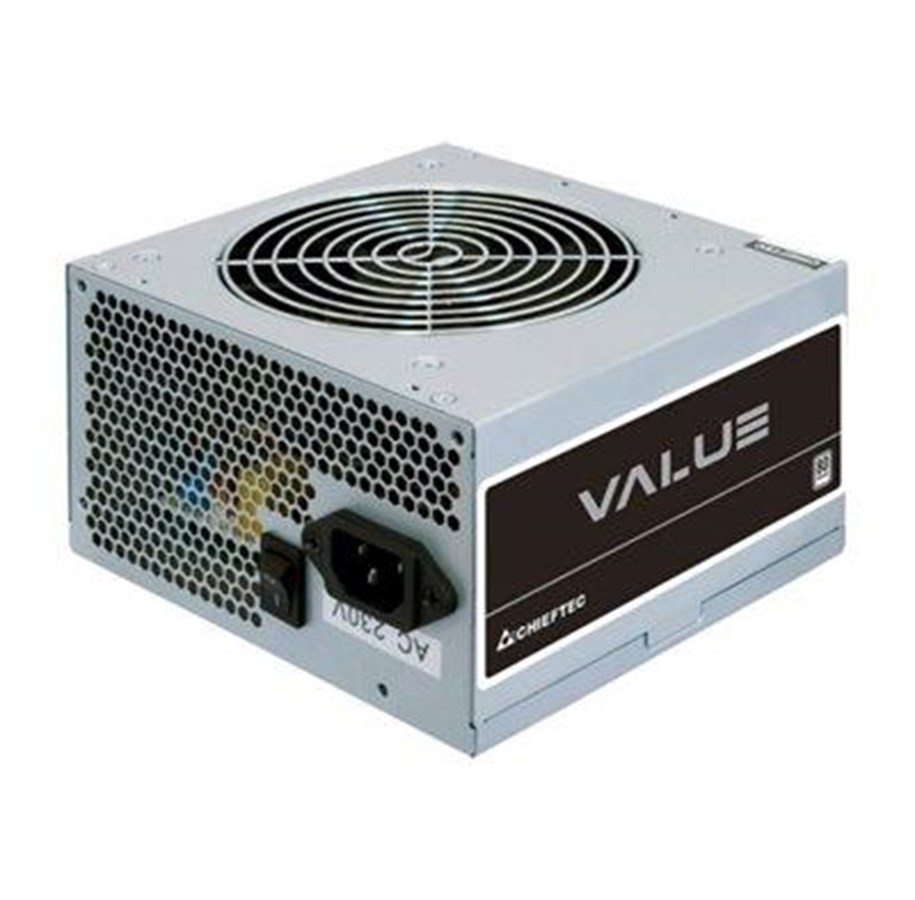

The Chieftec VALUE SERIES APB-700B8 power supply is a robust solution for powering high-demand PC and server systems. With a generous 700 Watt power output and an 80 PLUS certification, it delivers efficient and reliable power. Its active Power Factor Correction (PFC) enhances its efficiency, making it an eco-conscious choice for any setup.Designed with a 120 mm fan featuring Automatic Fanspeed Control (AFC), it ensures optimal cooling and prolonged lifespan by preventing overheating. The APB-700B8 is equipped with a comprehensive suite of protection features, including overpower, overvoltage, short-circuit, surge & inrush, and undervoltage protection, safeguarding your components from various electrical risks.Compatibility is key, and with a variety of connectors including power 24 pin ATX, 8 pin EPS12V, 8 pin PCI Express power, Molex/floppy, and SATA connectors, it supports a wide range of devices. Whether you're building a new system or upgrading an existing one, the Chieftec VALUE SERIES APB-700B8 power supply is a reliable foundation for any project.

Voedingskabel (intern)

Producent
Productnummer
3235835
Model
APB-700B8
EAN
0753263077820
Naar de website van de producent
Productbeschrijving
Chieftec VALUE SERIES APB-700B8 - voeding - 700 Watt
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 2.3
80 PLUS-Certificatie
80 PLUS
Gewicht
1.42 kg
Input Voltage
AC 200 - 240 V
Output Voltage
+3.3, +5, ±12 V, -12V, +5Vsb V
Stroomcapaciteit
700 Watt
Stroomafgifte
+3.3V - 22 A
+5V - 22 A
+12V - 54 A
-12V - 0.3 A
+5VSB - 2.5 A
Uitgangsaansluitingen
1 x voeding 24-pins ATX
1 x voeding 8 pins-EPS12V
2 x 8 pins-PCI Express-voeding
3 x Molex/floppy
4 x SATA-aansluiting
Koelingsysteem
Ventilator van 120 mm
Afmetingen (BxDxH)
15 cm x 14 cm x 8.7 cm

Algemeen

Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 2.3
PSU-formaat
ATX

Voeding

Input Voltage
AC 200 - 240 V
Vereiste frequentie
47 - 63 Hz
Stroomuitgang Connector Details
1 x voeding 24-pins ATX
1 x voeding 8 pins-EPS12V
2 x 8 pins-PCI Express-voeding
3 x Molex/floppy
4 x SATA-aansluiting
Output Voltage
+3.3, +5, ±12 V, -12V, +5Vsb V
Maximum elektrische stroom
5 A
Stroomcapaciteit
700 Watt
Stroomafgifte
+3.3V - 22 A
+5V - 22 A
+12V - 54 A
-12V - 0.3 A
+5VSB - 2.5 A
Vermogensfactor (PF)
0.9
80 PLUS-Certificatie
80 PLUS

Diversen

Koelingsysteem
Ventilator van 120 mm
Functies
Voltagebeschermer, bescherming tegen te hoog voltage, bescherming tegen te laag voltage, kortsluitingsbeveiliging, stroompiek- & inschakelbescherming, automatische bediening ventilatorsnelheid (AFC)
Conformiteitsnormen
TUV, CB, RoHS, ERP, EAC, Interseroh

Garantie van de fabrikant

Service & Support
Beperkte garantie - 2 jaar

Afmetingen & gewicht

Breedte
15 cm
Diepte
14 cm
Hoogte
8.7 cm
Gewicht
1.42 kg

Afmetingen & gewicht (transport)

Verzendgewicht
1.57 kg

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
