Productnummer: 2610730

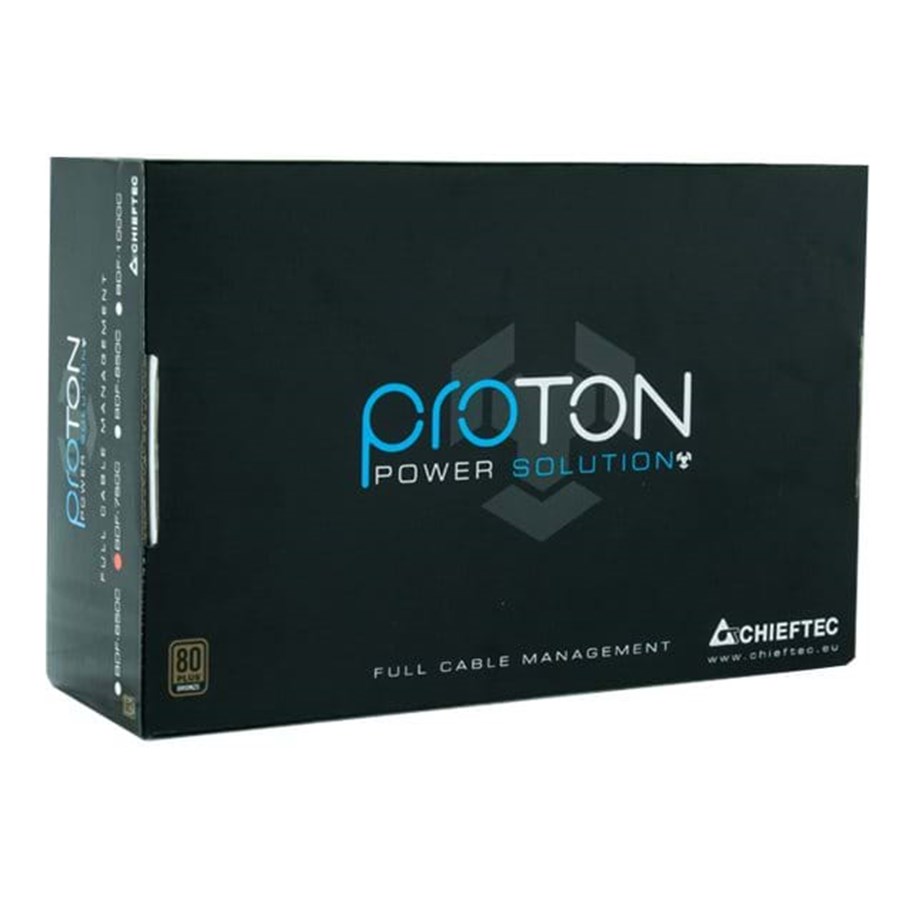

Chieftec Proton Series Voeding - 850 Watt - 140 mm - ATX - 80 Plus 80 PLUS Bronze

Power supply (internal), ATX12V 2.3, 80 PLUS Bronze, AC 115-230 V, 850 Watt, active PFC

125,07 € 103,36 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

Voedingskabel (intern)

Producent
Productnummer
2610730
Model
BDF-850C
EAN
4710713231306
Naar de website van de producent
Productbeschrijving
Chieftec Proton Series BDF-850C - voeding - 850 watt
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 2.3
80 PLUS-Certificatie
80 PLUS Bronze
Input Voltage
115-230 V wisselstroom V
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
850 watt
Stroomafgifte
+5V - 22 A
+3.3V - 22 A
+12V1 - 70.5 A
-12V - 0.5 A
+5VSB - 3 A
Uitgangsaansluitingen
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
9 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
2 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
4 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 4-PIN mini-stroomconnector
Koelingsysteem
140 mm-ventilator
Afmetingen (BxDxH)
15 cm x 14 cm x 8.7 cm
Milieunormen
ENERGY STAR

Algemeen

Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 2.3
PSU-formaat
ATX

Voeding

Input Voltage
115-230 V wisselstroom V
Vereiste frequentie
50 - 60 Hz
Stroomuitgang Connector Details
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
9 x 15 pins Serial ATA-voeding
3 x 4-PIN interne voeding
2 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
4 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 4-PIN mini-stroomconnector
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
850 watt
Stroomafgifte
+5V - 22 A
+3.3V - 22 A
+12V1 - 70.5 A
-12V - 0.5 A
+5VSB - 3 A
Efficiëntie
85%
Vermogensfactor (PF)
0.9
80 PLUS-Certificatie
80 PLUS Bronze

Diversen

Koelingsysteem
140 mm-ventilator
Functies
Bescherming tegen oververhitting, overbelastingsbescherming, voltagebeschermer, overladingsbescherming, bescherming tegen te laag voltage, kortsluitingsbeveiliging, gelijkstroom-gelijkstroomtechnologie, ventilatorsnelheidsregeling
Conformiteitsnormen
TUV, CB, RoHS, ERP

Informatie over Duurzaamheid

ENERGY STAR
Ja

Garantie van de fabrikant

Service & Support
Beperkte garantie - 2 jaar

Afmetingen & gewicht

Breedte
15 cm
Diepte
14 cm
Hoogte
8.7 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
