Voeding - Chieftec Chieftronic PowerUp Series 850W Voeding - 850 Watt - 120 mm - ATX 2.53 - 80 Plus 80 PLUS Gold - GPX-850FC
Productnummer: 2911970
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC
GPX-850FC

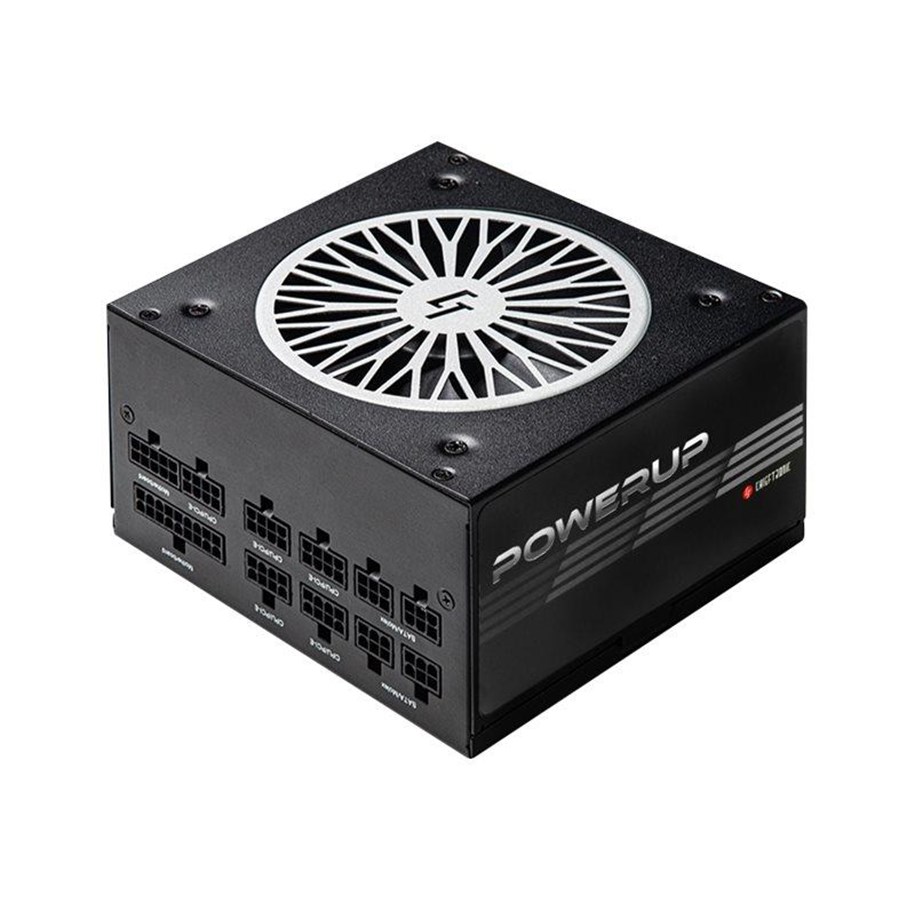

Chieftec Chieftronic PowerUp Series 850W Voeding - 850 Watt - 120 mm - ATX 2.53 - 80 Plus 80 PLUS Gold

Voeding (intern), ATX12V 2.53, 80 PLUS Gold, 100-240 Volt wisselstroom V, 850 Watt, actieve PFC

114,82 € 94,89 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 8 - 9 werkdagen levertijd

With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer's market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS Gold certified efficiency. The compact size combined with the fully modular cable management allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat cables support builds even in very large gaming cases.

Voedingskabel (intern)

Producent
Productnummer
2911970
Model
GPX-850FC
EAN
0753263077202
Naar de website van de producent
Productbeschrijving
Chieftronic PowerUp Series 850W - voeding - 850 Watt
Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 2.53
80 PLUS-Certificatie
80 PLUS Gold
Gewicht
2.4 kg
Input Voltage
100-240 Volt wisselstroom V
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
850 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 70.5 A
-12V - 0.3 A
+5VSB - 2.5 A
Uitgangsaansluitingen
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
2 x voeding 8 pins +12V met afneembaar 4 pinsdeel
3 x 4-PIN interne voeding
9 x 15 pins Serial ATA-voeding
6 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 4-PIN mini-stroomconnector
Modulair kabelbeheer
Ja
Koelingsysteem
Ventilator van 120 mm
Afmetingen (BxDxH)
15 cm x 14 cm x 8.6 cm
Garantie van de fabrikant
5 jaar garantie

Algemeen

Type apparaat
Voeding - actieve Power Factor Correction (PFC) - intern
Naleving van specificatie
ATX12V 2.53
PSU-formaat
ATX

Voeding

Input Voltage
100-240 Volt wisselstroom V
Vereiste frequentie
47 - 63 Hz
Stroomuitgang Connector Details
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
2 x voeding 8 pins +12V met afneembaar 4 pinsdeel
3 x 4-PIN interne voeding
9 x 15 pins Serial ATA-voeding
6 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 4-PIN mini-stroomconnector
Output Voltage
+3.3, +5, ±12 V
Stroomcapaciteit
850 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 70.5 A
-12V - 0.3 A
+5VSB - 2.5 A
Modulair kabelbeheer
Ja
80 PLUS-Certificatie
80 PLUS Gold

Diversen

Koelingsysteem
Ventilator van 120 mm
Functies
Voltagebeschermer, bescherming tegen te hoog voltage, overbelastingsbescherming, kortsluitingsbeveiliging, bescherming tegen oververhitting, automatische bediening ventilatorsnelheid (AFC), inschakelstroombescherming (SIP), bescherming tegen onbelaste werking, geheel modulair
Conformiteitsnormen
TUV Rheinland, CB, EAC, RoHS, ErP Ready

Garantie van de fabrikant

Service & Support
Beperkte garantie - 5 jaar

Afmetingen & gewicht

Breedte
15 cm
Diepte
14 cm
Hoogte
8.6 cm
Gewicht
2.4 kg

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
