Productnummer: 3431654

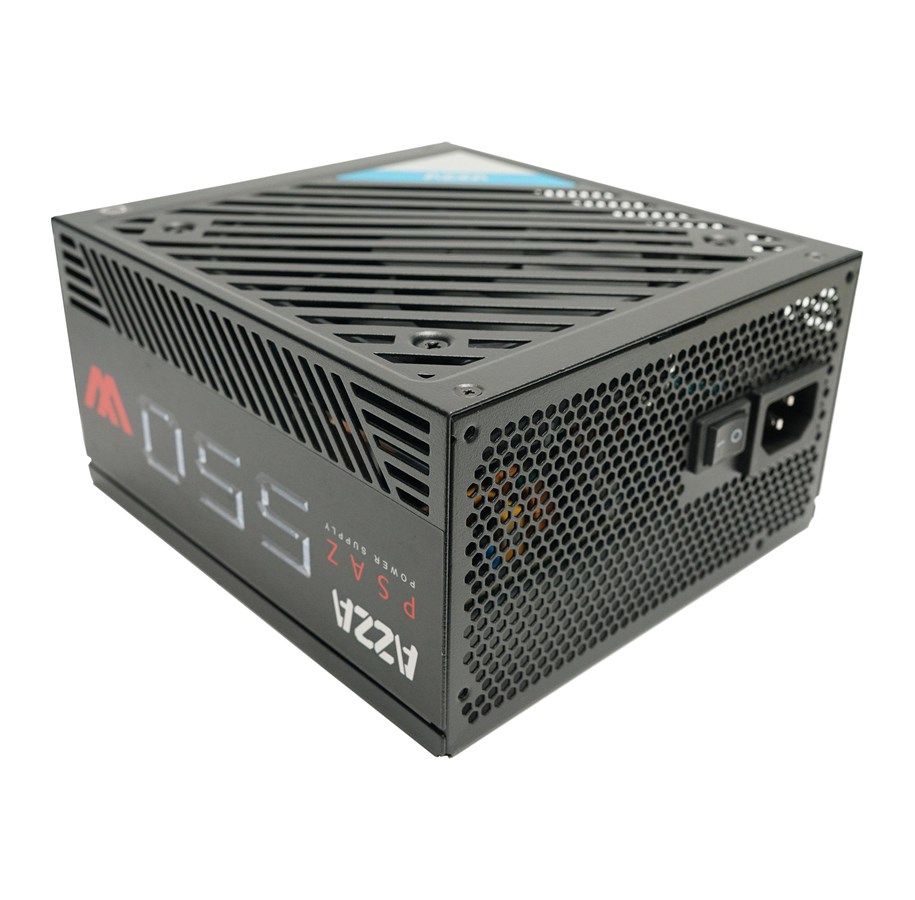

AZZA - power supply - 550 Watt Voeding - 550 Watt - 120 mm - ATX - 80 Plus 80 PLUS Bronze

Voeding (intern), ATX12V / EPS12V, 80 PLUS Bronze, AC 100-240/200-240 V, 550 Watt, zwart

48,46 € 40,05 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The AZZA PSAZ-550W power supply is a reliable solution designed to meet the demands of modern computing. With a total output of 550 W, it provides stable power for various components, ensuring seamless performance with every use. Equipped with an on/off switch for convenient control, this power supply adheres to various compliance standards such as TUV, FCC, RoHS, and more, ensuring safety and reliability in operation.This internal power supply utilizes a 120 mm cooling fan to maintain optimal temperatures, contributing to the longevity of your system. Additionally, it features a robust suite of protections, including overcurrent, overvoltage, overpower, undervoltage, and short-circuit protection, ensuring your components remain safe from potential electrical issues. With multiple output connectors, including the 24-pin ATX and PCI Express connections, the AZZA PSAZ-550W is versatile and ready to support a wide range of setup needs.

Voedingskabel (intern)

Producent
Productnummer
3431654
Model
PSAZ-550W
EAN
4712839557230
Naar de website van de producent
Productbeschrijving
AZZA - voeding - 550 Watt
Type apparaat
Voeding - intern
Naleving van specificatie
ATX12V / EPS12V
80 PLUS-Certificatie
80 PLUS Bronze
Input Voltage
AC 100-240/200-240 V
Output Voltage
DC +3.3, DC +5, DC ±12 V
Stroomcapaciteit
550 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 41 A
-12V - 0.4 A
+5VSB - 2.5 A
Uitgangsaansluitingen
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
5 x 15 pins Serial ATA-voeding
2 x 4-PIN interne voeding
2 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 4-PIN mini-stroomconnector
Koelingsysteem
Ventilator van 120 mm
Kleur
Zwart
Afmetingen (BxDxH)
15 cm x 16.5 cm x 8.6 cm

Algemeen

Type apparaat
Voeding - intern
Naleving van specificatie
ATX12V / EPS12V
PSU-formaat
ATX
Kleur
Zwart

Voeding

Input Voltage
AC 100-240/200-240 V
Vereiste frequentie
47 - 63 Hz
Stroomuitgang Connector Details
1 x voeding 24 pins-ATX met afneembaar 4 pin-deel
1 x voeding 8 pins-EPS12V met afneembaar 4 pins-ATX12V-deel
5 x 15 pins Serial ATA-voeding
2 x 4-PIN interne voeding
2 x 8 pins-PCI Express-voeding met afneembaar 2 pins-deel
1 x 4-PIN mini-stroomconnector
Output Voltage
DC +3.3, DC +5, DC ±12 V
Stroomcapaciteit
550 Watt
Stroomafgifte
+3.3V - 20 A
+5V - 20 A
+12V - 41 A
-12V - 0.4 A
+5VSB - 2.5 A
80 PLUS-Certificatie
80 PLUS Bronze

Diversen

Koelingsysteem
Ventilator van 120 mm
Functies
Aan-/uitschakelaar, overbelastingsbescherming, voltagebeschermer, bescherming tegen te hoog voltage, bescherming tegen te laag voltage, kortsluitingsbeveiliging, niet-modulair
Conformiteitsnormen
TUV, FCC, RoHS, EuP, EAC, RCM, TUV Rheinland

Garantie van de fabrikant

Service & Support
Beperkte garantie - 2 jaar

Afmetingen & gewicht

Breedte
15 cm
Diepte
16.5 cm
Hoogte
8.6 cm

Afmetingen & gewicht (transport)

Verzendbreedte
18.5 cm
Verzenddiepte
24 cm
Verzendhoogte
11.5 cm

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
