Productnummer: 3246944

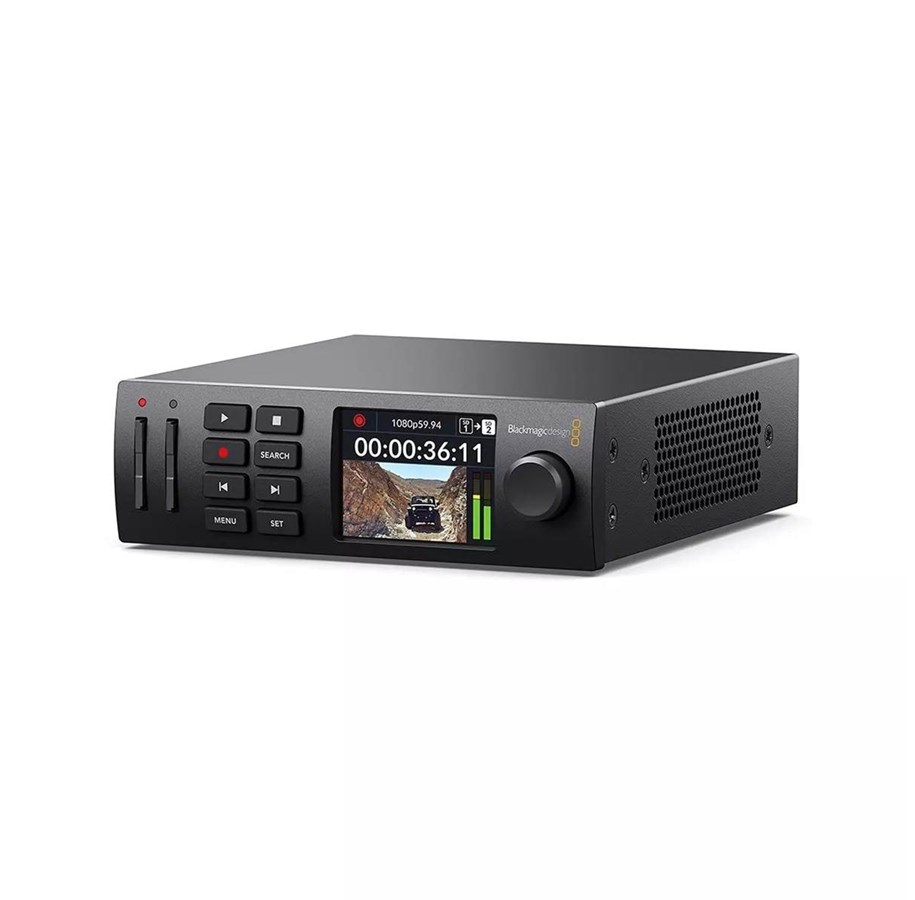

Blackmagic HyperDeck Studio HD Mini
Dual slot SD card broadcast deck
537,53 €
444,24 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
The Blackmagic HyperDeck Studio HD Mini is designed for modern broadcast needs, featuring dual slot SD card capability that allows for efficient recording and playback. This compact and versatile deck operationalizes seamlessly within a variety of setups, thanks to its wide range of connectivity options including SDI, HDMI, USB, and network interfaces. Built to perform in various environments, it operates effectively within a temperature range of 0°C to 40°C and can handle humidity levels up to 90% without condensation, ensuring reliability in diverse production settings. With a maximum power consumption of 50 W, it is both powerful and energy efficient, making it suitable for extended use.
Producent
Productnummer
3246944
Model
HYPERD/ST/DAHM
EAN
9338716007114
Naar de website van de producent
Productbeschrijving
Blackmagic HyperDeck Studio HD Mini dual slot SD card broadcast deck
Type
Dual slot SD card broadcast deck
Afmetingen (BxDxH)
14 cm - 17.7 cm - 4.42 cm
Gewicht
816 g
Algemeen
Type
Dual slot SD card broadcast deck
Breedte
14 cm
Diepte
17.7 cm
Hoogte
4.42 cm
Gewicht
816 g
Voeding
Vereiste netspanning
AC 120/230 V / DC 12 V AC 100-240 V / DC 12 V
Frequentie
50/60 Hz
Energieverbruik
50 Watt
Terminals
Terminals
(1) x SDI-ingang - BNC
(1) x SDI-uitgang - BNC
(1) x HDMI-uitgang - 19-pens HDMI Type A
(1) x USB - USB-C
(1) x invoer tijdscode - BNC
(1) x uitvoer tijdscode - BNC
(1) x REF-ingang - BNC
(1) x REF output - BNC
(1) x netwerk - RJ-45
(1) x serieel - 9-pens D-Sub (DB-9) - RS-422
(1) x gelijkstroominvoer
(1) x SDI-uitgang - BNC
(1) x HDMI-uitgang - 19-pens HDMI Type A
(1) x USB - USB-C
(1) x invoer tijdscode - BNC
(1) x uitvoer tijdscode - BNC
(1) x REF-ingang - BNC
(1) x REF output - BNC
(1) x netwerk - RJ-45
(1) x serieel - 9-pens D-Sub (DB-9) - RS-422
(1) x gelijkstroominvoer
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 90% (niet condenserend)
Garantie van de fabrikant
Garantie
1 jaar
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
