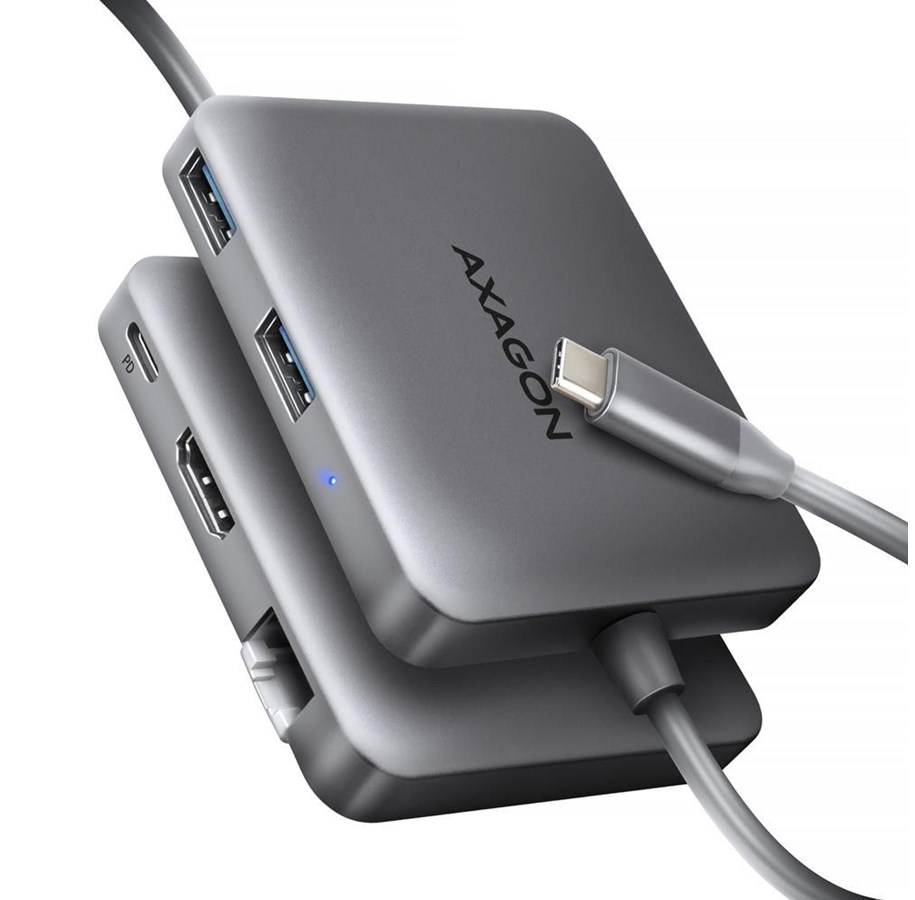

AXAGON SuperSpeed USB-C Hub USB hub - 5 - USB 3.0 - Zilver

The multi-port USB-C 5 Gbit/s hub AXAGON HMC-5HL expands your laptop with five ports, allowing you to connect a monitor, two USB devices and a Gigabit Ethernet network simultaneously via the double-sided USB-C connector, while also supplying power to your laptop using Power Delivery technology, providing a universal and powerful 5-in-1 docking station for modern laptops.

USB outputs:

• 2x USB 5 Gbit/s ports, USB-A female connectors
• 1x Power Delivery port (power only), USB-C female connector
• The hub can permanently connect up to two external drives
• Charging of mobile devices (including iPad) with a current of up to 1.5 A/5 V from the USB-A ports

Video output:

• 1x HDMI A port, HDMI A female connector
• 4K resolution 4096 x 2160 at up to 60 Hz
• 2K/WQHD resolution 2560 x 1440 at up to 120 Hz
• FHD resolution 1920 x 1080 at up to 240 Hz
• Requires a DisplayPort 1.4 enabled computer and a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or Thunderbolt 3/4
• HDR support (High Dynamic Range, 10-bit) for realistic light and dark detail reproduction
• HPD (Hot-Plug-Detect) support
• TMDS (Transition Minimized Differential Signalling) support
• Full HDCP 1.4 and 2.3 support
• Support for 2-channel audio up to 192 kHz/24-bit depending on source and end device

RJ-45 output:

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable
• Supported transmission rates: 10/100/1000 Mbit/s
• IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3ab 1000Base-T compliant
• Auto-detection 10/100/1000 Mbit/s
• Wake-on-LAN support

Power Delivery:

• Power Delivery 3.0 support – device charging via USB-C hub
• Maximum output 100 W (20 V/5 A)
• Requires compatible laptop/phone and PD wall charger

Other features:

• Hot Plug support for connecting devices while running
• Full Plug and Play support
• Standby mode support
• Power via USB bus or PD wall charger
• Heavy-duty aluminium body for cooling; heat is efficiently dissipated
• Blue LED indicates hub connection to the computer
• High-quality shielded cable ensures fast communication with minimal interference
• Dimensions 65 x 77 x 15 mm
• Weight 61 g
• USB-C male cable length 20 cm

Supported operating systems:

• Windows 10 / 11 and later, macOS, Linux, Android and Chrome OS
• Compatibility depends on operating system and device manufacturer
• DisplayPort Alternate Mode requires updated OS and device support
• Graphics drivers may affect operation; update to latest drivers recommended

Package contents:

• USB-C hub
• Multilingual manual (CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA)
• Packed in a cardboard box with a hanging hole
