Productnummer: 3479607

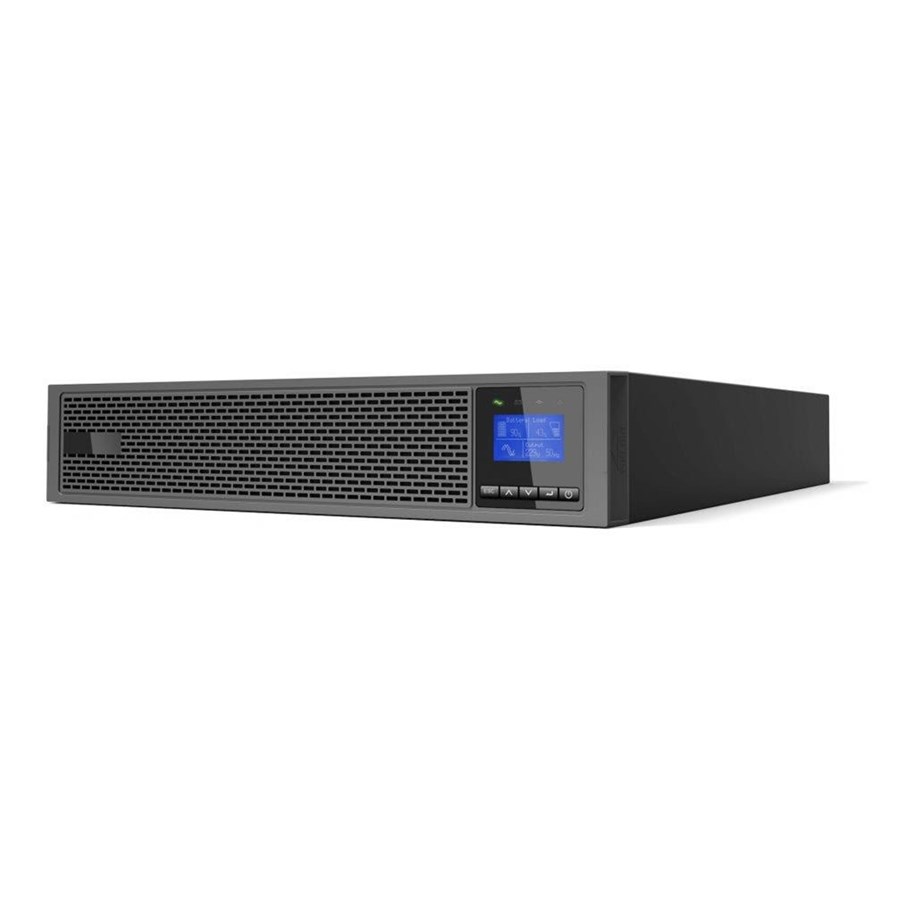

LevelOne Volta UPS-2102 - UPS - true online double conversion PF 1.0 generator compatible OVCD Protection cloud monitoring USB HID dry contact - 2000 watt - 2000 VA

UPS (rack-monteerbaar / extern), true online double conversion, PF 1.0, generator compatible, OVCD Protection, cloud monitoring, USB HID, dry contact, AC 160-300 V, 2000 watt, 2000 VA, 84 Wh, USB, RS-232, Ethernet, uitgangen: 8, zwart

787,08 € 650,48 € excl. BTW
Goedkoopste privé verzending 8,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The LevelOne Volta UPS-2102 is a reliable uninterruptible power supply designed to ensure continuous power for critical systems. With true online double conversion technology, it provides a stable power output with a power factor of 1.0, making it compatible with generators. This UPS is equipped with advanced features such as overvoltage protection and cloud monitoring, which keeps users informed of power status at all times. The unit also offers multiple connectivity options including USB, RS-232, and LAN interfaces, allowing for easy management and integration into existing systems.Featuring a robust design, the LevelOne Volta UPS-2102 operates effectively within a wide range of environmental conditions, with a minimum operating temperature of 0°C and a maximum of 40°C. The UPS is rack-mountable and includes a management USB interface for efficient oversight. With a power output of 2000 W and a battery capacity of 84 Wh, this UPS is equipped to handle various devices while maintaining peak performance levels, making it a suitable choice for both professional and home use.

Producent
Productnummer
3479607
Model
UPS-2102
EAN
4015867235027
Naar de website van de producent
Productbeschrijving
LevelOne Volta UPS-2102 - UPS - true online double conversion, PF 1.0, generator compatible, OVCD Protection, cloud monitoring, USB HID, dry contact - 2000 watt - 2000 VA
Type apparaat
UPS - rack-monteerbaar / extern
Gewicht
23 kg
Input Voltage
AC 160-300 V
Output Voltage
200-240 V wisselstroom V
Stroomcapaciteit
2000 watt / 2000 VA
Invoerconnectors
1 x voeding IEC 60320 C20
Uitgangsaansluitingen
8 x power IEC 60320 C13
Batterij
Loodzuur - 84 Wh
Aantal batterijen
6
Netwerkgebruik
USB, RS-232, Ethernet
Meegeleverde accessoires
Voetjes toren
Kleur
Zwart
Afmetingen (BxDxH)
43.8 cm x 44.5 cm x 8.55 cm

Algemeen

Type apparaat
UPS - rack-monteerbaar / extern
Kleur
Zwart

Voeding

UPS-technologie
On line
Input Voltage
AC 160-300 V
Frequentie meegeleverd
50/60 Hz
Invoerconnectors
1 x voeding IEC 60320 C20
Stroomuitgang Connector Details
8 x power IEC 60320 C13
Output Voltage
200-240 V wisselstroom V 50/60 Hz
Stroomcapaciteit
2000 watt / 2000 VA
Uitgangsgolfvorm
Sinusgolf
Vermogensfactor (PF)
1.0

Batterij

Aantal
6
Technologie
Loodzuur
Geleverde netspanning
72 V
Capaciteit
84 Wh
Herlaadtijd
3 uur

Netwerkgebruik

Remote Management Interface
USB, RS-232, Ethernet

Uitbreiding / Aansluiting

Interfaces
1 x beheer (USB) - 4-pins USB type B
1 x RS-232 - 9-pens D-Sub (DB-9)
1 x HDMI
2 x LAN - RJ-45
1 x EPO (emergency power off)
Uitbreidingssleuven
1 (totaal) / 1 (vrij) x Intelligent Slot

Diversen

Meegeleverde accessoires
Voetjes toren
Kabels meegeleverd
Voedingskabel
USB-kabel
Rackmontagekit
Inclusief
Functies
LCD-scherm, voltagebeschermer, detectie ventilatorvergrendeling, bescherming tegen oververhitting, overbelastingsalarm, compatibel met generator
Conformiteitsnormen
FCC, RoHS, IP20, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 90% RH

Afmetingen & gewicht

Breedte
43.8 cm
Diepte
44.5 cm
Hoogte
8.55 cm
Gewicht
23 kg
