Productnummer: 2987368

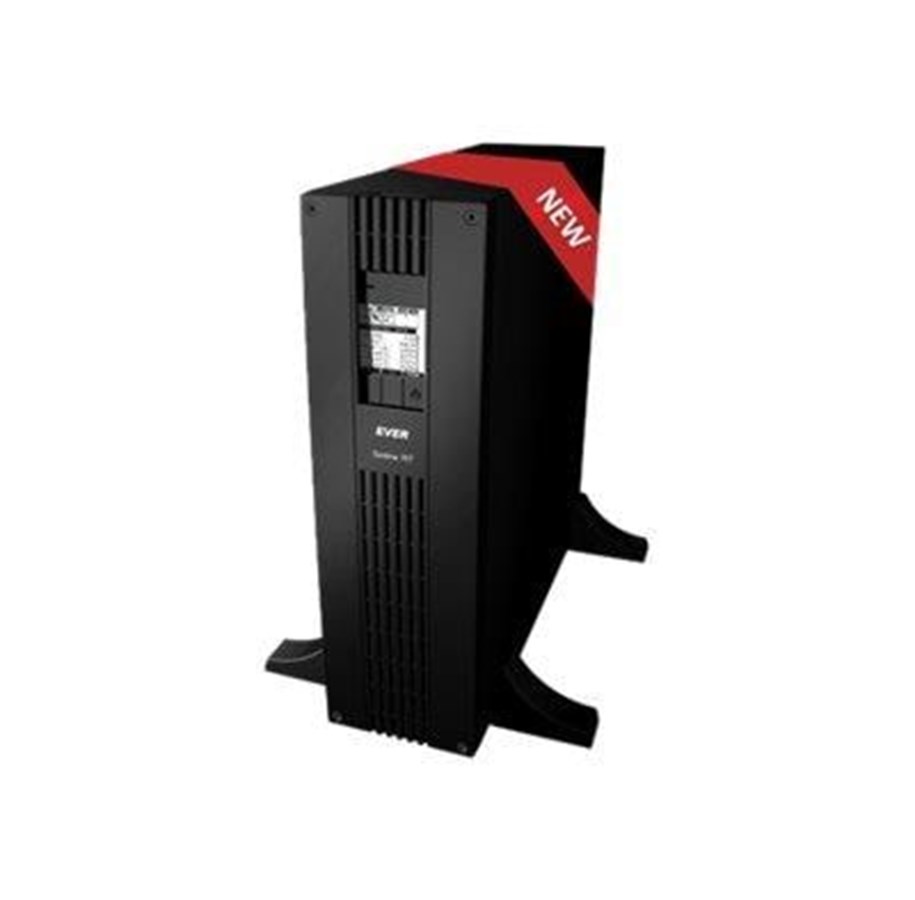

Ever SINLINE RT 2000
UPS (rack-monteerbaar / extern), 230 Volt wisselstroom V, 1650 watt, 2000 VA, 7 ampère-uur, Ethernet, USB, uitgangen: 8, 3U
952,33 €
787,05 € excl. BTW
Goedkoopste privé verzending 8,99 €
Bestelproduct, 11 - 12 werkdagen levertijd
SINLINE RT is the newest range of technologically advanced UPS units designed mainly for computer servers, small computer networks, workstations and other electrical, electronic ad IT systems. With the universal Rack/Tower housing the UPS orientation can be changed quickly.In battery operation mode, the Clear Digital Sinus (CDS) system used in this series of UPS units generates a sinusoidal waveform at output. AVR, a built-in system for regulating (increasing and decreasing) the mains voltage adjusts incorrect input voltage to a level that is acceptable to the receivers, without the use of battery power. The unit's battery charging system with thermal compensation additionally protects the built-in batteries, prolongs their life and consequently leads to reduced maintenance costs.In the SINLINE RT series units the battery can be replaced by the user. The units also feature an extensive communication system that uses an integrated network management card (for SNMPv2 and HTTP protocols) and HID USB, a communication interface for linking the UPS with other devices without the necessity to install software.
Producent
Productnummer
2987368
Model
W/SRTLRT-002K00/00
EAN
5907683603731
Naar de website van de producent
Productbeschrijving
EVER SINLINE RT 2000 - UPS - 1650 watt - 2000 VA
Type apparaat
UPS - rack-monteerbaar / extern
Grootte rack
3U
Gewicht
26 kg
Input Voltage
230 Volt wisselstroom V
Output Voltage
230 Volt wisselstroom V ± 5%
Stroomcapaciteit
1650 watt / 2000 VA
Invoerconnectors
1 x voeding IEC 60320 C20 16A
Uitgangsaansluitingen
6 x power IEC 60320 C13
2 x stroom
2 x stroom
Batterij
- 7 ampère-uur
Aantal batterijen
4
Looptijd (maximaal)
3 min. bij volledige belasting
Netwerkgebruik
Ethernet, USB
Protocol voor beheer op afstand
SNMP 2, HTTP
Afmetingen (BxDxH)
13.2 cm x 46 cm x 44 cm
Algemeen
Type apparaat
UPS - rack-monteerbaar / extern
Hoogte (rekeenheden)
3U
Voeding
UPS-technologie
Line interactive
Input Voltage
230 Volt wisselstroom V
Bereik ingangsspanning
178 - 281 V wisselstroom
Frequentie meegeleverd
50 Hz
Vereiste frequentie
45 - 55 Hz
Invoerconnectors
1 x voeding IEC 60320 C20 16A
Stroomuitgang Connector Details
6 x power IEC 60320 C13
2 x stroom
2 x stroom
Output Voltage
230 Volt wisselstroom V ± 5% - 50 Hz
Stroomcapaciteit
1650 watt / 2000 VA
Uitgangsgolfvorm
Sinusgolf
Stroompiekonderdrukking
Ja
Circuitbeveiliging
Stroomonderbreker
Batterij
Aantal
4
Geleverde netspanning
12 V
Capaciteit
7 ampère-uur
Run time (tot aan)
3 min bij volledige belasting
4 min bij 80% belasting
6 min bij halve lading
4 min bij 80% belasting
6 min bij halve lading
Herlaadtijd
4 uur
Netwerkgebruik
Remote Management Interface
Ethernet, USB
Protocol voor beheer op afstand
SNMP 2, HTTP
Uitbreiding / Aansluiting
Interfaces
1 x beheer (Ethernet) - RJ-45
1 x USB - 4-pins USB type B
1 x USB - 4-pins USB type B
Diversen
Rackmontagekit
Optioneel
Functies
Ingebouwde koelventilator, hoorbaar alarm, LCD-scherm, Automatic Voltage Regulation (AVR), LED-indicators, Clear Digital Sinus (CDS), overbelastingsbescherming, overladingsbescherming, koude start-functie, kortsluitingsbeveiliging, firmware die kan worden opgewaardeerd
Conformiteitsnormen
EN 62040-2, EN 62040-1
Software / Systeemvereisten
Software meegeleverd
PowerSoft Professional
Garantie van de fabrikant
Service & Support
Beperkte garantie - 3 jaar
Beperkte garantie - batterijen - 2 jaar
Beperkte garantie - batterijen - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
20 - 80% (niet condenserend)
Afmetingen & gewicht
Breedte
13.2 cm
Diepte
46 cm
Hoogte
44 cm
Gewicht
26 kg
Afmetingen & gewicht (transport)
Verzendbreedte
54.7 cm
Verzenddiepte
59.5 cm
Verzendhoogte
24.7 cm
Verzendgewicht
28.5 kg
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
