Productnummer: 3472596

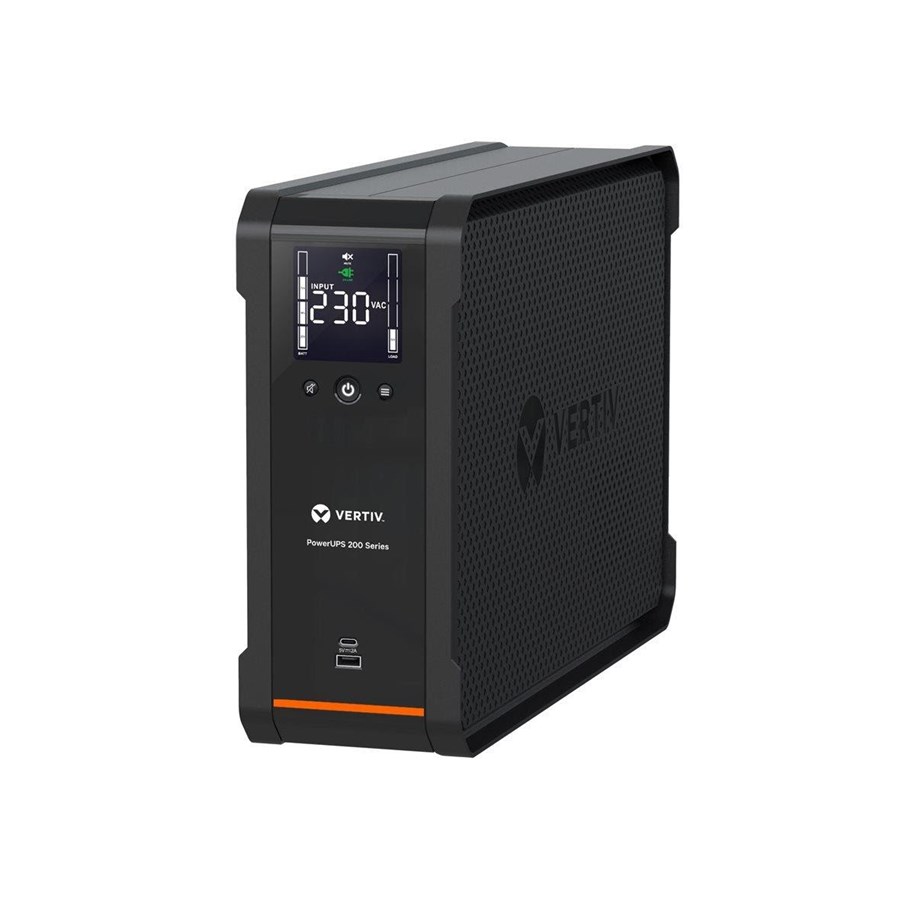

Emerson Network Power Vertiv PSA6-1600IT-SCH - UPS - 1000 Watt - 1600 VA

UPS, AC 220, 240 V, 1000 Watt, 1600 VA, 1-fase, uitgangen: 6

431,01 € 356,21 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd

The Vertiv PSA6-1600IT-SCH is an efficient external UPS designed to ensure reliable power protection for your devices. With a power capacity of 1600 VA and a power output of 1000 W, it effectively handles varied load types, providing up to 10 minutes of run time at half load and 2 minutes at full load. Equipped with Automatic Voltage Regulation (AVR) and Extended Power Performance (EPP), this UPS maintains stable voltage levels and optimizes performance to shield equipment from unexpected power issues. This unit features multiple output connectors, including 6 power Type F connectors, ensuring compatibility with various devices. The sound emission level is capped at 45 dBA, making it suitable for noise-sensitive environments. Furthermore, it adheres to a wide range of compliance standards, including IEC 61000-4-5 and EN 61000-3-3, reflecting its reliable performance and safe operation across diverse settings.

Productnummer
3472596
Model
PSA6-1600IT-SCH
EAN
767041045123
Naar de website van de producent
Productbeschrijving
Vertiv PSA6-1600IT-SCH - UPS - 1000 Watt - 1600 VA
Type apparaat
UPS - extern
Gewicht
11.8 kg
Bedradingsingang
1-fase
Input Voltage
AC 220 - 240 V
Output Voltage
AC 220 - 240 V
Stroomcapaciteit
1000 Watt / 1600 VA
Invoerconnectors
1 x voeding IEC 60320 C14
Uitgangsaansluitingen
6 x voeding type F
Batterij
Loodzuur
Aantal batterijen
1
Looptijd (maximaal)
2 min. bij volledige belasting
Afmetingen (BxDxH)
12 cm x 43 cm x 29 cm

Algemeen

Type apparaat
UPS - extern

Voeding

UPS-technologie
Line interactive
Input Voltage
AC 220 - 240 V
Bereik ingangsspanning
140 - 290 V wisselstroom
Frequentie meegeleverd
50/60 Hz ± 1 Hz
Bedradingsingang
1-fase
Vereiste frequentie
50/60 Hz
Invoerconnectors
1 x voeding IEC 60320 C14
Stroomuitgang Connector Details
6 x voeding type F
Output Voltage
AC 220 - 240 V 50/60 Hz
Stroomcapaciteit
1000 Watt / 1600 VA
Uitgangsgolfvorm
Sinusgolf
Energiebeoordeling
600 Joules
Circuitbeveiliging
Stroomonderbreker
Efficiëntie
95%

Batterij

Aantal
1
Technologie
Loodzuur
Run time (tot aan)
2 min bij volledige belasting
10 min bij halve lading
Functies
Reguleren met klep

Uitbreiding / Aansluiting

Interfaces
1 x USB - 4-pins USB type B
1 x USB - 4 pin USB Type A
1 x USB - 24 pin USB-C
2 x LAN - RJ-45

Diversen

Kabels meegeleverd
Voedingskabel 1.8 m
Functies
Automatic Voltage Regulation (AVR), Verlengde Energieprestaties (EPP)
Conformiteitsnormen
CB, IEC/EN 62040-1, UKCA, RCM, EAC, IEC/EN 62040-2, EN IEC 61000-3-2, EN 61000-3-3, IEC 61000-4-5, ISTA 3A, REACH, RoHS, WEEE

Garantie van de fabrikant

Service & Support
Beperkte garantie - 3 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 90% RH
Geluidsemissie
45 dBA

Afmetingen & gewicht

Breedte
12 cm
Diepte
43 cm
Hoogte
29 cm
Gewicht
11.8 kg

Afmetingen & gewicht (transport)

Verzendbreedte
21.5 cm
Verzenddiepte
51 cm
Verzendhoogte
37 cm
Verzendgewicht
14 kg
