Productnummer: 2425568

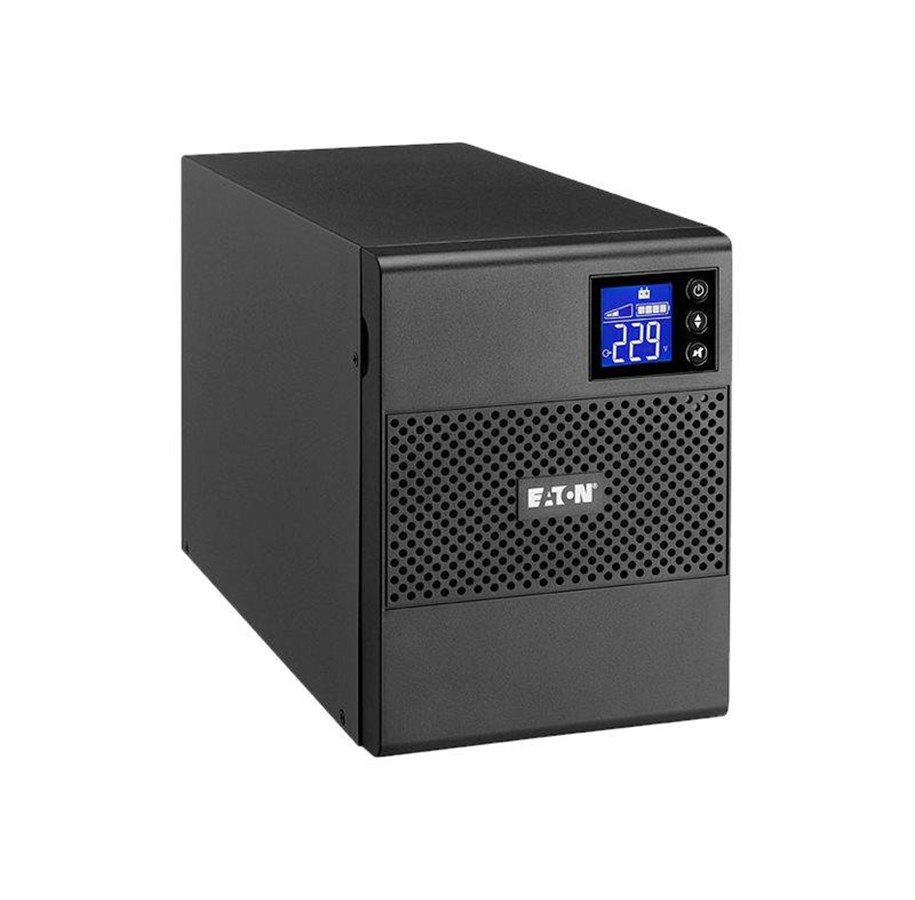

Eaton 5SC500i - 5SC - 500VA/350W
UPS, 230 Volt wisselstroom V, 350 Watt, 500 VA, RS-232, USB, uitgangen: 4, zwart
219,86 €
181,70 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
Eaton 5SC 500VA UPS provides line-interactive, affordable and reliable protection for small business servers. It includes a LCD interface for real time status and measurement.
This unit also possesses the Advanced Battery Management (ABM) technology that increases battery lifetime. It is line interactive with Automatic Voltage Regulation (AVR). With its 4 IEC outputs and compact design the 5SC fits anywhere easily.
This unit also possesses the Advanced Battery Management (ABM) technology that increases battery lifetime. It is line interactive with Automatic Voltage Regulation (AVR). With its 4 IEC outputs and compact design the 5SC fits anywhere easily.
Producent
Productnummer
2425568
Model
5SC500i
EAN
743172045140
Naar de website van de producent
Productbeschrijving
Eaton 5SC 500i - UPS - 350 watt - 500 VA
Type apparaat
UPS - extern
Gewicht
6.6 kg
Input Voltage
230 Volt wisselstroom V
Output Voltage
230 Volt wisselstroom V + 6% / - 10%
Stroomcapaciteit
350 watt / 500 VA
Invoerconnectors
1 x voeding IEC 60320 C14
Uitgangsaansluitingen
4 x power IEC 60320 C13
Looptijd (maximaal)
5 min. bij volledige belasting
Netwerkgebruik
RS-232, USB
Kleur
Zwart
Afmetingen (BxDxH)
15 cm x 24 cm x 21 cm
Algemeen
Type apparaat
UPS - extern
Kleur
Zwart
Voeding
UPS-technologie
Line interactive
Input Voltage
230 Volt wisselstroom V
Bereik ingangsspanning
184 - 276 V wisselstroom
Frequentie meegeleverd
50/60 Hz
Vereiste frequentie
50/60 Hz
Invoerconnectors
1 x voeding IEC 60320 C14
Stroomuitgang Connector Details
4 x power IEC 60320 C13
Output Voltage
230 Volt wisselstroom V + 6% / - 10% - 50/60 Hz
Stroomcapaciteit
350 watt / 500 VA
Uitgangsgolfvorm
Sinusgolf
Efficiëntie
97%
Batterij
Run time (tot aan)
5 min bij volledige belasting
13 min bij halve lading
9 min bij 70% belasting
13 min bij halve lading
9 min bij 70% belasting
Netwerkgebruik
Remote Management Interface
RS-232, USB
Uitbreiding / Aansluiting
Interfaces
1 x beheer (USB) - 4-pins USB type B
1 x beheer (RS-232) - 9-pens D-Sub (DB-9)
1 x beheer (RS-232) - 9-pens D-Sub (DB-9)
Diversen
Functies
Geavanceerd batterijbeheer (Advance Battery Management (ABM)), LCD-scherm, diepe ontlaadbescherming
Conformiteitsnormen
UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
Garantie van de fabrikant
Service & Support
Beperkte garantie - 2 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
35 °C
Geluidsemissie
40 dB
Afmetingen & gewicht
Breedte
15 cm
Diepte
24 cm
Hoogte
21 cm
Gewicht
6.6 kg
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
