Productnummer: 3503157

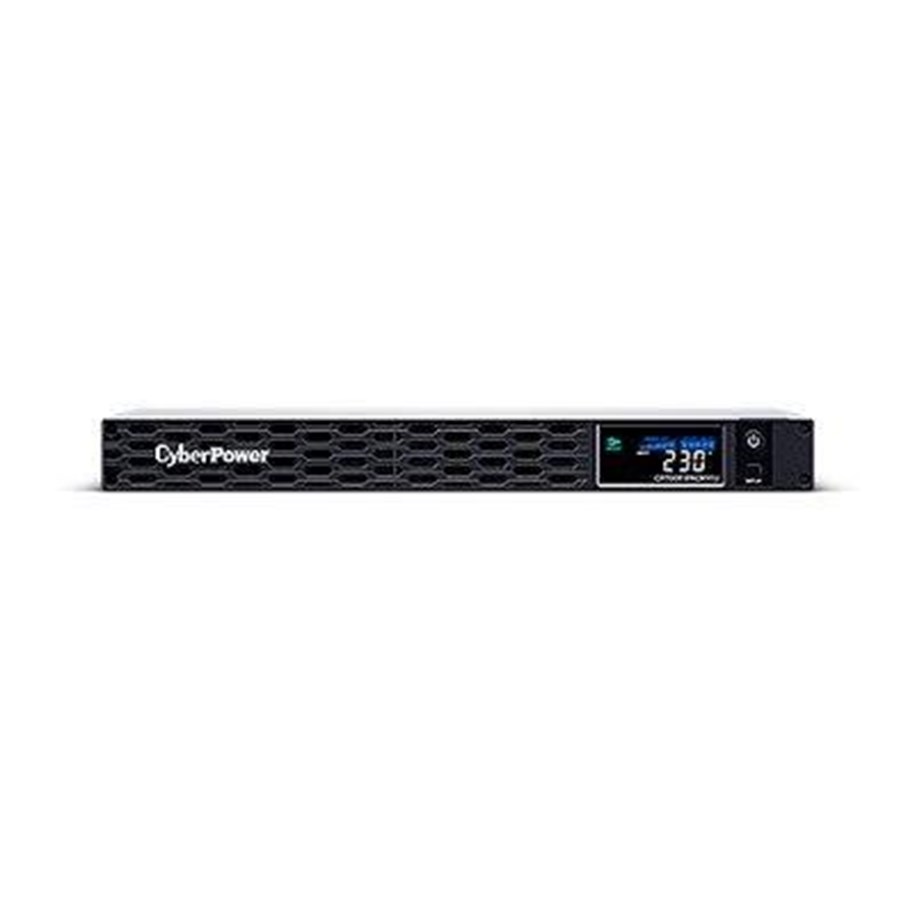

CyberPower PFC Sinewave (E) Series CP700EIPFCRM1U - UPS - 420 watt - 800 VA

UPS (rack-uitvoering), 220/230/240 Volt wisselstroom V, 420 watt, 800 VA, USB, serial, uitgangen: 6, actieve PFC, 1U, 1.83 m kabel, zilver

360,45 € 297,89 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 13 - 14 werkdagen levertijd

The CyberPower PFC Sinewave (E) Series CP700EIPFCRM1U is a compact and reliable UPS solution designed for performance in critical environments. This rack-mountable unit provides pure sine wave output to ensure the safe operation of connected devices, with a power capacity of 800 VA and a total output power of 420 watts. With an input voltage range of AC 165 - 271 V, it efficiently handles power fluctuations while maintaining a stable voltage margin of ± 5%. Equipped with advanced features like Automatic Voltage Regulation (AVR) and GreenPower UPS Bypass Technology, this UPS enhances efficiency and contributes to energy savings during operation.The product includes a sealed lead acid battery with hot-swappable capabilities, enabling users to replace batteries without downtime. It also features a user-friendly LCD display and LED indicators for easy monitoring of system status. With a surge energy rating of 450 joules and comprehensive circuit protection, the CP700EIPFCRM1U safely guards against unexpected power surges. Additional functionalities include network surge protection, audible alarms, and remote management capabilities through USB and serial interfaces, making this UPS an essential addition to any critical power setup.

Producent
Productnummer
3503157
Model
CP700EIPFCRM1U
EAN
4711027798226
Naar de website van de producent
Productbeschrijving
CyberPower PFC Sinewave (E) Series CP700EIPFCRM1U - UPS - 420 watt - 800 VA
Type apparaat
UPS - actieve Power Factor Correction (PFC) - rack-uitvoering
Snoerlengte
1.83 m
Grootte rack
1U
Gewicht
8.3 kg
Input Voltage
220/230/240 Volt wisselstroom V
Output Voltage
230 Volt wisselstroom V ± 5%
Stroomcapaciteit
420 watt / 800 VA
Invoerconnectors
1 x voeding IEC 60320 C14
Uitgangsaansluitingen
4 x power IEC 60320 C13 (UPS en hoge golf)
2 x power IEC 60320 C13 (hoge golf)
Batterij
Loodzuur
Aantal batterijen
1
Looptijd (maximaal)
2 min. bij volledige belasting
Netwerkgebruik
USB, serial
Kleur
Zilver
Afmetingen (BxDxH)
43.3 cm x 22.97 cm x 4.4 cm

Algemeen

Type apparaat
UPS - actieve Power Factor Correction (PFC) - rack-uitvoering
Hoogte (rekeenheden)
1U
Snoerlengte
1.83 m
Kleur
Zilver

Voeding

UPS-technologie
Line interactive
Input Voltage
220/230/240 Volt wisselstroom V
Bereik ingangsspanning
AC 165 - 271 V
Bereik ingangsspanning (instelbaar)
253 - 271 / 189 - 207 V wisselstroom
Frequentie meegeleverd
50/60 Hz ± 1%
Vereiste frequentie
50/60 Hz ± 3Hz
Invoerconnectors
1 x voeding IEC 60320 C14
Stroomuitgang Connector Details
4 x power IEC 60320 C13 (UPS en hoge golf)
2 x power IEC 60320 C13 (hoge golf)
Output Voltage
230 Volt wisselstroom V ± 5% - 50/60 Hz
Maximum elektrische stroom
10 A
Stroomcapaciteit
420 watt / 800 VA
Datalijnbescherming tegen stroompieken
Netwerk - RJ-45 - 1 invoerlijn / 1 uitvoerlijn
Uitgangsgolfvorm
Pure sinusgolf
Stroompiekonderdrukking
Ja
Energiebeoordeling
450 joules
Circuitbeveiliging
Stroomonderbreker
Vermogensfactor (PF)
0.6

Batterij

Aantal
1
Technologie
Loodzuur
Run time (tot aan)
2 min bij volledige belasting
9.6 min bij halve lading
Herlaadtijd
8 uur
Functies
Afgesloten

Netwerkgebruik

Remote Management Interface
USB, serial

Uitbreiding / Aansluiting

Interfaces
1 x beheer (USB) - 4-pins USB type B
1 x serieel - 9-pens D-Sub (DB-9)
Uitbreidingssleuven
1 (totaal) / 1 (vrij) x uitbreidingsslot

Diversen

Kabels meegeleverd
Voedingskabel 1.83 m
USB-kabel
Rackmontagekit
Inclusief
Functies
Metalen behuizing, GreenPower UPS Bypass Technology, zonder uitschakelen verwisselbare batterijen, door gebruiker te vervangen batterijen, hoorbaar alarm, LCD-scherm, ondersteuning voor mens-machinekoppelingen (HID - Human Interface Device), LED-indicators, overladingsbescherming, Automatic Voltage Regulation (AVR)
Conformiteitsnormen
RCM, RoHS

Software / Systeemvereisten

Software meegeleverd
PowerPanel Business

Garantie van de fabrikant

Service & Support
Beperkte garantie - 3 jaar

Omgevingsparameters

Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 95% (niet condenserend)

Afmetingen & gewicht

Breedte
43.3 cm
Diepte
22.97 cm
Hoogte
4.4 cm
Gewicht
8.3 kg

Afmetingen & gewicht (transport)

Verzendbreedte
53 cm
Verzenddiepte
28 cm
Verzendhoogte
15.5 cm
Verzendgewicht
9.02 kg

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
