Productnummer: 3513946

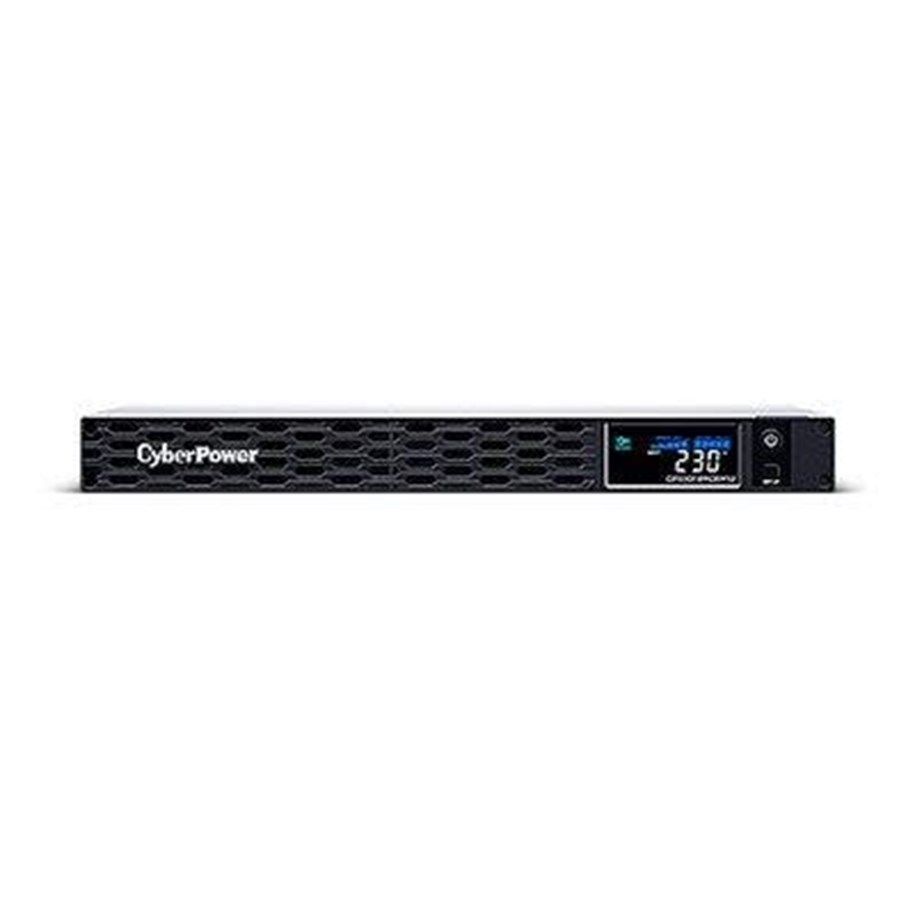

CyberPower PFC Sinewave (E) Series CP500EIPFCRM1U - UPS - 300 watt - 500 VA
UPS (rack-uitvoering), 220/230/240 Volt wisselstroom V, 300 watt, 500 VA, USB, serial, uitgangen: 6, actieve PFC, 1U, 1.83 m kabel, zilver
330,40 €
273,06 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 10 - 11 werkdagen levertijd
The CyberPower PFC Sinewave (E) Series CP500EIPFCRM1U offers reliable power protection in a compact, rack-mountable design. This uninterruptible power supply (UPS) unit is equipped with a pure sine wave output, ensuring the safe operation of sensitive electronics during power outages or fluctuations. With a power capacity of 500 VA and 300 watts, this UPS effectively supports critical devices, providing an uptime of up to 10.9 minutes at half load and 2.3 minutes at full load. This system also features lead acid batteries that are user-replaceable and hot-swappable, allowing for minimal downtime and easy maintenance. Incorporating advanced technologies, the device includes Automatic Voltage Regulation (AVR) and active Power Factor Correction (PFC) to ensure optimal performance. The UPS is also equipped with six output connectors, surge suppression capabilities, and an audible alarm for alerts. Various features, including an LCD display for monitoring, LED indicators, and support for a remote management interface via USB or serial, make this product convenient and user-friendly. Its sturdy metal housing and compliance with RCM and RoHS standards add to its durability and environmental considerations.
Producent
Productnummer
3513946
Model
CP500EIPFCRM1U
EAN
4711027797953
Naar de website van de producent
Productbeschrijving
CyberPower PFC Sinewave (E) Series CP500EIPFCRM1U - UPS - 300 watt - 500 VA
Type apparaat
UPS - actieve Power Factor Correction (PFC) - rack-uitvoering
Snoerlengte
1.83 m
Grootte rack
1U
Gewicht
7.32 kg
Input Voltage
220/230/240 Volt wisselstroom V
Output Voltage
230 Volt wisselstroom V ± 5%
Stroomcapaciteit
300 watt / 500 VA
Invoerconnectors
1 x voeding IEC 60320 C14
Uitgangsaansluitingen
4 x power IEC 60320 C13 (UPS en hoge golf)
2 x power IEC 60320 C13 (hoge golf)
2 x power IEC 60320 C13 (hoge golf)
Batterij
Loodzuur
Aantal batterijen
1
Looptijd (maximaal)
2.3 min. bij volledige belasting
Netwerkgebruik
USB, serial
Kleur
Zilver
Afmetingen (BxDxH)
43.3 cm x 22.97 cm x 4.4 cm
Algemeen
Type apparaat
UPS - actieve Power Factor Correction (PFC) - rack-uitvoering
Hoogte (rekeenheden)
1U
Snoerlengte
1.83 m
Kleur
Zilver
Voeding
UPS-technologie
Line interactive
Input Voltage
220/230/240 Volt wisselstroom V
Bereik ingangsspanning
AC 165 - 271 V
Bereik ingangsspanning (instelbaar)
253 - 271 / 189 - 207 V wisselstroom
Frequentie meegeleverd
50/60 Hz ± 1%
Vereiste frequentie
50/60 Hz ± 3Hz
Invoerconnectors
1 x voeding IEC 60320 C14
Stroomuitgang Connector Details
4 x power IEC 60320 C13 (UPS en hoge golf)
2 x power IEC 60320 C13 (hoge golf)
2 x power IEC 60320 C13 (hoge golf)
Output Voltage
230 Volt wisselstroom V ± 5% - 50/60 Hz
Maximum elektrische stroom
10 A
Stroomcapaciteit
300 watt / 500 VA
Datalijnbescherming tegen stroompieken
Netwerk - RJ-45 - 1 invoerlijn / 1 uitvoerlijn
Uitgangsgolfvorm
Pure sinusgolf
Stroompiekonderdrukking
Ja
Energiebeoordeling
450 joules
Circuitbeveiliging
Stroomonderbreker
Vermogensfactor (PF)
0.6
Batterij
Aantal
1
Technologie
Loodzuur
Run time (tot aan)
2.3 min bij volledige belasting
10.9 min bij halve lading
10.9 min bij halve lading
Herlaadtijd
8 uur
Functies
Afgesloten
Netwerkgebruik
Remote Management Interface
USB, serial
Uitbreiding / Aansluiting
Interfaces
1 x beheer (USB) - 4-pins USB type B
1 x serieel - 9-pens D-Sub (DB-9)
1 x serieel - 9-pens D-Sub (DB-9)
Uitbreidingssleuven
1 (totaal) / 1 (vrij) x uitbreidingsslot
Diversen
Kabels meegeleverd
Voedingskabel 1.83 m
USB-kabel
USB-kabel
Rackmontagekit
Inclusief
Functies
Metalen behuizing, GreenPower UPS Bypass Technology, zonder uitschakelen verwisselbare batterijen, door gebruiker te vervangen batterijen, hoorbaar alarm, LCD-scherm, ondersteuning voor mens-machinekoppelingen (HID - Human Interface Device), LED-indicators, overladingsbescherming, Automatic Voltage Regulation (AVR)
Conformiteitsnormen
RCM, RoHS
Software / Systeemvereisten
Software meegeleverd
PowerPanel Business
Garantie van de fabrikant
Service & Support
Beperkte garantie - 3 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 95% (niet condenserend)
Afmetingen & gewicht
Breedte
43.3 cm
Diepte
22.97 cm
Hoogte
4.4 cm
Gewicht
7.32 kg
Afmetingen & gewicht (transport)
Verzendbreedte
53 cm
Verzenddiepte
28 cm
Verzendhoogte
15.5 cm
Verzendgewicht
8.04 kg
