Productnummer: 2987099

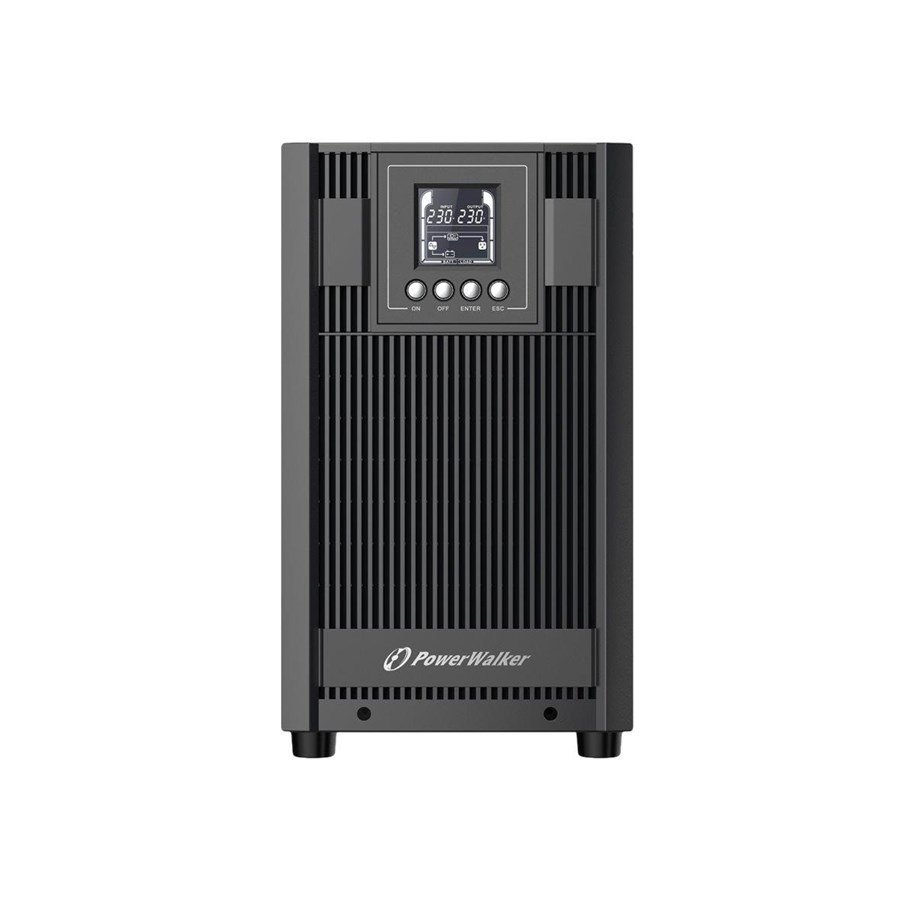

BlueWalker 10122185 - VFI 3000 AT - 3000VA/2700W - On-Line UPS
VFI 3000 AT 3000VA/2700W UPS met USB Connection Uitgangsverbindingen
- Specificaties
- Uitgangsvermogen Capaciteit (VA): 3000VA
- Uitgangsvermogen (W): 2700W
- Topologie: On-Line
- Golfvorm: Pure Sine Wave
- Uitgangsverbindingen: 4 x Schuko CEE 7/5
- Ingangsverbindingen: IEC C20
- Highlights
- AVR
- USB Connection
- Intelligent Slot
- Waarschuwing
- French Outlets
452,82 €
374,23 € excl. BTW
Goedkoopste privé verzending 8,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
PowerWalker VFI 3000 AT is an Online UPS series with double-conversion technology, designed to safeguard your mission-critical equipment. Despite its professional application, the VFI AT series is easy to operate and comes inside a compact and economic package.
Producent
Productnummer
2987099
Model
10122185
EAN
4260074982503
Naar de website van de producent
UPS-topologie
Dubbele conversie (online)
Output power capacity
3 kVA
Uitgangsvermogen
2700 W
Golfvorm
Zuivere sinus
Ingang operation voltage (min)
80 V
Ingang operation voltage (max)
300 V
Frequentie
40 - 70 Hz
Uitgang operation voltage (min)
208 V
Uitgang operation voltage (max)
240 V
Uitgangsfrequentieregeling
±0.5 Hz
Uitgangsspanningsregeling
±1 procent
Responstijd
0 ms
Efficientie
91 procent
Input vermogensfactor
0,99
Output vermogensfactor
0,9
Crest factor
3:1
Output voltage THD
5 procent
Stopcontacttypes
Type E
Stekker
C20 stekker
Aantal AC uitgangen
4 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
1
USB-poorttype
USB Type-B
RS-232 port
1
Batterij capaciteit
9 Ah
Accu/Batterij voltage
12 V
Ondersteund aantal accu's/batterijen
6
Typische backup tijd op volledige lading
3,5 min
Typische backup tijd op halve lading
11 min
Accu/Batterij oplaadtijd
4 uur
Vormfactor
Tower
Kleur van het product
Zwart
Ingebouwde ventilator
Ja
Type beeldscherm
LCD
Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 90 procent
Meegeleverde kabels
RS-232, USB-kabel
Breedte
196 mm
Diepte
416 mm
Hoogte
342 mm
Gewicht
25,4 kg
Breedte verpakking
294 mm
Diepte verpakking
512 mm
Hoogte verpakking
458 mm
Gewicht verpakking
27,1 kg
Code geharmoniseerd systeem (HS)
85078000
Kenmerken
UPS-topologie
Dubbele conversie (online)
Output power capacity
3 kVA
Uitgangsvermogen
2700 W
Golfvorm
Zuivere sinus
Ingang operation voltage (min)
80 V
Ingang operation voltage (max)
300 V
Frequentie
40 - 70 Hz
Uitgang operation voltage (min)
208 V
Uitgang operation voltage (max)
240 V
Uitgangsfrequentieregeling
±0.5 Hz
Uitgangsspanningsregeling
±1 procent
Responstijd
0 ms
Efficientie
91 procent
Input vermogensfactor
0,99
Output vermogensfactor
0,9
Crest factor
3:1
Output voltage THD
5 procent
Poorten & interfaces
Stopcontacttypes
Type E
Stekker
C20 stekker
Aantal AC uitgangen
4 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
1
USB-poorttype
USB Type-B
RS-232 port
1
Accu/Batterij
Batterij capaciteit
9 Ah
Accu/Batterij voltage
12 V
Ondersteund aantal accu's/batterijen
6
Typische backup tijd op volledige lading
3,5 min
Typische backup tijd op halve lading
11 min
Accu/Batterij oplaadtijd
4 uur
Design
Vormfactor
Tower
Kleur van het product
Zwart
Ingebouwde ventilator
Ja
Type beeldscherm
LCD
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 90 procent
Inhoud van de verpakking
Meegeleverde kabels
RS-232, USB-kabel
Gewicht en omvang
Breedte
196 mm
Diepte
416 mm
Hoogte
342 mm
Gewicht
25,4 kg
Verpakking
Breedte verpakking
294 mm
Diepte verpakking
512 mm
Hoogte verpakking
458 mm
Gewicht verpakking
27,1 kg
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85078000
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
