Productnummer: 2791127

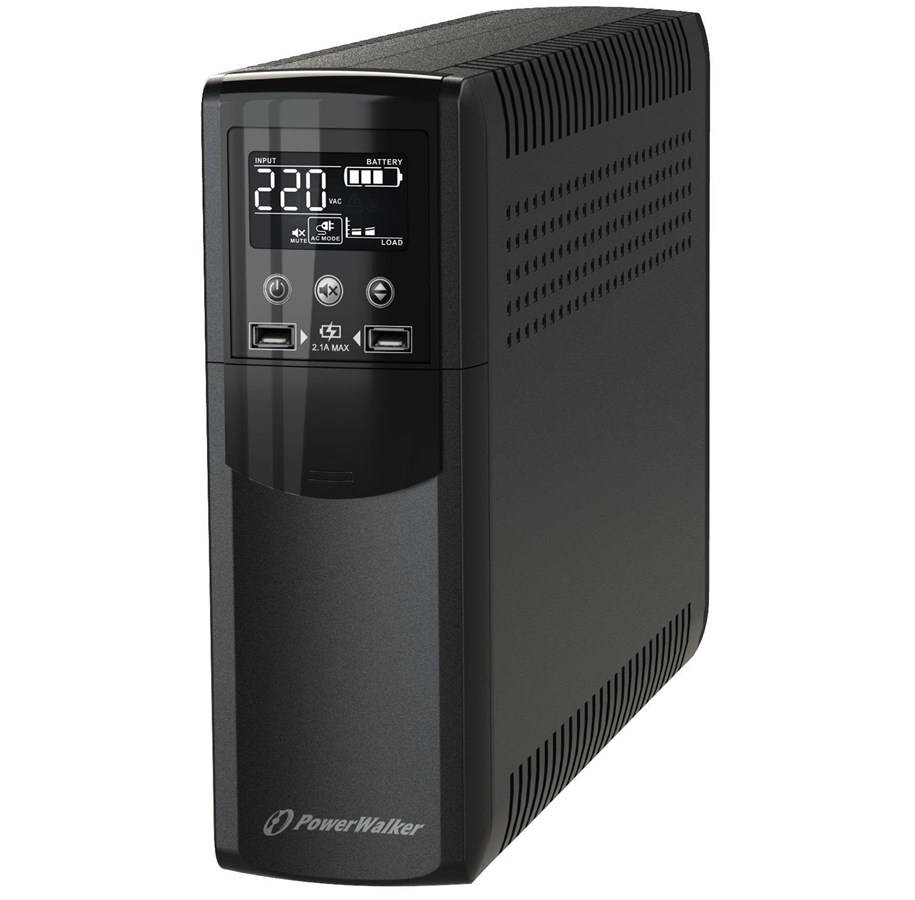

BlueWalker 10121121 - PowerWalker VI CSW - 800VA/480W - Line Interactive UPS
PowerWalker VI CSW 800VA/480W UPS met USB connection Uitgangsverbindingen
- Specificaties
- Uitgangsvermogen Capaciteit (VA): 800VA
- Uitgangsvermogen (W): 480W
- Topologie: Line Interactive
- Golfvorm: Pure Sine Wave
- Uitgangsverbindingen: 8 x IEC C13
- Ingangsverbindingen: IEC C14
- Highlights
- AVR
- USB connection
- Hot-Swappable Batteries
166,99 €
138,01 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 6 - 7 werkdagen levertijd
PowerWalker VI CSW is a line-interactive UPS series with state of the art technology and design. The integrated AVR function and pure sinewave output ensures clean and stable output during power outages or voltage fluctuations. The UPS functions can be monitored and controlled via USB communication, either with software or without (HID).The modern and elegant design makes the VI CSW series especially suitable for home and office use. Applications include gaming and entertainment systems, office workstations, NAS etc.Two USB charging ports in the front offer additional functionality and convenience. Furthermore, the design allows easy access to the battery compartment via the front panel for easy battery replacement.
Producent
Productnummer
2791127
Model
10121121
EAN
4260074981872
Productbeschrijving
PowerWalker VI 800 CSW IEC - UPS - 480 watt - 800 VA
Type apparaat
UPS - extern
Gewicht
8.4 kg
Input Voltage
170 - 280 V wisselstroom V
Output Voltage
230 Volt wisselstroom V ± 10%
Stroomcapaciteit
480 watt / 800 VA
Invoerconnectors
1 x voeding IEC 60320 C14
Uitgangsaansluitingen
8 x power IEC 60320 C13
2 x 4 pin USB Type A 2.1 A
2 x 4 pin USB Type A 2.1 A
Batterij
- 9 ampère-uur
Aantal batterijen
1
Netwerkgebruik
USB
Afmetingen (BxDxH)
9.9 cm x 28.8 cm x 28 cm
Algemeen
Type apparaat
UPS - extern
Voeding
UPS-technologie
Line interactive
Input Voltage
170 - 280 V wisselstroom V
Frequentie meegeleverd
± 1Hz
Vereiste frequentie
50/60 Hz
Invoerconnectors
1 x voeding IEC 60320 C14
Stroomuitgang Connector Details
8 x power IEC 60320 C13
2 x 4 pin USB Type A 2.1 A
2 x 4 pin USB Type A 2.1 A
Output Voltage
230 Volt wisselstroom V ± 10%
Stroomcapaciteit
480 watt / 800 VA
Datalijnbescherming tegen stroompieken
Netwerk/telefoonlijn - RJ-45/RJ-11 - 1 invoerlijn / 1 uitvoerlijn
Uitgangsgolfvorm
Sinusgolf
Efficiëntie
98.4%
Vermogensfactor (PF)
0.6
Batterij
Aantal
1
Geleverde netspanning
12 V
Capaciteit
9 ampère-uur
Overdrachtstijd
6 ms
Netwerkgebruik
Remote Management Interface
USB
Uitbreiding / Aansluiting
Interfaces
1 x beheer (USB) - 4-pins USB type B
Diversen
Kabels meegeleverd
USB-kabel - extern
2 x voedingskabel - extern
2 x voedingskabel - extern
Functies
LCD-scherm, Automatic Voltage Regulation (AVR), ondersteuning voor mens-machinekoppelingen (HID - Human Interface Device), automatisch dimmend scherm, overbelastingsbeveiliging, overladingsbescherming, ontladingsbescherming
Conformiteitsnormen
RoHS, WEEE
Software / Systeemvereisten
Software meegeleverd
ViewPower
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
0 - 90% (niet condenserend)
Geluidsemissie
40 dB
Afmetingen & gewicht
Breedte
9.9 cm
Diepte
28.8 cm
Hoogte
28 cm
Gewicht
8.4 kg
Afmetingen & gewicht (transport)
Verzendbreedte
18.8 cm
Verzenddiepte
37.8 cm
Verzendhoogte
38.7 cm
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
