Productnummer: 2771054

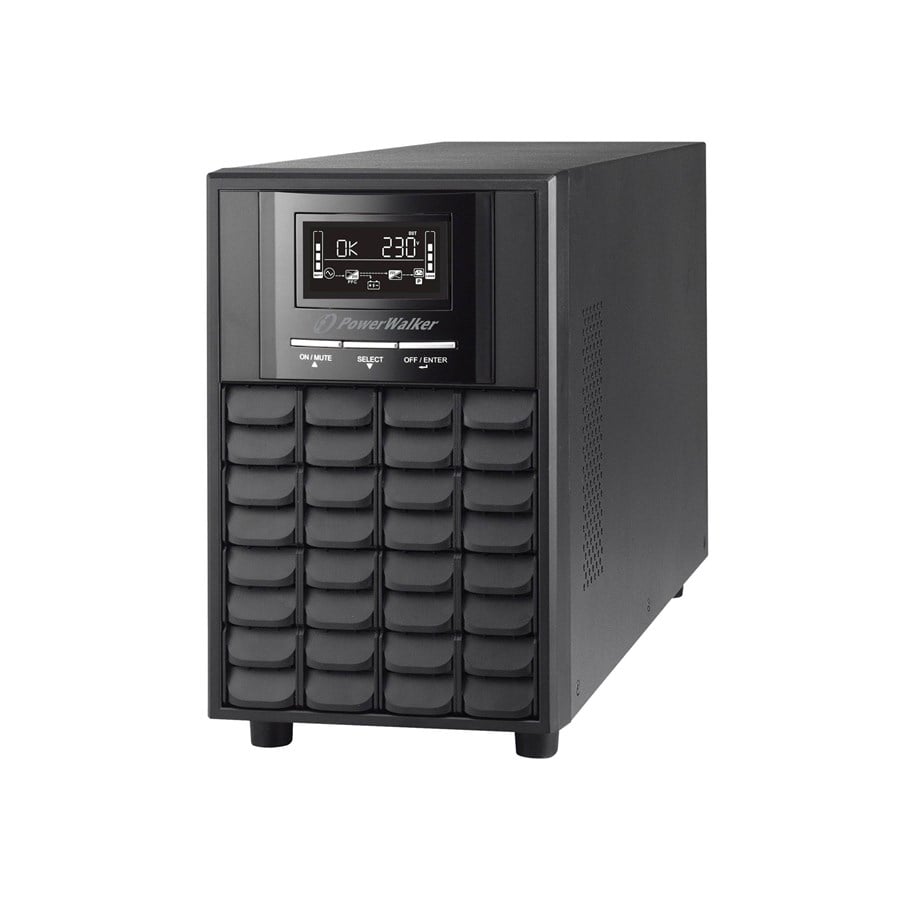

BlueWalker 10121104 - PowerWalker VI CW - 2000VA/1400W - Line Interactive UPS
PowerWalker VI CW 2000VA/1400W UPS met LCD Display Uitgangsverbindingen
- Specificaties
- Uitgangsvermogen Capaciteit (VA): 2000VA
- Uitgangsvermogen (W): 1400W
- Topologie: Line Interactive
- Golfvorm: Pure Sine Wave
- Uitgangsverbindingen: 8 x IEC C13
- Ingangsverbindingen: IEC C20
- Highlights
- AVR
- LCD Display
- Intelligent Slot
366,91 €
303,23 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
PowerWalker VI 1100-3000 CW is an advanced line-interactive UPS series with pure sine wave output. Combined with the AVR function for voltage stabilization, this UPS series will provide clean and stable power to the connected equipment. While designed for home and office use, this UPS will also safeguard more sensitive IT and network devices, as well as high-end PC systems.The programmable outlets and comprehensive LCD display present a high degree of functionality and flexibility that are rarely found in other line-interactive solutions. Additionally this series offers a variety of communication options, such as USB communication with software or without software (HID), or even communication via an optional network card (SMNP).
Producent
Productnummer
2771054
Model
10121104
EAN
4260074981612
Naar de website van de producent
Productbeschrijving
PowerWalker VI 2000 CW - UPS - 1400 watt - 2000 VA
Type apparaat
UPS - extern
Gewicht
18.1 kg
Input Voltage
162 - 290 V wisselstroom V
Output Voltage
208/220/230/240 Volt wisselstroom V ± 1.5%
Stroomcapaciteit
1400 watt / 2000 VA
Invoerconnectors
1 x voeding IEC 60320 C14
Uitgangsaansluitingen
8 x power IEC 60320 C13
Batterij
- 7 ampère-uur
Aantal batterijen
4
Looptijd (maximaal)
3.9 min. bij volledige belasting
Netwerkgebruik
RS-232, USB
Afmetingen (BxDxH)
14.5 cm x 45.5 cm x 22 cm
Algemeen
Type apparaat
UPS - extern
Voeding
UPS-technologie
Line interactive
Input Voltage
162 - 290 V wisselstroom V
Frequentie meegeleverd
50/60 Hz ± 1Hz
Vereiste frequentie
50/60 Hz
Invoerconnectors
1 x voeding IEC 60320 C14
Stroomuitgang Connector Details
8 x power IEC 60320 C13
Output Voltage
208/220/230/240 Volt wisselstroom V ± 1.5% - 50/60 Hz
Stroomcapaciteit
1400 watt / 2000 VA
Uitgangsgolfvorm
Sinusgolf
Stroompiekonderdrukking
Ja
Efficiëntie
90% Battery mode, 96% AC mode
Vermogensfactor (PF)
0.7
Batterij
Aantal
4
Geleverde netspanning
12 V
Capaciteit
7 ampère-uur
Run time (tot aan)
3.9 min bij volledige belasting
12.5 min bij halve lading
12.5 min bij halve lading
Herlaadtijd
4 uur
Overdrachtstijd
10 ms
Netwerkgebruik
Remote Management Interface
RS-232, USB
Uitbreiding / Aansluiting
Interfaces
1 x EPO (emergency power off)
Uitbreidingssleuven
Uitbreidingsslot
Diversen
Functies
LCD-scherm, Automatic Voltage Regulation (AVR), overbelastingsbeveiliging, overladingsbescherming, koude start-functie, kortsluitingsbeveiliging, stopcontacten met programmeerbare belasting, ondersteuning voor mens-machinekoppelingen (HID - Human Interface Device), geavanceerde eco-modus
Software / Systeemvereisten
Software meegeleverd
ViewPower
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
20 - 90% (niet condenserend)
Geluidsemissie
45 dB
Afmetingen & gewicht
Breedte
14.5 cm
Diepte
45.5 cm
Hoogte
22 cm
Gewicht
18.1 kg
Afmetingen & gewicht (transport)
Verzendbreedte
23.5 cm
Verzenddiepte
54 cm
Verzendhoogte
32.5 cm
Verzendgewicht
20.1 kg
