Productnummer: 3409434

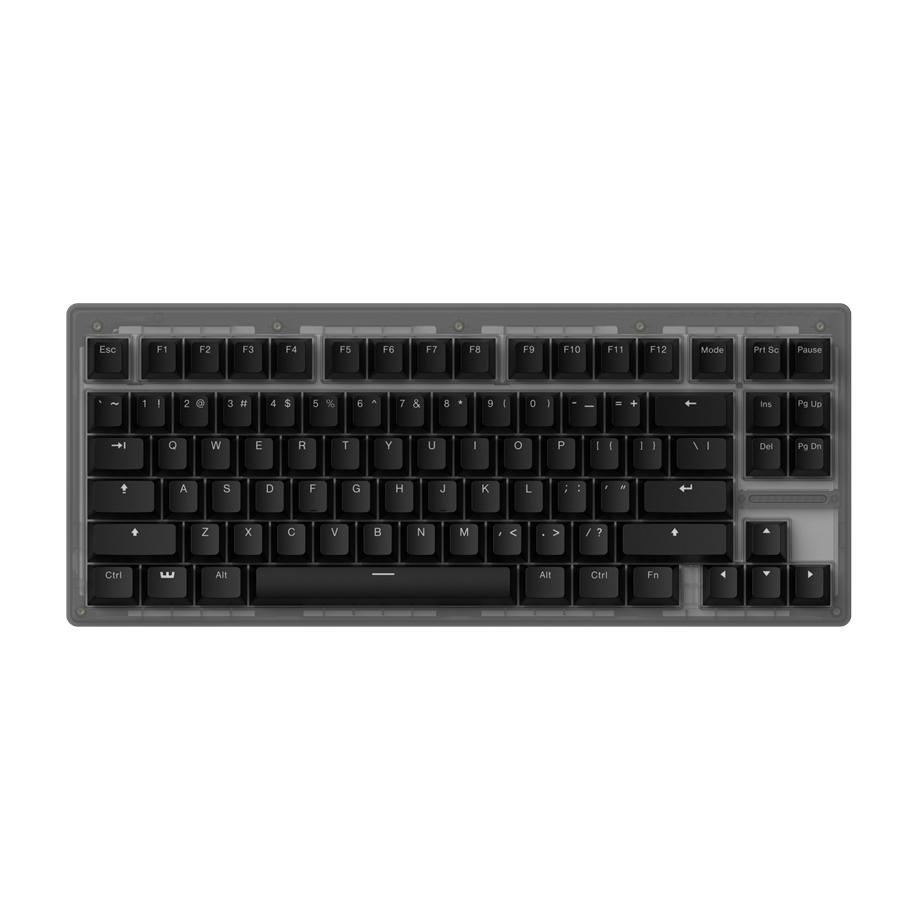

Wooting 80HE - US-ANSI - Linear60 - Ghost - Gaming Toetsenbord - Zonder Numpad - US International - Grijs

Gaming toetsenbord met RGB, grootte TKL-type, PC-aansluiting: USB-A, afneembare toetsenbordkabel: USB-C, polling rate: 8000 hz, PBT keycaps, mechanical Lekker - L60 - Hall effect linear hot swappable switches, n-key rollover, compatibiliteit:Windows, layout: English (US) QWERTY, ANSI layout, Software: Wootility, kleur: grijs.

• Gaming-toetsenbord dat echte 8kHz USB-polling combineert met full-range analoge invoer voor ultra-precisie en lage vertraging - Wooting 80HE.

  • 80% (TKL) layout met US QWERTY en afneembare USB-C-kabel (2 m, gevlochten)
  • Echte 8kHz-polling gesynchroniseerd met analoge scanning voor 0.125 ms vertraging
  • Volledig bereik analoge toetsdetectie met 0.1 mm resolutie en per-toets activering aanpasbaar van 0.1-4.0 mm
  • Rapid Trigger en Rappy Snappy voor dynamische activatie en verbeterde in-game manoeuvres
  • Lekker L60 Hall-effect lineaire hot‑swappable schakelaars (contactloze ontwerp, MX-stem)
  • Per-toets RGB plus een dynamische LED-balk voor visuele feedback
  • Gasket-mount, PC-plaat en vastschroefbare stabilizers afgestemd voor een zachter, stiller typegevoel

Onboard profielopslag en Wootility (web/Windows/macOS/Linux) laten je toetsen remappen en aangepaste activeringsprofielen opslaan voor consistente prestaties over setups.

Lees meer
Op voorraad
219,99 € 181,81 € excl. BTW
Goedkoopste privé verzending 6,99 €
12 stks Op voorraad - 2-3 werkdagen levertijd

Meet the 80HE

Everything you'd expect from Wooting in an 80% layout.

We’ve applied everything we’ve learned so far, making the 80HE our most complete keyboard yet. With several new elements improving the sound, adding new features that enhance your gaming performance and implementing true 8kHz polling to make it our fastest keyboard to date.

Wooting 80HE

Analog Input Unleashed

Full range switch motion.

The Wooting 80HE detects full switch motion with 0.1mm accuracy from start to end. Every single key outputs an analog signal that can be used for numerous features that enhances your typing and gaming experience.

There is no compromise to be made in what a regular ol’ keyboard might have to offer. Welcome to the future.

True 8kHz Polling Rate

0.125ms Latency.

The 80HE supports up to 8kHz USB polling while also scanning every analog key position at that same rate, providing you with a True 8kHz polling experience. This lowers your keyboard latency to only 0.125ms.

Adjustable Actuation

A pretty "sensitive" subject.

Eliminate the slowest element in input latency; the initial key press travel before key activation. You have full control over your actuation point from 0.1 to 4.0mm.

Configurable per key in 0.1mm steps, you can customize each key towards your playstyle.

Rapid Trigger

Unmatched performance.

Eliminate the second slowest element in input latency; return key press travel before key deactivation. Rapid Trigger dynamically changes the actuation and deactivation point. Your keys will activate when you intend to press them and deactivate when you intend to let go.

You can repeat a key press mid motion without needing to surpass a fixed reset or actuation point for rapid presses.

Rappy Snappy

We first brought you Rapid Trigger, now we bring you Rappy Snappy pat. pending.

Rappy Snappy monitors at least 2 selected keys and activates the key pressed the furthest. When combined with Rapid Trigger, it'll compare the keys only when in an active state. Allowing pre-pressing and faster activation on opposite key release. When both are active at the same depth, it'll resort to your selected SOCD resolution. This enhances your (counter) strafing, bunny hopping, and block/parry/combo timing in various games.

Side view

Gasket Mount

Less noise, softer feel.

The PCBA and switch plate are held together by a silicone gasket. This absorbs impact, resulting in less noise and a softer feel when you type.

Gasket view

PC Plate

Softer sound, more flex.

The PC plastic switch plate softens the overall typing experience by muting more of the higher frequencies and placing an emphasis on "thock".

PC plate

Screw-in Stabilizers

Eliminate rattle.

The Wooting 80HE is equipped with screw-in stabilizers to eliminate rattle. They’re also replaceable with most third-party screw-in and clip-in stabilizers.

Screw-in stabilizers

Sounds good?

Experience the sound of the Wooting 80HE for yourself.

The stock Wooting 80HE sound profile is aimed at low volume with a ‘thock’, while providing a snappy typing feedback.

Wooting 80HE PCR with Lekker L60 V2 was used in this sound test.

Back view

A LED bar

With a little twist.

One bar, ten squares, a thousand ways to communicate with you. This is your 80HE talking in abstract about what you need to know.

Per-key RGB

Make it yours.

Per-key configurable RGB, various (analog) RGB effects, and super duper brightness. It’s all there to satisfy your RGB needs or turn them off.

Choose your flavour

Available in different colors and materials.

PCR Black PCR Ghost PCR Frost Zinc alloy Black Zinc alloy White Zinc alloy RAW

Wooting Lekker Switch V2

Less wobble, superior sound.

A contactless magnet switch powered by Hall effect sensors. No metal leaf, pins, optics or other sensitive hardware that suffers from wear, tear, and particles. This survives the test of time and lasts millions of presses.

Lekker L45

30cN key start force • 45cN key end force

Lekker L60

40cN key start force • 60cN key end force

Specs: 100,000,000 clicks lifespan • 0.1–4.0 mm actuation & reset range • Linear • Silent • MX (cross) stem

Ergonomics

Made to reduce strain and fatigue.

We design our keyboards to have the lowest possible front height with the lowest possible angle to help reduce strain and slow down muscle fatigue. Depending on your hand size, you can change the angle to your preference using the interchangeable silicone feet.

2.8° Angle2.8° angle
6° Angle6° angle
10° Angle10° angle

80HE Module

Get the Wooting 80HE Module without switches or keycaps.

Customize your 80HE with your favorite switches, keycaps, and case color with the Module version.

Wooting 80HE Module

Our Keycaps

Quality at your fingertips.

Double Shot PBT
Double Shot PBT: OEM profile, seamless backlit legends that never fade.
Dye Sub PBT
Dye Sub PBT: Cherry profile, legends imbued via dye-sublimation.
ABS
ABS: UV coated OEM profile, laser-etched backlit legends.

Wootility

Fast. Accessible. Intuitive.

Wootility

  • Simple: Easy to use and master.
  • All stored onboard: Features work from the keyboard; settings saved on the 80HE.
  • Wootility web: Windows, macOS, Linux or browser — visit wootility.io.

Remap & Advanced Keys

Remap any key across layers and profiles to fit your workflow. Set advanced keys such as mod tap, DKS, and toggle keys for peak productivity.

Remapping

Sustainability

Step by step to a sustainable future.

Sustainability

The top and bottom case of the 80HE are made of 65% Post Consumer Recycled (PCR) ABS plastics. Alternatively the zinc alloy metal case is an infinitely recyclable material. Packaging is FSC certified cardboard and all “plastic” bags are compostable.

Let's recap

The Wooting 80HE in a nutshell.

  • Rapid Trigger: Keys activate/deactivate when you intend.
  • Adjustable Actuation: 0.1–4.0 mm per key.
  • Rappy Snappy: Consistent strafe & dynamic SOCD resolution.
  • True 8kHz Polling: Synchronized scanning & USB polling at 8kHz (0.125ms).
  • Gasket Mounted: Less noise, more bounce.
  • PC Plate: Softer feel, vibrant sound.
  • Screw-in Stabilizers: Pre-installed to eliminate rattle.
  • Dynamic LED Bar: 1 bar, 10 squares, many indicators.

Them specs and data

Technical Specifications
  • Switches: Lekker L60 V2
  • Keycaps: PBT, ABS and Dye sub options
  • Case: PCR ABS or Zinc alloy
  • Stabilizers: Screw-in
  • Switch plate: White polycarbonate (PC)
  • Sandwich pad: Silicone
  • PCBA: Wooting 80HE
  • Cable: 2 m USB-C to C nylon braided
  • Dimensions: 346 × 142 mm; 19.4 mm front (no keycap); 28.4 mm with OEM keycap
  • Weight: PCR ABS 790 g; Zinc alloy 2160 g
Compatibility
  • Switches: Lekker, Gateron KS-20
  • Stabilizers: Screw-in
  • Case: Top & bottom (gasket mount)

Case accessoires

Muismat & accessoires

Toetsenbord

Producent
Productnummer
3409434
Model
WK5-US2-L60-SMBK1
EAN
8721098520035
Naar de website van de producent

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
