AXAGON 2 Serial Ports DB9 PCI-Express Card

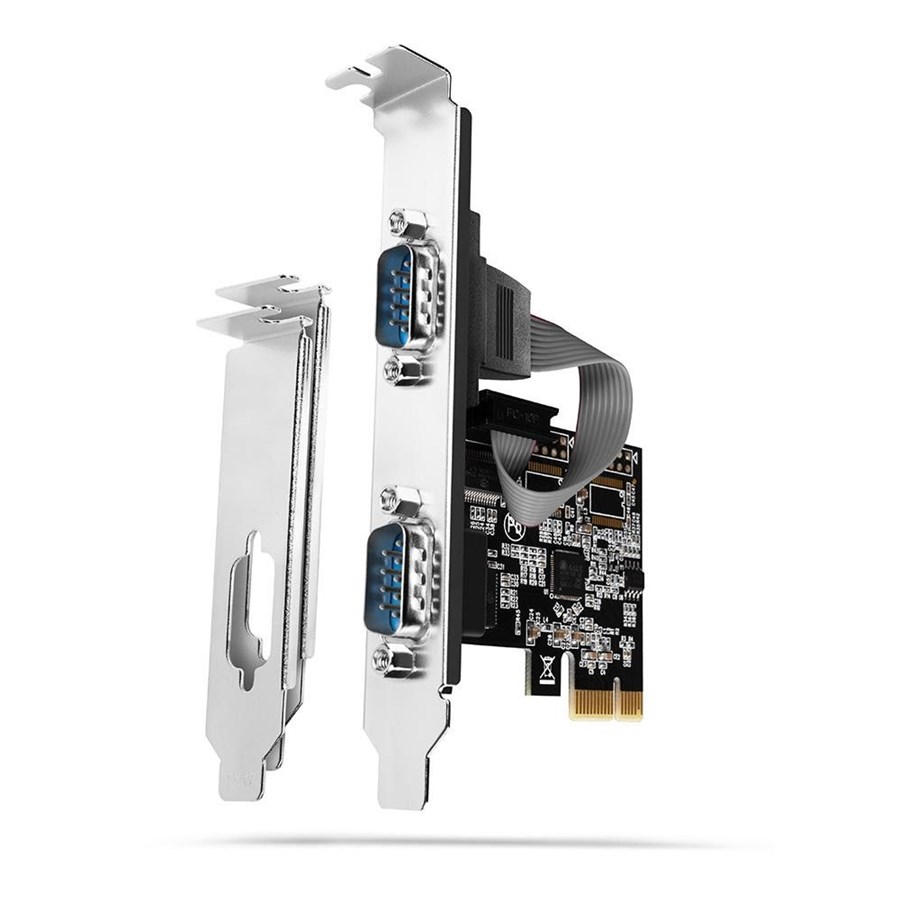

The AXAGON PCEA-S2N PCI-Express card extends your desktop PC by two RS-232 serial ports with DB9 connectors.

High performance, seamless compatibility and wide port options are ensured by the proven ASIX chipset.

Included low profile brackets allow controller installation into standard and low profile PC cases.

Input:

• PCI-Express 2.0 interface compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
• Number of lines 1-Lane (×1), compatible with ×1 / ×4 / ×8 / ×16 PCIe slots.
• The bandwidth of a 1-Lane PCI-Express 2.0 bus is 5 Gbit/s.

Output:

• 2 × serial RS-232 ports with DB-9 male connectors, the ports are placed on the card’s bracket.
• Guaranteed data flow of used RS-232 drivers up to 250 kBd.
• Compatible with 16C550 / Extended 16C550 / 16C950 UART.

Other features:

• Plug and Play support – automatic selection of IRQ and I/O address.
• 256-Byte transmit & receive FIFO buffer for each port.
• Serial port baud rate setting.
• Adjustable word length: 5, 6, 7, 8 or 9 bits.
• Adjustable parity: even, odd, none, mark, space; 1, 1.5 or 2 stop bits.
• Adjustable flow control: Xon/Xoff, hardware or none.
• The COM port number can be changed.
• Advanced 9-bit data transfer settings and custom baud rate settings.
• Supports TXD, RXD, RTS, CTS, DTR, DCD, DSR, and RI serial signals.
• Serial port electrostatic discharge (ESD) protection exceeding ±15 kV Air Gap Discharge and ±8 kV Contact Discharge.
• Supports connecting serial devices such as ATMs, cash registers, barcode readers, CNC machines, tablets, modems, POSs or PDAs.
• The ASIX AX99100 chipset is used.

Supported operating systems:

• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supports all 32 and 64-bit Windows OS versions), Linux with kernel 2.6.11 and above.

Package contains:

• PCI-Express card with a standard bracket
• Low profile brackets
• Multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA
• Packed in a cardboard box
