Productnummer: 2579652

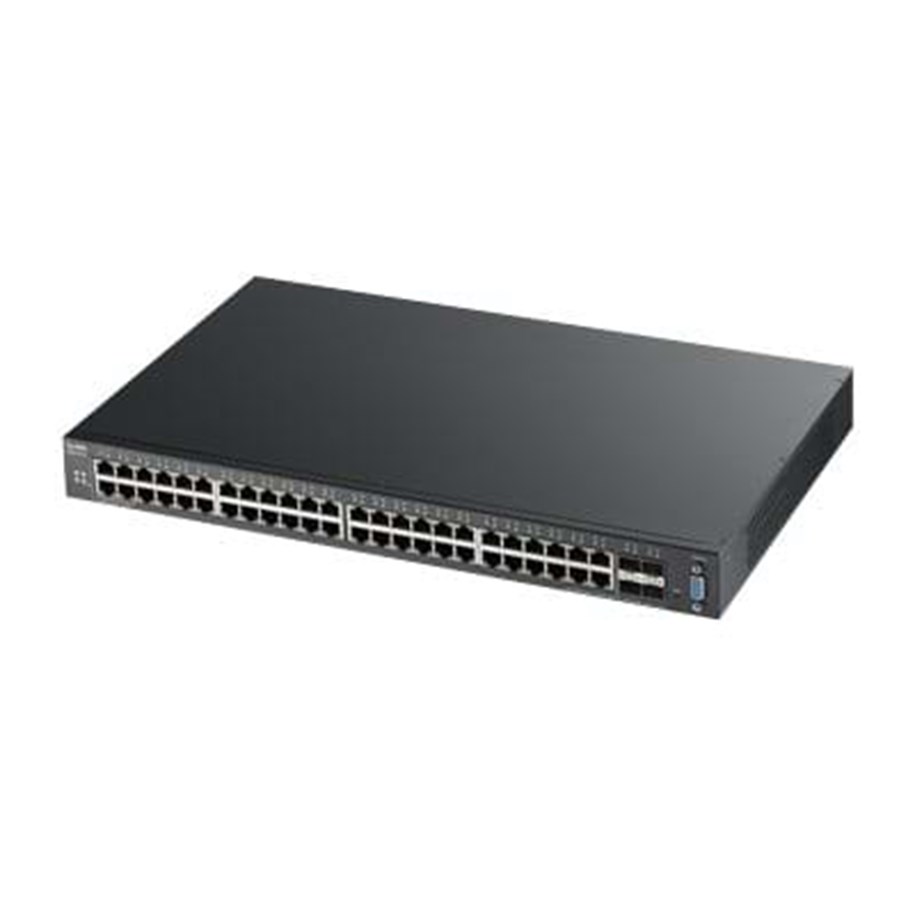

ZyXEL XGS2210-52
Switch, Beheerd, 48 x 10/100/1000 + 4 x 10 Gigabit SFP+, rack-uitvoering
746,91 €
617,28 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
ZyXEL XGS2210 series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.The ZyXEL XGS2210 PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.ZyXEL XGS2210 series offers enhanced control and isolation for improved convergence of video, voice and data. Such advanced defense mechanisms as IP source guard, DHCP snooping, and ARP inspection can detect and block intentional network attacks. Combining multiple L2, L3 and L4 filtering mechanisms with such education - and hospitality friendly features as MAC freeze, port isolation and guest VLAN, the ZyXEL XGS2210 series offers a high level of security, flexibility and control for diverse access layer deployments.
Producent
Productnummer
2579652
Model
XGS2210-52-EU0101F
EAN
4718937587902
Naar de website van de producent
Productbeschrijving
Zyxel XGS2210-52 - switch - 52 poorten - Beheerd - rack-uitvoering
Type apparaat
Switch - 52 poorten - Beheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Prestaties
Omschakelcapaciteit: 176 Gbps
Doorzendsnelheid: 130.9 Mpps
Doorzendsnelheid: 130.9 Mpps
Capaciteit
QoS hardware queues per poort: 8
MAC-adrestabelgrootte
16K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMP, IGMPv2, IGMPv3, MLD, statische IP-routing
Protocol voor beheer op afstand
SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, HTTP, TFTP, CLI
Voorzieningen
1,5 MB pakketbuffer, STP-ondersteuning, MSTP-ondersteuning, VLAN-ondersteuning, GVRP, sFlow, gespiegelde poorten, Broadcast Storm Control, Multicast Storm Control, IPv4-ondersteuning, IPv6-ondersteuning, zonder ventilator, Energy Efficient Ethernet, datatransport, ondersteuning RSTP, gemerkte VLAN, CoS, luspreventie, STP Root Guard, ErrDisable Recovery, dubbele firmware afbeeldingen, ondersteuning voor Protocol-based VLAN's, VLAN filtering, Port Security, MAC adresfiltering, IP-adres filtering, URL filtering, DHCP-spionage, ARP-inspectie, IP-MAC verbinding, poortisolatie, IP source guard, ACL-ondersteuning, CPU-beveiliging, QoS, SPQ, WFQ, WRR-queing, ondersteuning DSCP, IGMP-spionage, IGMP throttling, MVR, IGMP filtering, IGMP proxy, MLD spionage, SNMP trap, ICMP, Syslog-ondersteuning, NDP, DHCP client, ZyXEL iStacking Technology, firmware die kan worden opgewaardeerd, DHCP relay, NTP-tijdsynchronisatie, MIB, ZON
Conformiteitsnormen
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
44.1 cm x 27 cm x 4.5 cm
Gewicht
3.86 kg
Lokalisatie
Europa
Algemeen
Type apparaat
Switch - 52 poorten - Beheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Prestaties
Omschakelcapaciteit: 176 Gbps
Doorzendsnelheid: 130.9 Mpps
Doorzendsnelheid: 130.9 Mpps
Capaciteit
QoS hardware queues per poort: 8
MAC-adrestabelgrootte
16K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMP, IGMPv2, IGMPv3, MLD, statische IP-routing
Protocol voor beheer op afstand
SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, HTTP, TFTP, CLI
Encryptie-algoritme
SSL
Authentificatiemethode
RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Voorzieningen
1,5 MB pakketbuffer, STP-ondersteuning, MSTP-ondersteuning, VLAN-ondersteuning, GVRP, sFlow, gespiegelde poorten, Broadcast Storm Control, Multicast Storm Control, IPv4-ondersteuning, IPv6-ondersteuning, zonder ventilator, Energy Efficient Ethernet, datatransport, ondersteuning RSTP, gemerkte VLAN, CoS, luspreventie, STP Root Guard, ErrDisable Recovery, dubbele firmware afbeeldingen, ondersteuning voor Protocol-based VLAN's, VLAN filtering, Port Security, MAC adresfiltering, IP-adres filtering, URL filtering, DHCP-spionage, ARP-inspectie, IP-MAC verbinding, poortisolatie, IP source guard, ACL-ondersteuning, CPU-beveiliging, QoS, SPQ, WFQ, WRR-queing, ondersteuning DSCP, IGMP-spionage, IGMP throttling, MVR, IGMP filtering, IGMP proxy, MLD spionage, SNMP trap, ICMP, Syslog-ondersteuning, NDP, DHCP client, ZyXEL iStacking Technology, firmware die kan worden opgewaardeerd, DHCP relay, NTP-tijdsynchronisatie, MIB, ZON
Conformiteitsnormen
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x
Statuslampjes
Voeding, ventilator, systeem
Uitbreiding / Aansluiting
Interfaces
48 x 1000Base-T RJ-45
4 x 10Gbit LAN SFP+
1 x serieel (RS-232) beheer
4 x 10Gbit LAN SFP+
1 x serieel (RS-232) beheer
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
45 watt
Diversen
MTBF (gemiddelde tijd tussen twee storingen)
970,594 uur
Conformiteitsnormen
LVD, BSMI, FCC Part 15 A, EMC Class A, BSMI ENC, RoHS
Lokalisatie
Europa
Afmetingen & gewicht
Breedte
44.1 cm
Diepte
27 cm
Hoogte
4.5 cm
Gewicht
3.86 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
10 - 95% (niet condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
Luchtvochtigheidsgraad bij opslaan
10 - 90% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
