Productnummer: 2730896

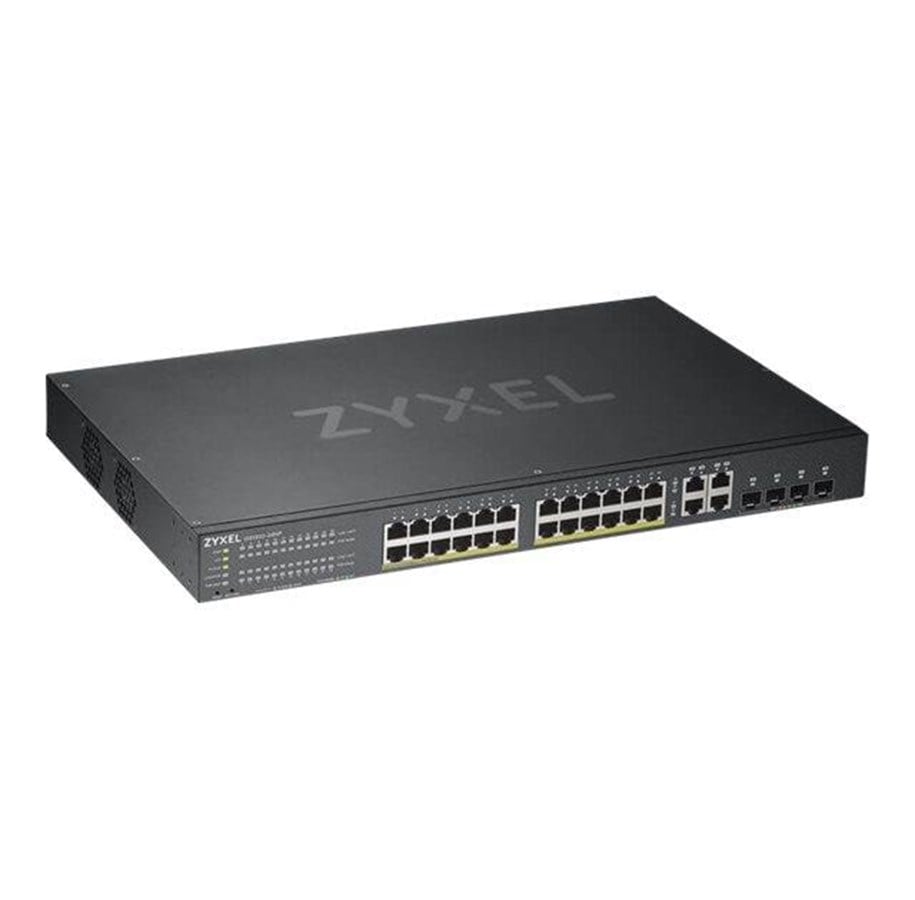

ZyXEL GS1920-24HPv2 24-poorts GbE Smart Managed PoE+ / 4 x combo Gigabit SFP+
Switch, intelligent, 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP-combinatie + 4 x 10/100/1000, rack-uitvoering, PoE+ (375 W)
Op voorraad
292,36 €
241,62 € excl. BTW
Goedkoopste privé verzending 6,99 €
1 stks
Op voorraad - 2-3 werkdagen levertijd
De GS1920 serie is ideaal voor implementatie in meerdere scenario's binnen het MKB, met zijn unieke poortcombinaties die uw netwerk toekomstbestendig maken en zorgen voor gemakkelijke groei op de lange termijn.
Producent
Productnummer
2730896
Model
GS192024HPV2-EU0101F
EAN
4718937601936
Naar de website van de producent
Productbeschrijving
Zyxel GS1920-24HPv2 - switch - 24 poorten - intelligent - rack-uitvoering
Type apparaat
Switch - 24 poorten - intelligent
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP-combinatie + 4 x 10/100/1000
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
375 W
Prestaties
Omschakelcapaciteit: 56 Gbps
Doorstuursnelheid: 42 Mpps
Doorstuursnelheid: 42 Mpps
Capaciteit
QoS hardware queues per poort: 8
MAC-adrestabelgrootte
16K invoergegevens
Routingprotocol
IGMPv2, IGMP, IGMPv3
Protocol voor beheer op afstand
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Voorzieningen
Datatransport, VLAN-ondersteuning, IGMP-spionage, Syslog-ondersteuning, gespiegelde poorten, DiffServ-ondersteuning, MAC adresfiltering, Broadcast Storm Control, IPv6-ondersteuning, IP-adres filtering, Multicast Storm Control, Unicast Storm Control, firmware die kan worden opgewaardeerd, WFQ, ZyXEL iStacking Technology, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, DHCP-spionage, QoS, RADIUS-ondersteuning, MLD spionage, DHCP relay, Port Security, SNMP trap, DHCP client, MIB, MVR, GVRP, dubbele firmware afbeeldingen, SPQ, NDP, poortisolatie, CoS, IGMP proxy, 802.1x authenticatie, Duplicated Address Detection, cloudbeheerd, ondersteuning DSCP, 1,5 MB pakketbuffer, ErrDisable Recovery, IGMP filtering, IGMP throttling, ondersteuning voor Protocol-based VLAN's, CPU-beveiliging, IP source guard, ARP-inspectie, ICMP, VLAN filtering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, WRR, MAC based VLAN, VLAN Tagging, op basis van VLAN-poort, Unknown Storm Control, MRSTP, MAC-vergrendeling
Conformiteitsnormen
IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
44.1 cm x 27 cm x 4.4 cm
Gewicht
3.8 kg
Algemeen
Type apparaat
Switch - 24 poorten - intelligent
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP-combinatie + 4 x 10/100/1000
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
375 W
Prestaties
Omschakelcapaciteit: 56 Gbps
Doorstuursnelheid: 42 Mpps
Doorstuursnelheid: 42 Mpps
Capaciteit
QoS hardware queues per poort: 8
MAC-adrestabelgrootte
16K invoergegevens
Routingprotocol
IGMPv2, IGMP, IGMPv3
Protocol voor beheer op afstand
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Encryptie-algoritme
SSL
Authentificatiemethode
RADIUS, TACACS+
Voorzieningen
Datatransport, VLAN-ondersteuning, IGMP-spionage, Syslog-ondersteuning, gespiegelde poorten, DiffServ-ondersteuning, MAC adresfiltering, Broadcast Storm Control, IPv6-ondersteuning, IP-adres filtering, Multicast Storm Control, Unicast Storm Control, firmware die kan worden opgewaardeerd, WFQ, ZyXEL iStacking Technology, STP-ondersteuning, ondersteuning RSTP, MSTP-ondersteuning, DHCP-spionage, QoS, RADIUS-ondersteuning, MLD spionage, DHCP relay, Port Security, SNMP trap, DHCP client, MIB, MVR, GVRP, dubbele firmware afbeeldingen, SPQ, NDP, poortisolatie, CoS, IGMP proxy, 802.1x authenticatie, Duplicated Address Detection, cloudbeheerd, ondersteuning DSCP, 1,5 MB pakketbuffer, ErrDisable Recovery, IGMP filtering, IGMP throttling, ondersteuning voor Protocol-based VLAN's, CPU-beveiliging, IP source guard, ARP-inspectie, ICMP, VLAN filtering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, WRR, MAC based VLAN, VLAN Tagging, op basis van VLAN-poort, Unknown Storm Control, MRSTP, MAC-vergrendeling
Conformiteitsnormen
IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
RAM
256 MB
Flashgeheugen
32 MB
Uitbreiding / Aansluiting
Interfaces
24 x 1000Base-T RJ-45 PoE+ - 30 W
4 x 1000Base-X SFP
4 x 1000Base-T RJ-45
4 x 1000Base-X SFP
4 x 1000Base-T RJ-45
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
463.5 watt
Diversen
Rackmontagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
638,691 uur
Conformiteitsnormen
BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A
Afmetingen & gewicht
Breedte
44.1 cm
Diepte
27 cm
Hoogte
4.4 cm
Gewicht
3.8 kg
Afmetingen & gewicht (transport)
Verzendbreedte
61.6 cm
Verzenddiepte
35.5 cm
Verzendhoogte
10.7 cm
Verzendgewicht
4.97 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
10 - 95% (niet condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
Luchtvochtigheidsgraad bij opslaan
10 - 95% (niet condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
