Productnummer: 2887963

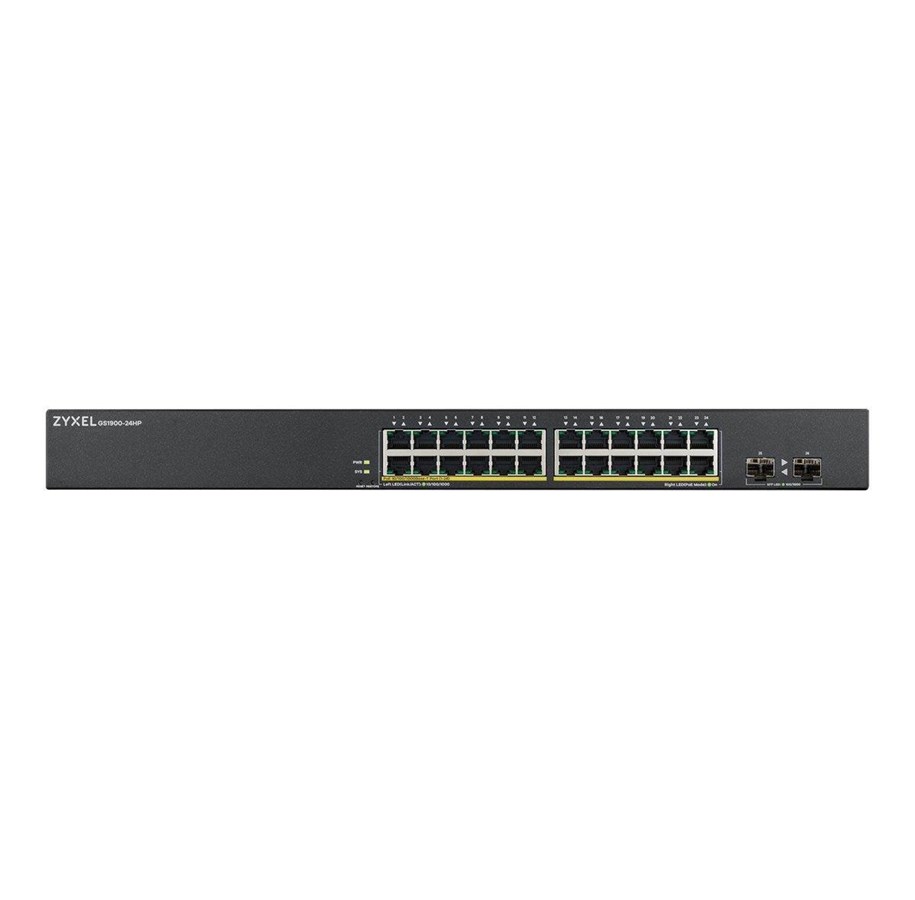

ZyXEL GS1900-24HPv2 24-port GbE Smart Managed PoE Switch with GbE Uplink
Switch, intelligent, 24 x 10/100/1000 (PoE) + 2 x 10/100/1000, rack-uitvoering, wandbevestiging, PoE (170 W)
283,54 €
234,33 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
The ZyXEL GS1900 series of 24-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more fexibility and connectivity. Providing GbE switches with powersaving functions and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-24HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 series has been designed with useful features and advanced performances that empower your networks with speed and security.
The complete ZyXEL GS1900 series has an essential portfolio of 24-port compact desktop and rackmount size with GbE connectivity. Support multiple deployment methods to fulfill the needs for small offices and meeting room environments such as wall-, under table- or desktop-mounting and rackmount options. It's now quick and effortless to enjoy the high-speed business network applications without a hitch. Additionally, the GS1900-24HP is equipped with 2 extra SFP slots to provide 100M and GbE speeds for long-distance deployments.
The complete ZyXEL GS1900 series has an essential portfolio of 24-port compact desktop and rackmount size with GbE connectivity. Support multiple deployment methods to fulfill the needs for small offices and meeting room environments such as wall-, under table- or desktop-mounting and rackmount options. It's now quick and effortless to enjoy the high-speed business network applications without a hitch. Additionally, the GS1900-24HP is equipped with 2 extra SFP slots to provide 100M and GbE speeds for long-distance deployments.
Producent
Productnummer
2887963
Model
GS190024HPV2-EU0101F
EAN
4718937609505
Naar de website van de producent
Productbeschrijving
Zyxel GS1900-24HPv2 - switch - 26 poorten - intelligent - rack-uitvoering
Type apparaat
Switch - 26 poorten - intelligent
Type bijvoegsel
Rack-uitvoering
Subtype
Gigabit Ethernet
Poorten
24 x 10/100/1000 (PoE) + 2 x 10/100/1000
Voeding via ethernet (Power Over Ethernet, PoE)
PoE
PoE-budget
170 W
Prestaties
Omschakelcapaciteit: 52 Gbps
Doorzendsnelheid: 39 Mpps
Doorzendsnelheid: 39 Mpps
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMPv2, IGMP, IGMPv3
Protocol voor beheer op afstand
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Voorzieningen
Datatransport, VLAN-ondersteuning, auto-uplink (auto MDI/MDI-X), IGMP-spionage, Syslog-ondersteuning, DoS bescherming tegen aanval, WRR-queing, opslaan en verder, IPv6-ondersteuning, QoS, LACP ondersteuning, LLDP ondersteuning, Port Security, Energy Efficient Ethernet, MIB, SPQ, CoS, gemerkte VLAN, bandbreedtecontrole per poort, 525KB pakketbuffer
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at
Stroom
120/230 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
44.1 cm x 27 cm x 4.4 cm
Gewicht
3.55 kg
Lokalisatie
Europa
Algemeen
Type apparaat
Switch - 26 poorten - intelligent
Type bijvoegsel
Rack-uitvoering, wandbevestiging
Subtype
Gigabit Ethernet
Poorten
24 x 10/100/1000 (PoE) + 2 x 10/100/1000
Voeding via ethernet (Power Over Ethernet, PoE)
PoE
PoE-budget
170 W
Prestaties
Omschakelcapaciteit: 52 Gbps
Doorzendsnelheid: 39 Mpps
Doorzendsnelheid: 39 Mpps
MAC-adrestabelgrootte
8K invoergegevens
Jumbo Frame-ondersteuning
9KB
Routingprotocol
IGMPv2, IGMP, IGMPv3
Protocol voor beheer op afstand
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Encryptie-algoritme
SSL
Authentificatiemethode
RADIUS, TACACS+
Voorzieningen
Datatransport, VLAN-ondersteuning, auto-uplink (auto MDI/MDI-X), IGMP-spionage, Syslog-ondersteuning, DoS bescherming tegen aanval, WRR-queing, opslaan en verder, IPv6-ondersteuning, QoS, LACP ondersteuning, LLDP ondersteuning, Port Security, Energy Efficient Ethernet, MIB, SPQ, CoS, gemerkte VLAN, bandbreedtecontrole per poort, 525KB pakketbuffer
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at
Statuslampjes
Voeding, systeem, link/activiteit
Uitbreiding / Aansluiting
Interfaces
24 x 1000Base-T RJ-45 PoE
2 x Gigabit LAN SFP
2 x Gigabit LAN SFP
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
120/230 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
206.5 watt
Diversen
Rackmontagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
879 243 uur
Conformiteitsnormen
FCC Klasse B-gecertifieerd, C-Tick Class B, RoHS, EN 60950-1, BSMI CNS 13438, BSMI CNS 14336
Lokalisatie
Europa
Afmetingen & gewicht
Breedte
44.1 cm
Diepte
27 cm
Hoogte
4.4 cm
Gewicht
3.55 kg
Afmetingen & gewicht (transport)
Verzendbreedte
62.2 cm
Verzenddiepte
35.8 cm
Verzendhoogte
10.8 cm
Verzendgewicht
5.04 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
10 - 95% (niet condenserend)
Min. opslagtemperatuur
-40 °C
Max. opslagtemperatuur
70 °C
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
