Productnummer: 3516135

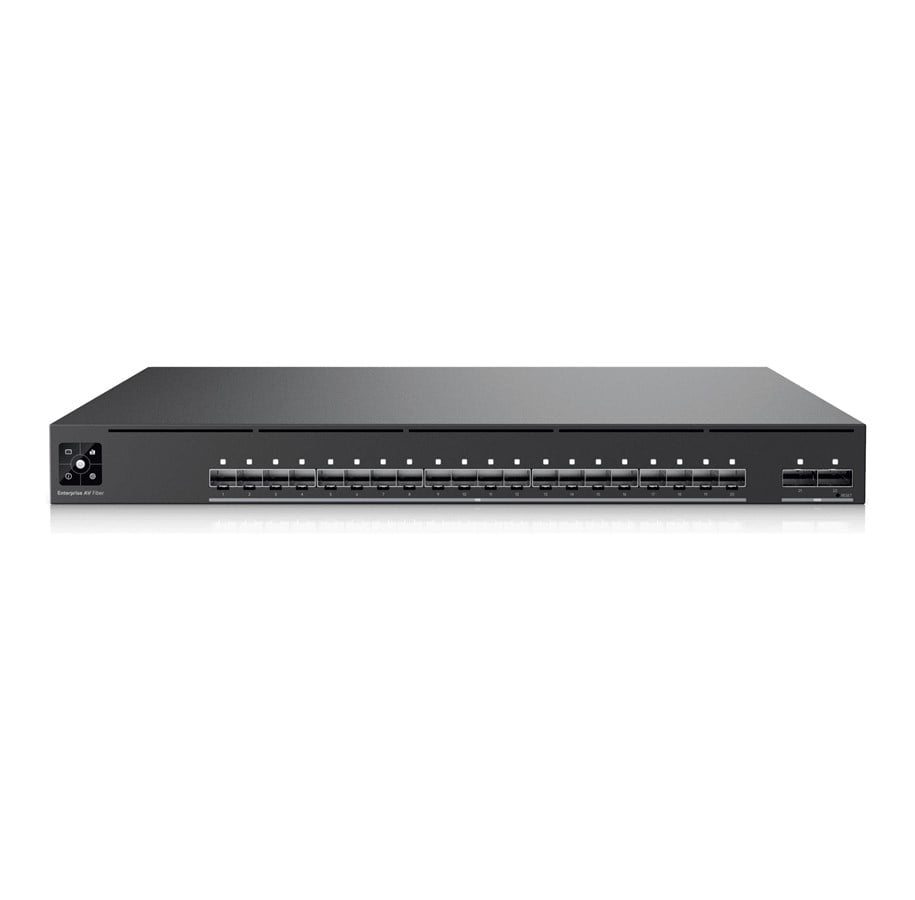

Ubiquiti UniFi Enterprise Audio/Video EAV-Fiber - switch - 22 ports - Managed - rack-mountable
Switch, L3, Beheerd, 20 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28, rack-uitvoering, voor P/N: UACC-DAC-QSFP28-1M, UACC-OM-MM-10G-D, UACC-OM-QSFP28-SR4, UACC-PSU-12V-150W
3.265,48 €
2.698,74 € excl. BTW
Goedkoopste privé verzending 6,99 €
Bestelproduct, 9 - 10 werkdagen levertijd
The Ubiquiti UniFi Enterprise Audio/Video EAV-Fiber switch offers 100 Gigabit Ethernet and 10 Gigabit Ethernet connectivity. With a total of 22 ports, including 20 10GBase-X SFP+ and 2 100GBase-X QSFP28 ports, this switch ensures ample bandwidth for high-performance audio and video applications. Its advanced Layer 3 switching capabilities and static IP routing support make it suitable for demanding network environments. The 1.3" LCM touchscreen display allows for easy monitoring and management of the device, while features like Precision Time Protocol (PTP) and AES67 audio network compatibility cater to specialized needs in multimedia deployments.The EAV-Fiber is designed with environmental resilience, operating efficiently in temperatures ranging from -5°C to 40°C with a humidity range of 10 - 90% (non-condensing). It includes 4 hot-swap fans, ensuring uninterrupted operation even in critical conditions. The device also boasts a variety of management features such as DHCP relay, DHCP server, and Inter-VLAN Routing, providing flexibility in network configuration. With a robust power redundancy scheme and internal power supply, this switch is built to deliver reliability for enterprise-level audio/video networking.
Producent
Productnummer
3516135
Model
EAV-FIBER
EAN
5715328289826
Naar de website van de producent
Neem contact op met de fabrikant
Productbeschrijving
Ubiquiti UniFi Enterprise Audio/Video EAV-Fiber - switch - 22 poorten - Beheerd - rack-uitvoering
Type apparaat
Switch - 22 poorten - L3 - Beheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
100 Gigabit Ethernet / 10 Gigabit Ethernet
Poorten
20 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28
Prestaties
Omschakelcapaciteit: 800 Gbps
Niet-blokkerende schakelverwerkingscapaciteit: 400 Gbps
Doorstuursnelheid: 595 Mpps
Niet-blokkerende schakelverwerkingscapaciteit: 400 Gbps
Doorstuursnelheid: 595 Mpps
Capaciteit
Virtuele interfaces (VLAN's): 1000
Pakketbuffergrootte: 8 MB
IPv4 routes (statisch): 512
Pakketbuffergrootte: 8 MB
IPv4 routes (statisch): 512
MAC-adrestabelgrootte
32.000 invoergegevens
Jumbo Frame-ondersteuning
Ja
Routingprotocol
Statische IP-routing
Voorzieningen
Etherlighting-poorten, PTP, AES67 audio-netwerk, OCXO, reset-knop, DHCP relay, DHCP-server, Inter-VLAN Routing, LACP poortaggregatie, ondersteuning RSTP, STP-ondersteuning, DSCP based QoS, PTPv2, 802.1x authenticatie, IGMP-spionage, uitgangsnelheidslimiet, DHCP bewaker, DHCP-spionage, Apparaatisolatie met ACL's, datatransport, Storm Control, snelheidsbeperking multicast/broadcast, MAC-adres blokkering, poortisolatie, gespiegelde poorten, LLDP-MED, Voice VLAN, loop-bescherming, SGCC staal behuizing, 2KV ESD Protector, 8 kV-ESD-bescherming (contactontlading)
Conformiteitsnormen
IEEE 1588-2008 PTPv2
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Stroomredundantie
Ja
Afmetingen (BxDxH)
44.24 cm x 48 cm x 4.37 cm
Gewicht
8.95 kg
Ontworpen voor
P/N: UACC-DAC-QSFP28-1M, UACC-DAC-SFP10-0.5M, UACC-OM-MM-10G-D, UACC-OM-QSFP28-SR4, UACC-OM-SM-10G-S-2, UACC-PSU-12V-150W
Algemeen
Type apparaat
Switch - 22 poorten - L3 - Beheerd
Type bijvoegsel
Rack-uitvoering 1U
Subtype
100 Gigabit Ethernet / 10 Gigabit Ethernet
Poorten
20 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28
Prestaties
Omschakelcapaciteit: 800 Gbps
Niet-blokkerende schakelverwerkingscapaciteit: 400 Gbps
Doorstuursnelheid: 595 Mpps
Niet-blokkerende schakelverwerkingscapaciteit: 400 Gbps
Doorstuursnelheid: 595 Mpps
Capaciteit
Virtuele interfaces (VLAN's): 1000
Pakketbuffergrootte: 8 MB
IPv4 routes (statisch): 512
Pakketbuffergrootte: 8 MB
IPv4 routes (statisch): 512
MAC-adrestabelgrootte
32.000 invoergegevens
Jumbo Frame-ondersteuning
Ja
Routingprotocol
Statische IP-routing
Voorzieningen
Etherlighting-poorten, PTP, AES67 audio-netwerk, OCXO, reset-knop, DHCP relay, DHCP-server, Inter-VLAN Routing, LACP poortaggregatie, ondersteuning RSTP, STP-ondersteuning, DSCP based QoS, PTPv2, 802.1x authenticatie, IGMP-spionage, uitgangsnelheidslimiet, DHCP bewaker, DHCP-spionage, Apparaatisolatie met ACL's, datatransport, Storm Control, snelheidsbeperking multicast/broadcast, MAC-adres blokkering, poortisolatie, gespiegelde poorten, LLDP-MED, Voice VLAN, loop-bescherming, SGCC staal behuizing, 2KV ESD Protector, 8 kV-ESD-bescherming (contactontlading)
Conformiteitsnormen
IEEE 1588-2008 PTPv2
Ingebouwde apparaten
4 hot-swap ventilatoren, 1,3" LCM aanraakscherm display
Statuslampjes
Ventilator, LAN, PSU
Uitbreiding / Aansluiting
Interfaces
20 x 1/10GBase-X SFP+
2 x 40/100GBase-X QSFP28
1 x console
1 x beheer (Gigabit LAN) RJ-45
1 x GPS SMA
2 x 40/100GBase-X QSFP28
1 x console
1 x beheer (Gigabit LAN) RJ-45
1 x GPS SMA
Stroom
Voeding
Interne stroomvoorziening - hot-plug
Aantal geïnstalleerd
2
Stroomredundantie
Ja
Stroomredundantieschema
1+1
Geleverde energie
150 watt
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Diversen
Rackmontagekit
Inclusief
Conformiteitsnormen
FCC, IC, NDAA
Afmetingen & gewicht
Breedte
44.24 cm
Diepte
48 cm
Hoogte
4.37 cm
Gewicht
8.95 kg
Omgevingsparameters
Min. gebruikstemperatuur
-5 °C
Max. gebruikstemperatuur
40 °C
Luchtvochtigheidsgraad bij gebruik
10 - 90% (niet condenserend)
Informatie over Compatibiliteit
Ontworpen voor
P/N: UACC-DAC-QSFP28-1M, UACC-DAC-SFP10-0.5M, UACC-OM-MM-10G-D, UACC-OM-QSFP28-SR4, UACC-OM-SM-10G-S-2, UACC-PSU-12V-150W
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
