Productnummer: 3345379

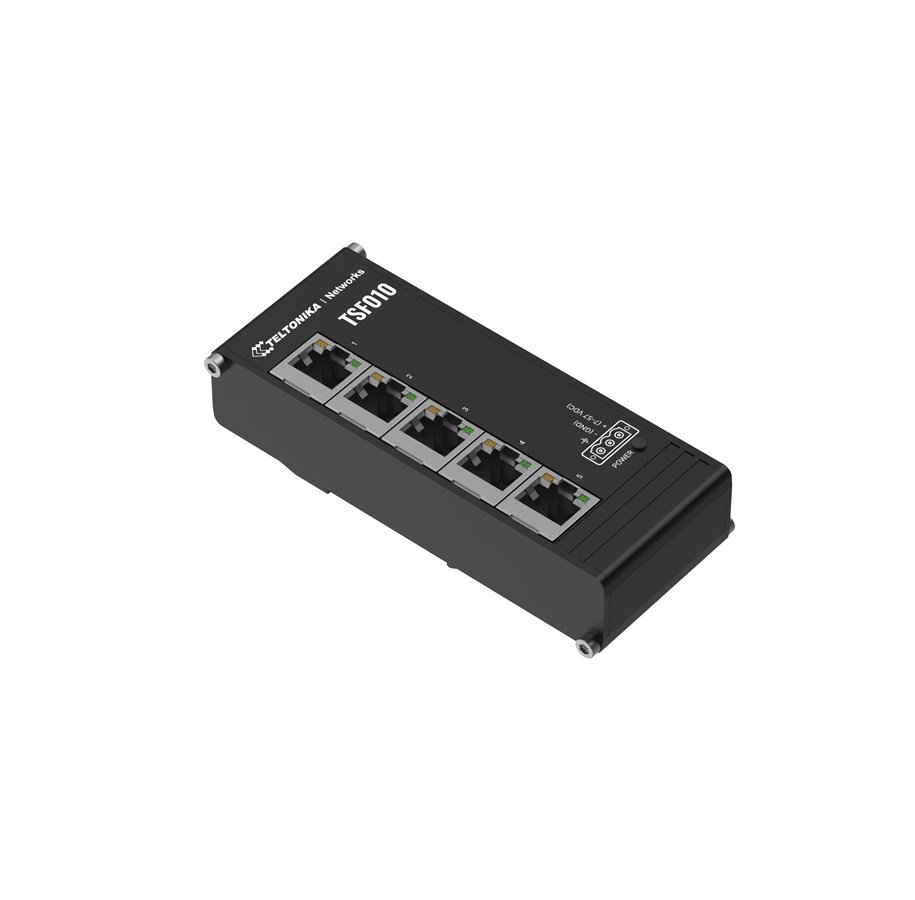

Teltonika TSF010 5-Port Flat Ethernet Switch 7-57 VDC (Without PSU)
Switch, onbeheerd, 5 x 10/100, monteerbaar op DIN-rails
33,94 €
28,05 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd
The Teltonika TSF010 switch is engineered to meet the demands of modern industrial environments. With a 10 Gbps non-blocking bandwidth, it ensures smooth and efficient data transmission, making it suitable for a variety of applications. The switch's aluminum housing and DIN rail mountability offer a robust solution for challenging settings, while its five 10/100 Base-T ports provide flexible connectivity options. It supports key IEEE standards, including 802.3ab and 802.3az, as well as jumbo frames up to 9216 bytes, enhancing network efficiency and reducing energy consumption. Designed to operate within a broad range of temperatures and humidity levels, the TSF010 delivers reliable performance under extreme conditions, making it a versatile choice for any network infrastructure.
Producent
Productnummer
3345379
Model
TSF010000000
EAN
4779051841356
Switch type
Unmanaged
Aantal basis-switching RJ-45 Ethernet-poorten
5
Type basis-switching RJ-45 Ethernet-poorten
Fast Ethernet (10/100)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Fast Ethernet (koperen) ports kwantiteit
5
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Full duplex
Ja
Auto MDI/MDI-X
Ja
MAC-adrestabel
2048 entries
Switchingcapaciteit
10 Gbit/s
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Rack-montage
Nee
Stapelbaar
Nee
Vormfactor
DIN rail
Kleur van het product
Zwart
Materiaal behuizing
Aluminium
Internationale veiligheidscode (IP)
IP30
DIN rail bevestiging
Ja
Stroombron
DC
Vermogenstoevoer inclusief
Nee
Ingangsspanning
7 - 57 V
Stroomverbruik (typisch)
1 W
Vermogensverbruik (max)
1,5 W
Power over Ethernet (PoE)
Nee
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Breedte
113 mm
Diepte
50 mm
Hoogte
28 mm
Gewicht
142 g
Beheerfuncties
Switch type
Unmanaged
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
5
Type basis-switching RJ-45 Ethernet-poorten
Fast Ethernet (10/100)
Aantal geïnstalleerde SFP modules
0
Aantal geïnstalleerde SFP+ modules
0
Fast Ethernet (koperen) ports kwantiteit
5
Netwerk
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Full duplex
Ja
Auto MDI/MDI-X
Ja
Data-uitwisseling
MAC-adrestabel
2048 entries
Switchingcapaciteit
10 Gbit/s
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Design
Rack-montage
Nee
Stapelbaar
Nee
Vormfactor
DIN rail
Kleur van het product
Zwart
Materiaal behuizing
Aluminium
Internationale veiligheidscode (IP)
IP30
DIN rail bevestiging
Ja
Energie
Stroombron
DC
Vermogenstoevoer inclusief
Nee
Ingangsspanning
7 - 57 V
Stroomverbruik (typisch)
1 W
Vermogensverbruik (max)
1,5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Gewicht en omvang
Breedte
113 mm
Diepte
50 mm
Hoogte
28 mm
Gewicht
142 g
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
