Productnummer: 3375838

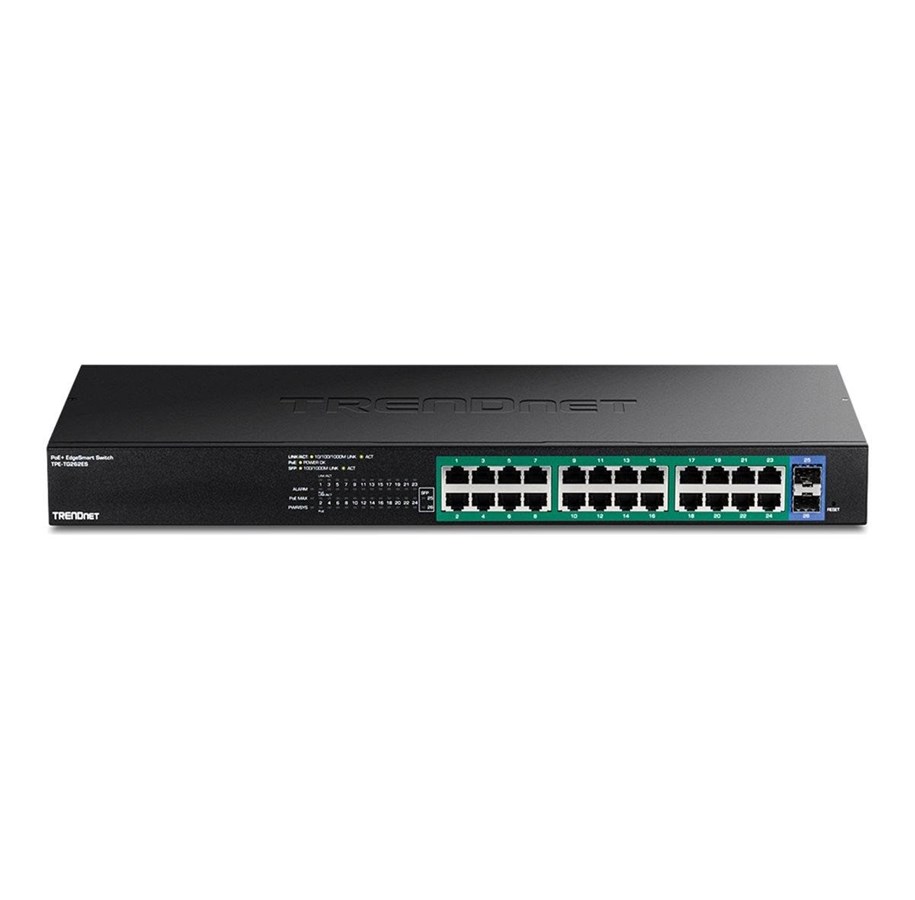

TRENDnet TPE-TG262ES - Version v1.0R - switch - EdgeSmart - 26 ports - smart - rack-mountable - TAA Compliant

Version v1.0R, switch, EdgeSmart, intelligent, 24 x Gigabit Ethernet + 2 x Gigabit SFP, rack-uitvoering, PoE+ (380 W), TAA Compliant

335,11 € 276,95 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd

The TRENDnet TPE-TG262ES is a versatile Gigabit switch designed for efficient networking solutions. With a switching capacity of 52 Gbps and a forwarding rate of 38.69 Mpps, this switch handles the demands of modern networks effectively. Equipped with 24 Gigabit Ethernet ports and 2 Gigabit SFP ports, it supports PoE+ for powering devices such as IP cameras and wireless access points, streamlining installation and reducing clutter. Built with a metal housing and featuring smart fan technology, it operates efficiently within a temperature range of 0°C to 40°C and can withstand humidity levels of up to 90% non-condensing, ensuring reliability in various environments. Manageability is convenient with support for SNMP and a user-friendly web GUI management portal. The TRENDnet TPE-TG262ES also includes features such as IGMP snooping for efficient multicast traffic, port mirroring for monitoring, and static link aggregation to optimize bandwidth utilization. With compliance to industry standards like IEEE and TAA, this switch is an ideal choice for businesses seeking a reliable networking solution capable of meeting their growth needs.

Producent
Productnummer
3375838
Model
TPE-TG262ES
EAN
0710931162547
Naar de website van de producent
Switch type
Managed
Quality of Service (QoS)
Ja
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Nee
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4094
MAC-adrestabel
8000 entries
Switchingcapaciteit
52 Gbit/s
Verzending snelheid
38,69 Mpps
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
0,5 MB
IGMP snooping
Ja
Multicast-ondersteuning
Ja
Beheerprotocollen
SNMP v1, v2c
Rack-montage
Ja
Kleur van het product
Zwart
Reset button
Ja
Aantal ventilatoren
2 ventilator(en)
Geluidsniveau
51 dB
Mean time between failures (MTBF)
447228 uur
Stroombron
AC/PoE
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Vermogensverbruik (max)
14,93 W
Stroomspanning bescherming
Overstroom, Kortsluiting
Power over Ethernet (PoE)
Ja
Type Power over Ethernet (PoE) ondersteunt
PoE+
Aantal Power over Ethernet plus (PoE +)-poorten
24
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
380 W
Breedte
440 mm
Diepte
195 mm
Hoogte
44 mm
Gewicht
3,06 kg
Certificering
CE FCC ETL

Beheerfuncties

Switch type
Managed
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Nee
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4094

Data-uitwisseling

MAC-adrestabel
8000 entries
Switchingcapaciteit
52 Gbit/s
Verzending snelheid
38,69 Mpps
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
0,5 MB

Beveiliging

IGMP snooping
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Beheerprotocollen
SNMP v1, v2c

Design

Rack-montage
Ja
Kleur van het product
Zwart
Reset button
Ja
Aantal ventilatoren
2 ventilator(en)

Prestatie

Geluidsniveau
51 dB
Mean time between failures (MTBF)
447228 uur

Energie

Stroombron
AC/PoE
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Vermogensverbruik (max)
14,93 W
Stroomspanning bescherming
Overstroom, Kortsluiting

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Ja
Type Power over Ethernet (PoE) ondersteunt
PoE+
Aantal Power over Ethernet plus (PoE +)-poorten
24
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
380 W

Gewicht en omvang

Breedte
440 mm
Diepte
195 mm
Hoogte
44 mm
Gewicht
3,06 kg

Certificaten

Certificering
CE FCC ETL

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
