Productnummer: 3359007

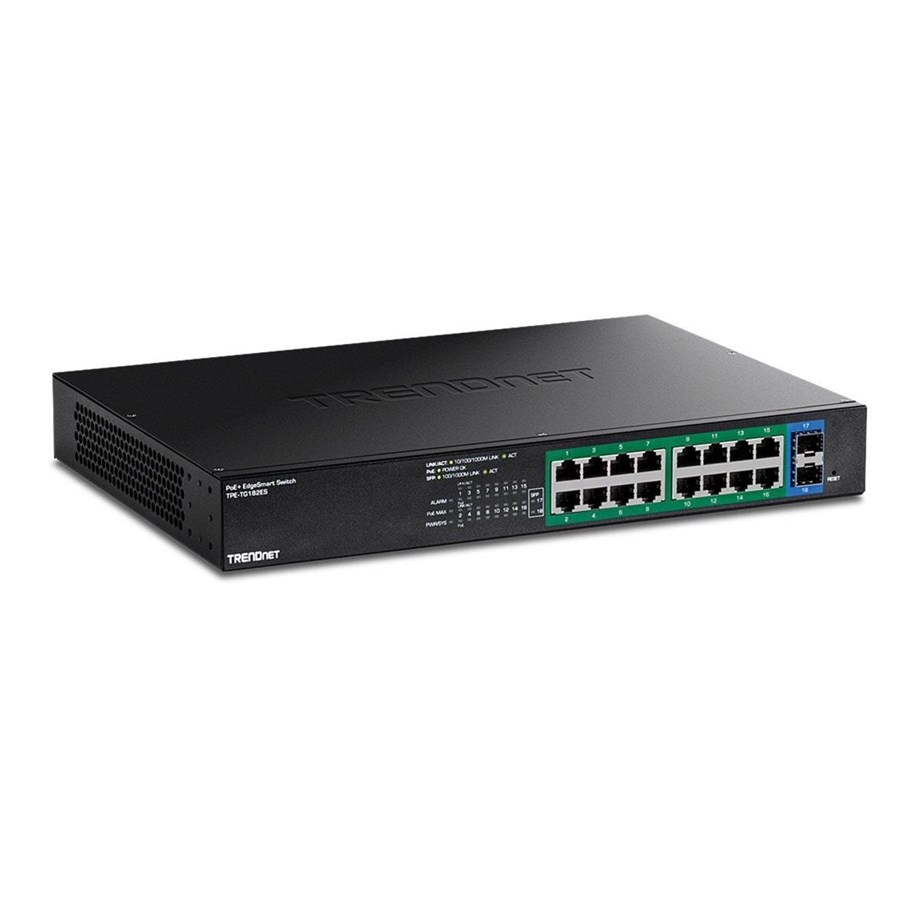

TRENDnet TPE-TG182ES - Version v1.0R - switch - EdgeSmart - 18 ports - smart - rack-mountable - TAA Compliant

Version v1.0R, switch, EdgeSmart, intelligent, 16 x Gigabit Ethernet + 2 x Gigabit SFP, rack-uitvoering, PoE+ (240 W), TAA Compliant

239,33 € 197,79 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

The TRENDnet TPE-TG182ES is designed to deliver robust switching capabilities, featuring 16 Gigabit Ethernet ports and 2 Gigabit SFP ports for a flexible networking solution. This model supports Power over Ethernet (PoE+) with a budget of 240 W, making it ideal for powering devices such as IP cameras, phones, and access points directly through the network cables. With a forwarding rate of up to 36 Gbps, it ensures efficient data handling and performance across connected devices.Built for reliability, the TPE-TG182ES operates within a temperature range of 0°C to 40°C, and its metal housing aids in durability. Additional features including IGMP snooping, Smart Fan, and SNMP support enable effective traffic management and remote monitoring, while the included rack-mounting kit simplifies installation in data centers or server rooms. Enhanced with advanced features, this switch is easy to manage through a web GUI and maintains high availability with its MTBF of over 609,000 hours.

Producent
Productnummer
3359007
Model
TPE-TG182ES
EAN
0710931162561
Naar de website van de producent
Switch type
Managed
Aantal basis-switching RJ-45 Ethernet-poorten
16
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
16
Aantal moduleslots SPF
2
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Nee
Full duplex
Ja
Half-duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
Virtuele LAN-functies
Private VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4094
MAC-adrestabel
8000 entries
Switchingcapaciteit
36 Gbit/s
Verzending snelheid
26,78 Mpps
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
0,5 MB
IGMP snooping
Ja
Multicast-ondersteuning
Ja
Beheerprotocollen
SNMP v1, v2c
Rack-montage
Ja
Kleur van het product
Zwart
Aantal ventilatoren
1 ventilator(en)
Geluidsniveau
47 dB
Mean time between failures (MTBF)
609351 uur
Stroombron
AC/PoE
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Stroom
2.6 A
Vermogensverbruik (max)
248,18 W
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
240 W
Bedrijfstemperatuur (T-T)
0 - 40 °C
Breedte
328 mm
Diepte
228 mm
Hoogte
44 mm
Gewicht
2,58 kg
Certificering
CE FCC ETL

Beheerfuncties

Switch type
Managed

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
16
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
16
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Nee
Full duplex
Ja
Half-duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
Virtuele LAN-functies
Private VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4094

Data-uitwisseling

MAC-adrestabel
8000 entries
Switchingcapaciteit
36 Gbit/s
Verzending snelheid
26,78 Mpps
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
0,5 MB

Beveiliging

IGMP snooping
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Beheerprotocollen
SNMP v1, v2c

Design

Rack-montage
Ja
Kleur van het product
Zwart
Aantal ventilatoren
1 ventilator(en)

Prestatie

Geluidsniveau
47 dB
Mean time between failures (MTBF)
609351 uur

Energie

Stroombron
AC/PoE
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Stroom
2.6 A
Vermogensverbruik (max)
248,18 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
240 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C

Gewicht en omvang

Breedte
328 mm
Diepte
228 mm
Hoogte
44 mm
Gewicht
2,58 kg

Certificaten

Certificering
CE FCC ETL

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
