Productnummer: 2979320

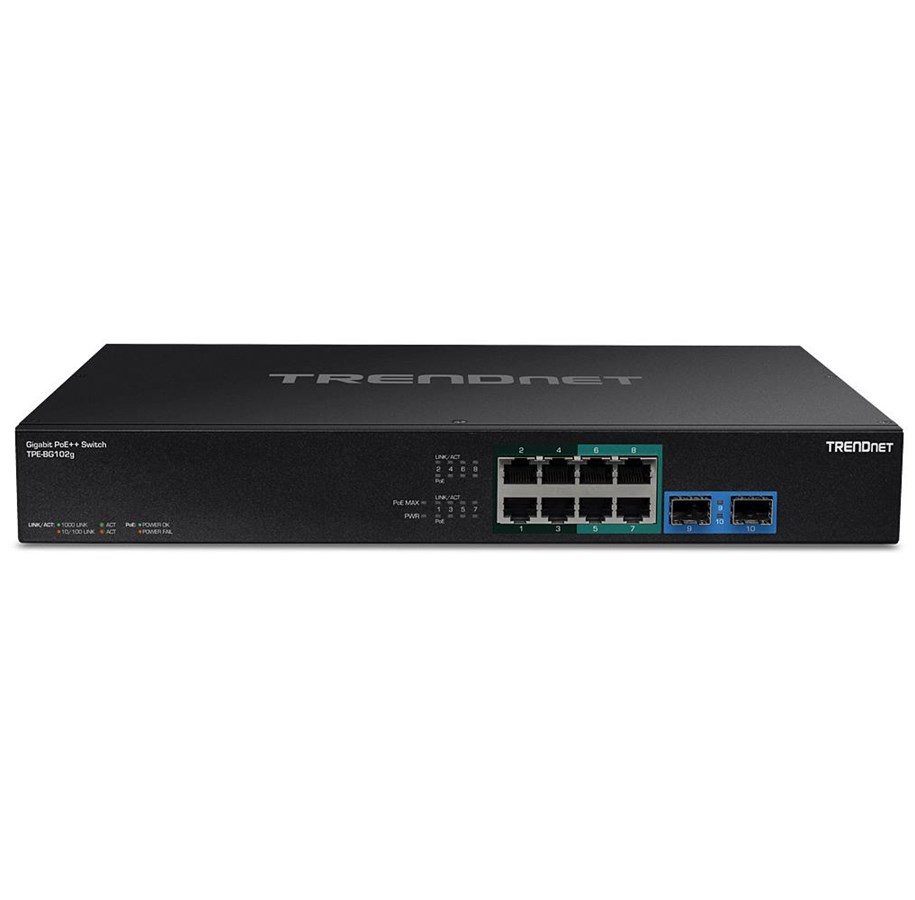

TRENDnet TPE-BG102G 10-Port Gigabit PoE++ Switch
Switch, onbeheerd, 8 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+) + 2 x SFP, rack-uitvoering, PoE++ (240 W), 100, 240 V wisselstroom, TAA Compliant
219,03 €
181,02 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
TRENDnet's Unmanaged Gigabit PoE++ Switches provide high bandwidth performance, ease of use, and reliability. These IEEE 802.3bt compliant switches feature a sturdy 1U 19" rack mountable metal housing with mounting brackets included. These high power PoE++ switches also offer SFP slots for long distance fiber network applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's unmanaged high power PoE++ switches by delivering up to 95W per port of PoE++ power and data over existing Ethernet cables. Easily network PoE devices such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, access controls, and more with these high power PoE++ switches.
Producent
Productnummer
2979320
Model
TPE-BG102G
EAN
0710931161830
Naar de website van de producent
Switch type
Unmanaged
Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Netwerkstandaard
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Full duplex
Ja
Half-duplex
Ja
MAC-adrestabel
8000 entries
Switchingcapaciteit
20 Gbit/s
Verzending snelheid
14,88 Mpps
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Rack-montage
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Ja
Mean time between failures (MTBF)
427588 uur
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4
Vermogen per poort Power over Ethernet (PoE)
95 W
Totaal Power over Ethernet (PoE)-budget
240 W
Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Breedte
330 mm
Diepte
230 mm
Hoogte
44 mm
Gewicht
1,7 kg
Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja
Certificering
CE, FCC, ETL
Code geharmoniseerd systeem (HS)
85176990
Beheerfuncties
Switch type
Unmanaged
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
8
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Netwerk
Netwerkstandaard
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support
Nee
Full duplex
Ja
Half-duplex
Ja
Data-uitwisseling
MAC-adrestabel
8000 entries
Switchingcapaciteit
20 Gbit/s
Verzending snelheid
14,88 Mpps
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Design
Rack-montage
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Ja
Prestatie
Mean time between failures (MTBF)
427588 uur
Energie
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4
Vermogen per poort Power over Ethernet (PoE)
95 W
Totaal Power over Ethernet (PoE)-budget
240 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Gewicht en omvang
Breedte
330 mm
Diepte
230 mm
Hoogte
44 mm
Gewicht
1,7 kg
Inhoud van de verpakking
Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja
Certificaten
Certificering
CE, FCC, ETL
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
