Productnummer: 2637909

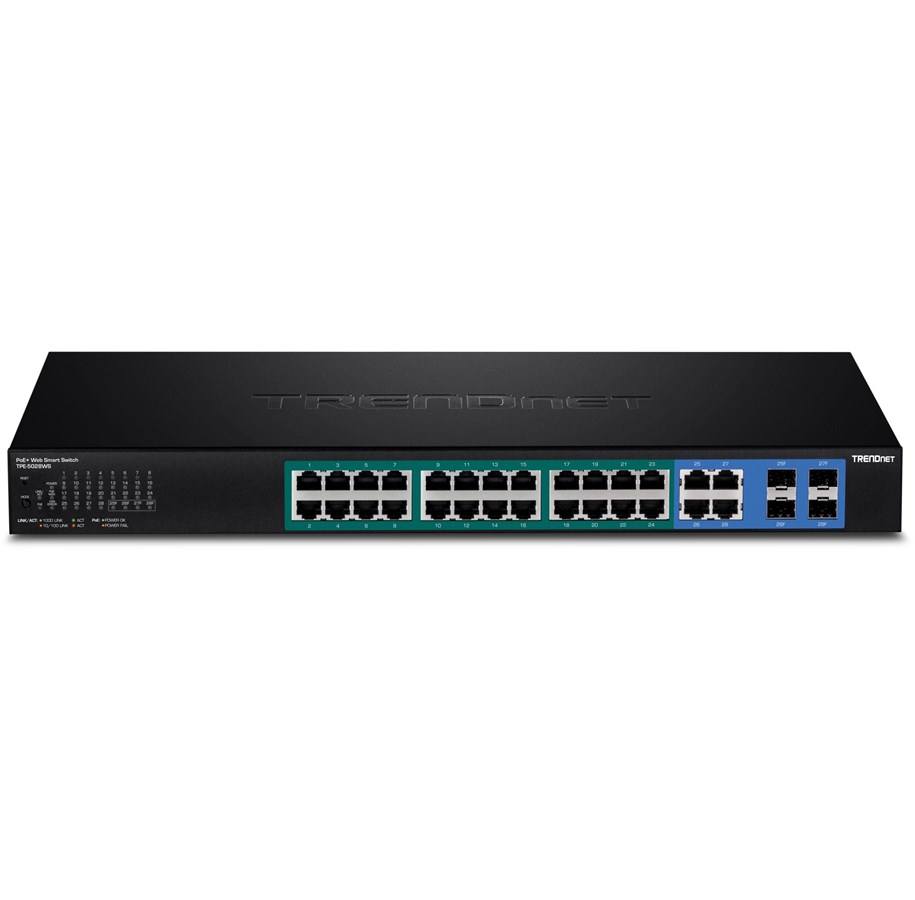

TRENDnet TPE-5028WS 28-Port Gigabit Web Smart PoE+

Switch, intelligent, 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP-combinatie, desktop, rack-uitvoering, PoE+ (370 W), 100, 240 V wisselstroom, TAA Compliant

429,30 € 354,79 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 5 - 6 werkdagen levertijd

TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

TRENDnet's web smart managed switches also feature SFP slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart PoE+ Managed Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost.

Producent
Productnummer
2637909
Model
TPE-5028WS
EAN
710931161182
Naar de website van de producent
Switch type
Managed
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
MIB-ondersteuning
IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB
Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
4
Netstekker
DC-in ingang
Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN
MAC-adrestabel
8000 entries
Switchingcapaciteit
56 Gbit/s
Verzending snelheid
41,7 Mpps
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
4,1 MB
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
HTTPS, SNMP, SSL/TLS
MAC adres filtering
Ja
Multicast-ondersteuning
Ja
Multicast MAC adrestabel
256 entries
Rack-montage
Ja
Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Lineaire lagedichtheidpolyetheen (LLDPE)
LED-indicatoren
Ja
Aantal ventilatoren
2 ventilator(en)
Compatibele besturingssystemen
Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Geluidsniveau
52 dB
Mean time between failures (MTBF)
277,604 uur
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
30 W
Vermogensverbruik (max)
446 W
Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Totaal Power over Ethernet (PoE)-budget
370 W
Bedrijfstemperatuur (T-T)
-5 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Breedte
440 mm
Diepte
250 mm
Hoogte
44 mm
Gewicht
3,92 kg
Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja
Ondersteunings-cd
Ja
Certificering
CE, FCC
Code geharmoniseerd systeem (HS)
85176990

Beheerfuncties

Switch type
Managed
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
MIB-ondersteuning
IP FORWARD TABLE MIB RFC 1354, RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, IGMP SNOOPING MIB RFC 2933, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIB, IPV6 NEIGHBOR MIB, SNTP MIB, STORM CTRL MIB, STATISTICS MIB, Tool MIB, VOICE VLAN MIB, DOS MIB

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten
24
Type basis-switching RJ-45 Ethernet-poorten
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
4
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN

Data-uitwisseling

MAC-adrestabel
8000 entries
Switchingcapaciteit
56 Gbit/s
Verzending snelheid
41,7 Mpps
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
4,1 MB

Beveiliging

Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
HTTPS, SNMP, SSL/TLS
MAC adres filtering
Ja

Multicast-functies

Multicast-ondersteuning
Ja
Multicast MAC adrestabel
256 entries

Design

Rack-montage
Ja
Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Lineaire lagedichtheidpolyetheen (LLDPE)
LED-indicatoren
Ja
Aantal ventilatoren
2 ventilator(en)

Prestatie

Compatibele besturingssystemen
Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Geluidsniveau
52 dB
Mean time between failures (MTBF)
277,604 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
30 W
Vermogensverbruik (max)
446 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Totaal Power over Ethernet (PoE)-budget
370 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
440 mm
Diepte
250 mm
Hoogte
44 mm
Gewicht
3,92 kg

Inhoud van de verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja

Verpakking

Ondersteunings-cd
Ja

Certificaten

Certificering
CE, FCC

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
