Productnummer: 3238102

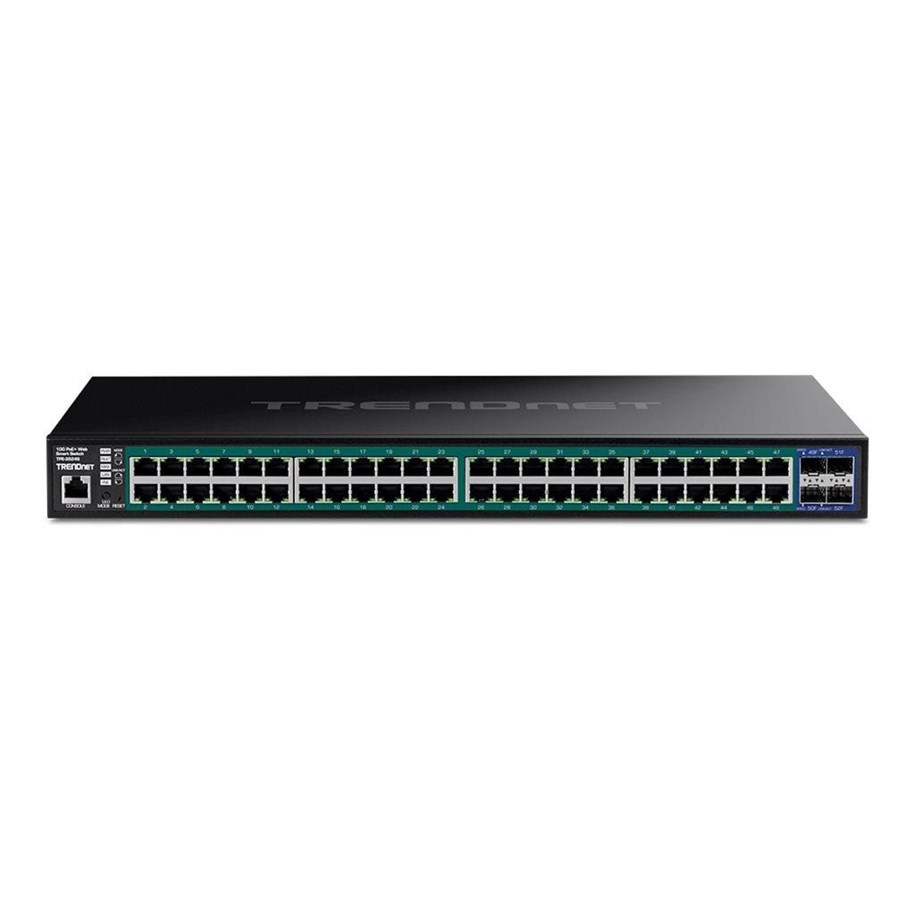

TRENDnet TPE-3524S 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ Slots
Switch, 52-port, web, L2+, intelligent, 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, desktop, rack-uitvoering, PoE+ (410 W), TAA Compliant
663,65 €
548,47 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
TRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524S, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also features 10G SFP+ ports to support long-distance fiber networking applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also features 10G SFP+ ports to support long-distance fiber networking applications.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
Producent
Productnummer
3238102
Model
TPE-3524S
EAN
0710931162509
Naar de website van de producent
Productbeschrijving
TRENDnet TPE-3524S - switch - 52-port, web - 52 poorten - intelligent - rack-uitvoering - TAA Compliant
Type apparaat
Switch - 52 poorten - L2+ - intelligent
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
410 W
Prestaties
Omschakelcapaciteit: 176 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 130.95 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 130.95 Mpps
Capaciteit
VLAN groepen: 256
ARP-tabel: tot 128
ARP-tabel: tot 128
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
9KB
Protocol voor beheer op afstand
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
Voorzieningen
DHCP-ondersteuning, VLAN-ondersteuning, IGMP-spionage, IPv6-ondersteuning, volledige duplex modus, DHCP-spionage, QoS, MLD spionage, bescherming tegen overspanning, bescherming tegen kortsluiting, GVRP, statische routing, SP, DoS, bandbreedtecontrole per poort, ondersteuning DSCP, ondersteuning voor dubbele beelden, Static Link Aggregation, Voice VLAN, Private VLAN, IGMP snel verlaten, Inter-VLAN Routing, WRR, lusdetectie, blokkering onbekende multicast, beheer via het web, Smart Fans, MAC-Port Binding, LLDP-MED, HoL-blokkeringspreventie
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Stroom
100-240 Volt wisselstroom V (50/60 Hz)
Afmetingen (BxDxH)
44 cm x 31 cm x 4.4 cm
Gewicht
4.745 kg
Conform TAA
Ja
Algemeen
Type apparaat
Switch - 52 poorten - L2+ - intelligent
Type bijvoegsel
Desktop, rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
410 W
Prestaties
Omschakelcapaciteit: 176 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 130.95 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 130.95 Mpps
Capaciteit
VLAN groepen: 256
ARP-tabel: tot 128
ARP-tabel: tot 128
MAC-adrestabelgrootte
32K invoergegevens
Jumbo Frame-ondersteuning
9KB
Protocol voor beheer op afstand
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
Encryptie-algoritme
TLS, SSL 3.0, SSL 2.0
Authentificatiemethode
RADIUS, TACACS+
Voorzieningen
DHCP-ondersteuning, VLAN-ondersteuning, IGMP-spionage, IPv6-ondersteuning, volledige duplex modus, DHCP-spionage, QoS, MLD spionage, bescherming tegen overspanning, bescherming tegen kortsluiting, GVRP, statische routing, SP, DoS, bandbreedtecontrole per poort, ondersteuning DSCP, ondersteuning voor dubbele beelden, Static Link Aggregation, Voice VLAN, Private VLAN, IGMP snel verlaten, Inter-VLAN Routing, WRR, lusdetectie, blokkering onbekende multicast, beheer via het web, Smart Fans, MAC-Port Binding, LLDP-MED, HoL-blokkeringspreventie
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Ingebouwde apparaten
3 x ventilators
Statuslampjes
Status
Uitbreiding / Aansluiting
Interfaces
48 x 1000Base-T RJ-45 PoE+ - 30 W
4 x 10Gbit LAN SFP+
1 x console RJ-45
4 x 10Gbit LAN SFP+
1 x console RJ-45
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
100-240 Volt wisselstroom V (50/60 Hz)
Diversen
Meegeleverde accessoires
Power cable (1.5 m)
Kabels meegeleverd
1 x consolekabel - 1 m
Rackmontagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
74,330 uur
Conformiteitsnormen
UL, FCC, NDAA
Conform TAA
Ja
Afmetingen & gewicht
Breedte
44 cm
Diepte
31 cm
Hoogte
4.4 cm
Gewicht
4.745 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Beperkte garantie - voeding en ventilatoren - 1 jaar
Beperkte garantie - voeding en ventilatoren - 1 jaar
Omgevingsparameters
Min. gebruikstemperatuur
0 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
95% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
