Productnummer: 2979322

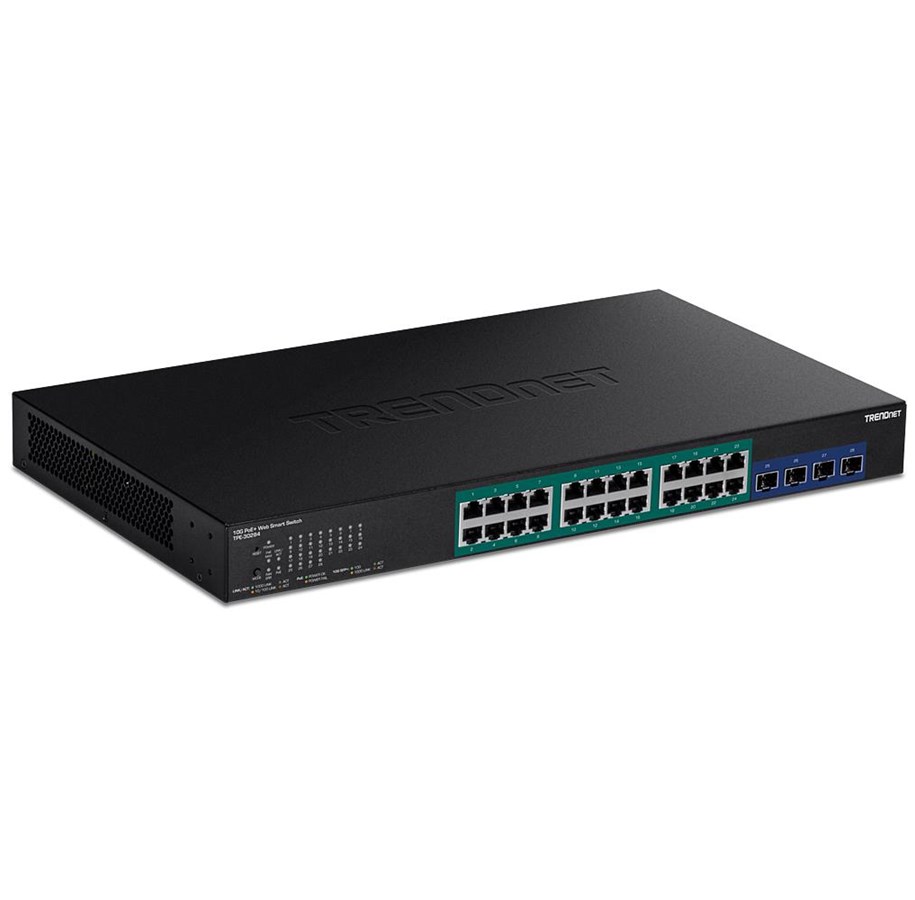

TRENDnet TPE-30284 28-Port Gigabit Web Smart PoE+ Switch
Switch, intelligent, 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, rack-uitvoering, PoE+ (370 W), 100, 240 V wisselstroom, TAA Compliant
414,90 €
342,89 € excl. BTW
Goedkoopste privé verzending 6,99 €
Extern magazijn, 4 - 5 werkdagen levertijd
TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature. Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ slots to support long-distance fiber networking applications. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30 W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more. Easily manage and configure TRENDnet's Web Smart PoE+ Managed Switch Series remotely by updating switches to the firmware for access to TRENDnet Hive. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on these cloud managed switches with TRENDnet's reliable cloud service.
Producent
Productnummer
2979322
Model
TPE-30284
EAN
0710931161878
Naar de website van de producent
Productbeschrijving
TRENDnet TPE 30284 - switch - 28 poorten - intelligent - rack-uitvoering - TAA Compliant
Type apparaat
Switch - 28 poorten - intelligent
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
370 W
Prestaties
Omschakelcapaciteit: 128 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 95.2 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 95.2 Mpps
Capaciteit
VLAN groepen: 256
MAC-adrestabelgrootte
16K invoergegevens
Jumbo Frame-ondersteuning
12KB
Routingprotocol
IGMPv2, IGMP, IGMPv3
Protocol voor beheer op afstand
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Voorzieningen
DHCP-ondersteuning, VLAN-ondersteuning, IGMP-spionage, Syslog-ondersteuning, gespiegelde poorten, MAC adresfiltering, IPv6-ondersteuning, half duplex modus, volledige duplex modus, SNTP-ondersteuning, STP-ondersteuning, ondersteuning RSTP, VCT-technologie, MSTP-ondersteuning, DHCP-spionage, ACL-ondersteuning, QoS, MLD spionage, LLDP ondersteuning, LACP, Traffic Control, SNMP trap, MIB, GVRP, CoS, SP, gemerkte VLAN, DoS, bandbreedtecontrole per poort, 2 ventilatoren, 1,5 MB pakketbuffer, Storm Control, poortfiltering, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, WRR, HOL Blocking Prevention, lusdetectie
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Stroom
100 - 240 V wisselstroom (50/60 Hz)
Afmetingen (BxDxH)
44 cm x 24.9 cm x 4.4 cm
Gewicht
3.94 kg
Conform TAA
Ja
Algemeen
Type apparaat
Switch - 28 poorten - intelligent
Type bijvoegsel
Rack-uitvoering 1U
Subtype
Gigabit Ethernet
Poorten
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Voeding via ethernet (Power Over Ethernet, PoE)
PoE+
PoE-budget
370 W
Prestaties
Omschakelcapaciteit: 128 Gbps
Doorschakelvermogen (64 byte pakketgrootte): 95.2 Mpps
Doorschakelvermogen (64 byte pakketgrootte): 95.2 Mpps
Capaciteit
VLAN groepen: 256
MAC-adrestabelgrootte
16K invoergegevens
Jumbo Frame-ondersteuning
12KB
Routingprotocol
IGMPv2, IGMP, IGMPv3
Protocol voor beheer op afstand
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Encryptie-algoritme
TLS, SSL 3.0, SSL 2.0
Authentificatiemethode
RADIUS, TACACS+
Voorzieningen
DHCP-ondersteuning, VLAN-ondersteuning, IGMP-spionage, Syslog-ondersteuning, gespiegelde poorten, MAC adresfiltering, IPv6-ondersteuning, half duplex modus, volledige duplex modus, SNTP-ondersteuning, STP-ondersteuning, ondersteuning RSTP, VCT-technologie, MSTP-ondersteuning, DHCP-spionage, ACL-ondersteuning, QoS, MLD spionage, LLDP ondersteuning, LACP, Traffic Control, SNMP trap, MIB, GVRP, CoS, SP, gemerkte VLAN, DoS, bandbreedtecontrole per poort, 2 ventilatoren, 1,5 MB pakketbuffer, Storm Control, poortfiltering, Static Link Aggregation, Voice VLAN, LLDP-MED, Private VLAN, WRR, HOL Blocking Prevention, lusdetectie
Conformiteitsnormen
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Uitbreiding / Aansluiting
Interfaces
24 x 1000Base-T RJ-45 PoE+
4 x 10Gbit LAN SFP+
4 x 10Gbit LAN SFP+
Stroom
Voeding
Interne stroomvoorziening
Vereiste netspanning
100 - 240 V wisselstroom (50/60 Hz)
Energieverbruik tijdens gebruik
23.7 Watt
Diversen
Rackmontagekit
Inclusief
MTBF (gemiddelde tijd tussen twee storingen)
287,724 uur
Conformiteitsnormen
UL, FCC
Conform TAA
Ja
Afmetingen & gewicht
Breedte
44 cm
Diepte
24.9 cm
Hoogte
4.4 cm
Gewicht
3.94 kg
Garantie van de fabrikant
Service & Support
Beperkte garantie - levenslang
Omgevingsparameters
Min. gebruikstemperatuur
-5 °C
Max. gebruikstemperatuur
50 °C
Luchtvochtigheidsgraad bij gebruik
95% (niet-condenserend)
Bovenstaande specificaties en vermeldingen kunnen zonder voorafgaande kennisgeving door de fabrikant worden gewijzigd. Sommige teksten kunnen automatisch of machinaal zijn gegenereerd en daardoor misleidende teksten opleveren.
